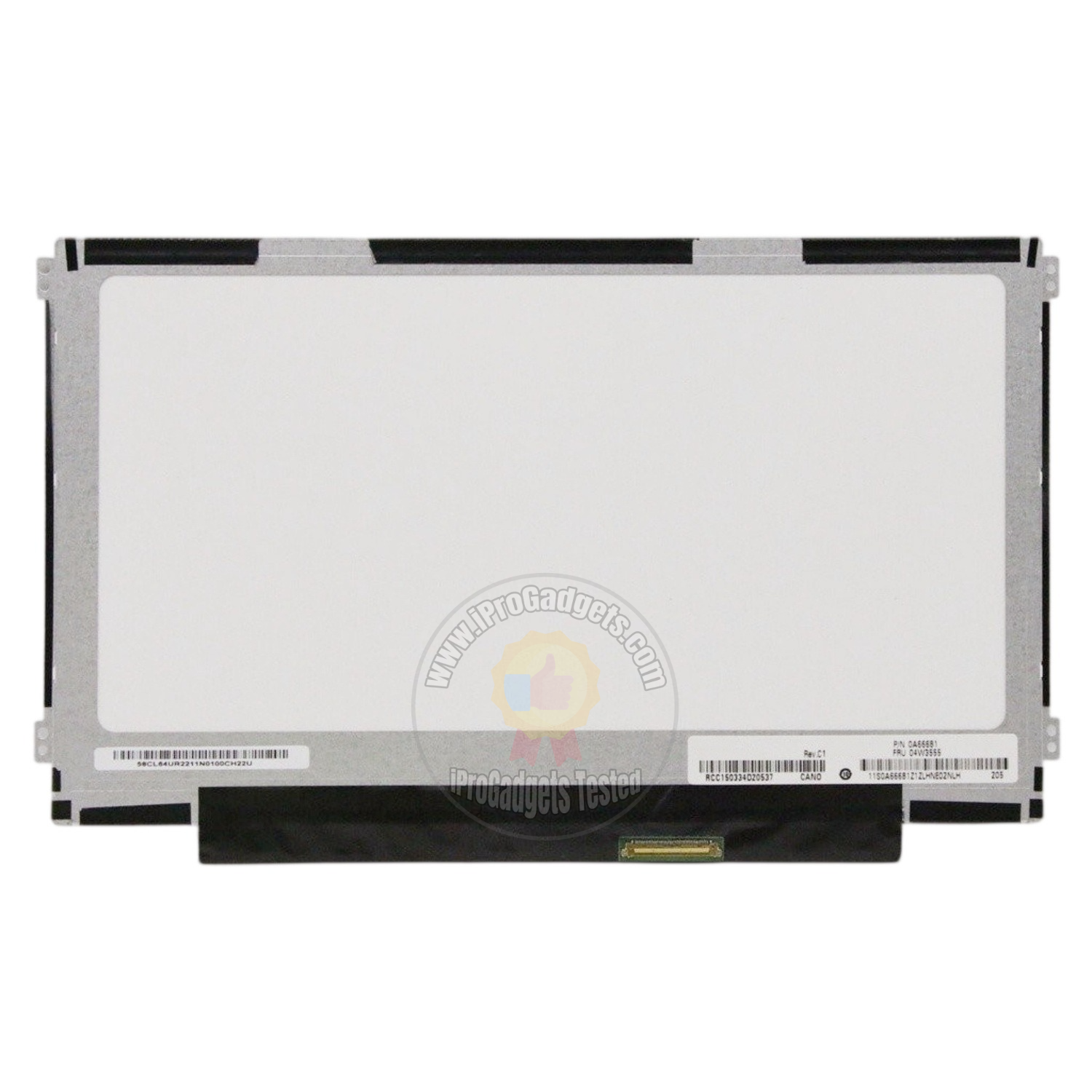

Replacement LCD Screen Display For LTN116AT07-401 LTN116AT07-301 11.6 inch HD 1366x768 40 Pin Panel
iProGadgets OEM Repair Parts for LTN116AT07-401 LTN116AT07-301 11.6 inch HD 1366x768 40 Pin Laptop Screen Replacement — Quick Answers

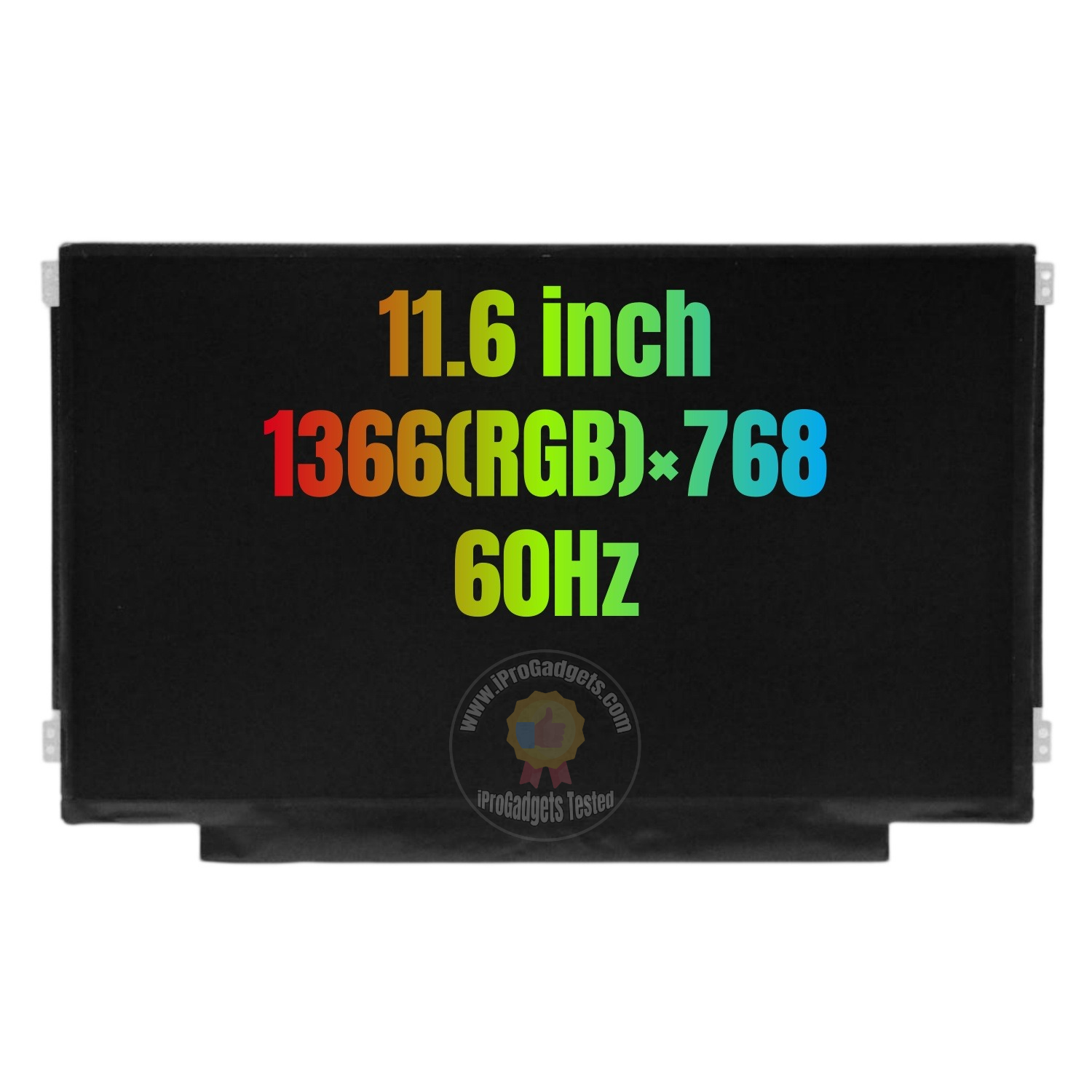

Quick answer: this is a replacement display panel for the LTN116AT07-401 and LTN116AT07-301 — 11.6″, TN LCD, 1366 x 768 px (WXGA HD), 60 Hz, 200 cd/m², 300:1 contrast, matte anti-glare, 40-pin LVDS with the connector at the bottom right, non-touch, double tested before shipping and backed by a 30-day return window on unused, uninstalled parts. These are two internal codes for one panel, and the factory application for this panel is the Lenovo IdeaPad S210 / S210 Touch and S215 / S215 Touch families — it is also used in some HP 11-e machines. The same panel is also sold under the codes LTN116AT07-H01 and plain LTN116AT07; a small number of listings call the connector eDP rather than LVDS, so check the FAQ and the marking on your own screen if you want to be certain.
- Fit: Compatible with the Lenovo IdeaPad S210 and S215 families, including the Touch variants, and with the HP 11-e machines that use the same panel. The panel is also known as LTN116AT07-H01 and carries cross-referenced codes including B116XW03-V.0. Send us the machine model or a photo of the label on the back of the screen and we will confirm the fitment before dispatch
- Panel: TN LCD, non-touch, matte anti-glare, 40-pin LVDS
- Testing: every unit is double tested before shipping — display, backlight and fitment
Technical Specifications
| Item | Detail |
|---|---|
| Panel codes covered | For the LTN116AT07-401 and LTN116AT07-301. The same panel is also sold as LTN116AT07-H01 and as plain LTN116AT07 — four codes, one panel |
| Machine types | For the Lenovo IdeaPad S210 / S210 Touch and S215 / S215 Touch families, which is the factory application for this panel; also for the HP 11-e machines that use it |
| Screen size | 11.6 inches diagonal |
| Resolution | 1366 x 768 px (WXGA HD) |
| Refresh rate | 60Hz |
| Pixel density | 135 ppi |
| Aspect ratio | 16:9 |
| Pixel arrangement | RGB vertical stripe |
| Panel technology | a-Si TFT-LCD, LCM, TN, normally white, transmissive, 6 o'clock viewing direction |
| Brightness | 200 cd/m² (typical) |
| Contrast ratio | 300:1 (typical, TM) |
| Viewing angle | 45 / 45 / 15 / 35 (typical, CR>=10) |
| Colour | 262K colours (6-bit), 45% NTSC |
| Response time | 16 ms (typical, Tr+Td) |
| Surface | Matte (anti-glare) with haze 25% and 3H hard coating |
| Backlight | WLED (White LED), edge-lit, 9S3P, 15,000 hours rated, LED driver included |
| Signal interface | LVDS, 1 channel, 6-bit, 40-pin, 0.5 mm pitch, 3.3V |
| Connector position | Bottom right, viewed from the back of the screen |
| Connector width | 25 mm class wide connector (0.5 mm pitch, 40-pin) |
| Frame profile | Flat (PCBA flat, thickness 3.4 to 4.0 mm) |
| Active area | 256.125 x 144 mm |
| Pixel pitch | 0.1875 x 0.1875 mm |
| Weight | 207 g typical, 235 g maximum |
| Touch | Display-only panel (no touch layer) |
| Interface note | Most panel databases and repair sellers list this panel as 40-pin LVDS, which is what this listing ships. A small number of listings label the same part as eDP — if your screen is marked differently, send us a photo before ordering |
| Related codes sometimes listed with this panel | LTN116AT07-H01, LTN116AT07, B116XW03-V.0, 6JED118175, CCHJL02E26Q0K7, LJ96-05957A, Y145141STENR1076 |
| Condition | Brand-new, unassembled |
| Quality | iProGadgets OEM Quality |
Compatibility
| Device | Model numbers / part codes |
|---|---|
| For Lenovo IdeaPad S210 | S210, S210 Touch |
| For Lenovo IdeaPad S215 | S215, S215 Touch |
| For HP | For HP 11-e series, including 11-e-ae |
| Panel codes | LTN116AT07-401, LTN116AT07-301, LTN116AT07-H01, LTN116AT07, B116XW03-V.0 |
| Where to confirm fitment | Send the machine model, or a photo of the label on the back of the screen you are removing — we will check it against our stock before dispatch |
Before We Ship — Please Send Us These 3 Details
Laptop, all-in-one and desktop PC screens can differ between revisions of the same model, so the listing alone cannot always tell us which panel is inside your machine. After you place the order we will contact you for the three items below — please send them so we can confirm the fitment and ship the correct, fully compatible screen straight away:
- A photo of your computer. A clear photo of the laptop itself, plus the model / service label on the bottom cover (or the model name shown in Settings → About).
- Touch or non-touch, resolution and refresh rate. Tell us whether your screen is a touch screen or a non-touch screen, its resolution, and its refresh rate in Hz. If you are not sure, just send the model number and we will check it for you.
- Photos of your old screen. Once the machine is opened, a full photo of the back of the old screen and a close-up of the label or barcode sticker on it. That label carries the exact panel part number, which removes any doubt about which screen you need.
We check your photos against our stock before dispatch. If something does not match, we will contact you first instead of sending a part that may not fit. Once your details are confirmed, we arrange shipment within 1 to 3 business days. Thank you for helping us get it right.
Installation Notes
- Clean the flex cable with alcohol before installation and confirm that it is well connected.
- Do not pull, tear or push on the flex cable, be careful during installation.
- Before installing the screen, please remove the battery in advance.
- Please tap the screen carefully, because the screen is too fragile to damage.
Quality Control
Strictly tested by the iProGadgets QC Team — every unit is double tested before shipping and ships in good working order. After receiving the part, please check the appearance and test it first: connect the new part to the motherboard for a functional test before full installation, and only install once everything works. We are not responsible for any installation mistakes — if you are not experienced with screen replacement, have the part fitted by a professional repair shop.
Shipping
We ship worldwide. Orders are dispatched within 1 to 3 business days, and every package carries a tracking number you can follow on the order page. Delivery typically takes 7 to 10 days after dispatch.
Returns & Warranty
30-day returns on unused, uninstalled parts. The warranty is valid until installed — once a screen has been fitted, the return window no longer applies, which is why we ask you to test before installation.
FAQs
What is the difference between LTN116AT07-401, LTN116AT07-301 and LTN116AT07-H01?
Nothing that affects your repair. panel family record groups all four codes of the LTN116AT07 series together — every one of them is 11.6″, 1366 x 768, 6-bit, LVDS, WLED, 262K colours. They are internal codes for the same physical panel, and retailers list them as interchangeable. We ship whichever is in stock; if you need a specific code, put it in the order notes and we will confirm before dispatch.
Is this panel LVDS or eDP?
Most sources say 40-pin LVDS — the panel databases, the repair sellers and the connector width (0.5 mm pitch, 25 mm class) all point that way, and that is what we ship. A few listings label the same part as eDP, which is why you may see both. The two standards are not interchangeable, so if the marking on your own screen says eDP, or the connector looks different from a standard LVDS socket, send us a photo of the back of the screen and the label and we will confirm what you need before dispatch.
How do I confirm the right screen before ordering?
Three checks on the label of the screen you are removing. Resolution — 1366 x 768. Size — 11.6 inches. Connector — a 40-pin socket at the bottom right. If your screen is a touch panel, it is a different part — this is the non-touch display only, and the S210 Touch / S215 Touch machines take the touch version. If you are unsure, send us a photo of the back of the screen and the label plus the machine model, and we will confirm before shipping.
Is this a touch screen, and what else is in the box?
This is the non-touch display panel only — no touch layer, no digitizer, no bezel, no hinges, no screws and no LVDS cable. The cable is not included because on most repairs it stays with the machine and is undamaged. If you need a cable, a bezel or a full touch assembly, send us a photo of your machine's screen area and we will tell you which additional parts fit.
Questions about fit, shipping to your country, or bulk pricing? Email sales@iProGadget.com and we will confirm the exact part you need.
Frequently Asked Questions
Is this part compatible with my device?
This listing is for Replacement LCD Screen Display For LTN116AT07-401 LTN116AT07-301 11.6 inch HD 1366x768 40 Pin Panel. It is built as a direct-fit replacement for the model named in the title. Match the model number in the title against your own device before ordering. If you are not sure which version you need, email sales@iProGadget.com and we will confirm the correct part for you.
What is the quality of these replacement parts?
We supply iProGadgets OEM Quality / Premium Compatible replacement parts. Every part is manufactured to OEM specifications, so the fit, finish and function match the original component it replaces, and each unit is individually tested before it leaves our warehouse.
Is the part tested before it is shipped?
Yes. Every part we sell is inspected before dispatch and tested wherever testing applies — screen assemblies are checked on the panel, the touch response and the connector. Orders are processed and shipped within 1-3 business days after payment is confirmed.
How long does shipping take?
Orders leave our warehouse within 1-3 business days. Express Shipping (DHL, UPS or FedEx) takes 5-8 working days and is normally used for parcels over 2 kg. Registered Air Post takes 10-20 working days and is normally used for parcels under 2 kg. Every order ships with a tracking number. Customs clearance can add extra time, especially during peak season.
Will I be charged import duties or customs fees?
Customs charges depend on your own country's import rules and its de minimis threshold, not on the seller. Some destinations apply no duty at all on lower-value parcels, and where duty or VAT does apply it is collected by your local post office or courier before delivery. We ship every order with complete and accurate commercial documents, which is what keeps a parcel moving through customs instead of sitting in it. If you would like to estimate the charges before you order, email us your country and we will point you to the right authority.
What is your return policy?
We offer a 30-day return policy, which means you can request a return within 30 days of receiving your item. To be eligible, the item must be unused, uninstalled and in the packaging it arrived in. Once a part has been fitted, bonded or used it cannot be returned, so please test the part before installation. To start a return, email sales@iProGadget.com.
What should I do if the part arrives damaged or faulty?
Inspect your order as soon as it arrives. If an item is defective, damaged or not what you ordered, contact us at sales@iProGadget.com straight away with photos or a short unboxing video, and we will arrange a replacement or a refund.
Do you provide repair guides or installation tutorials?
No. We are a supplier of replacement parts only. We are not a repair shop, and we do not provide repair guides, tutorials or step-by-step installation support. Every part we sell is intended to be installed by a professional technician at a qualified repair shop, which also gives the best result: a technician can transfer the small components, handle the adhesives and test the finished repair. Please do not attempt the installation yourself if you have no previous repair experience, as these assemblies are fragile and incorrect handling can damage them permanently. We sell parts only and do not accept responsibility for installation carried out by the customer. Our warranty covers the part itself and remains valid until the part is installed. If a problem appears after the repair, please take the device back to the repair shop that fitted the part so they can inspect the installation and test the device.
Still have a question about this part? Email us at sales@iProGadget.com and we will confirm compatibility, shipping time or return details for you.
