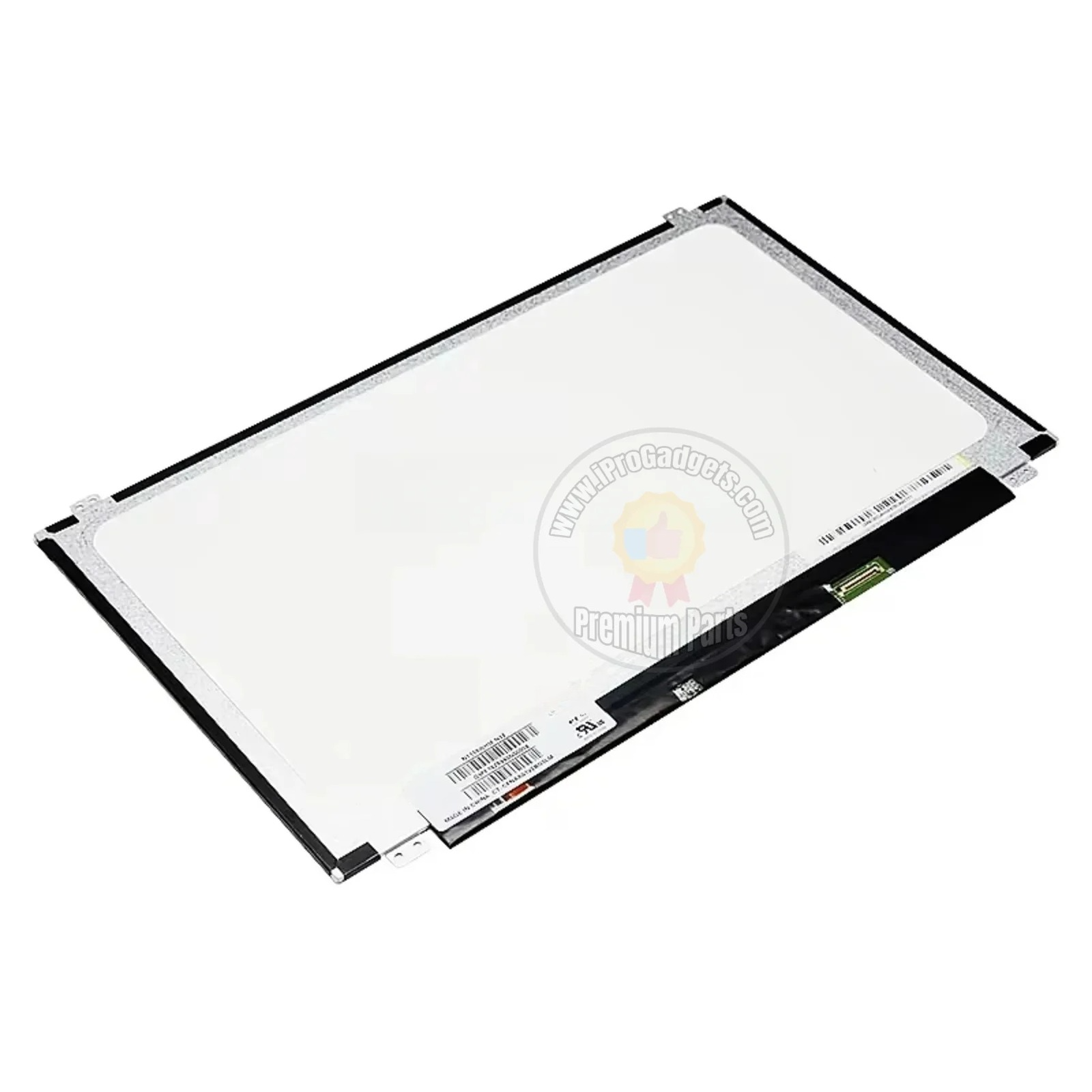

Replacement LCD Screen Display For 768135-001 15.6 inch HD 1366x768 30 Pin Panel
iProGadgets OEM Repair Parts for 768135-001 15.6 inch HD 1366x768 30 Pin Laptop Screen Replacement — Quick Answers
Quick answer: this is a replacement display panel for the HP ProBook 450 G2 and 455 G2 (part code 768135-001) — 15.6″, TN LCD, 1366 x 768 px (WXGA HD), 60 Hz, 200 cd/m², 500:1 contrast, matte, 30-pin eDP with the connector at the bottom right, non-touch, double tested before shipping and backed by a 30-day return window on unused, uninstalled parts. Two things to check before you order. First, this is the HD 1366 x 768 panel — the ProBook 450 G2 and 455 G2 were also offered with a slim Full HD screen on a different connector, which is a different part. Second, this is the narrow 30-pin version, not the wider-socket panel that most 15.6-inch replacements use — a 15.6-inch screen with the same resolution and a different connector will not plug in. If your current screen responds to touch, it is the touch version and this is not the right part.
- Fit: Compatible with the HP ProBook 450 G2 and ProBook 455 G2 that use the 15.6″ HD 1366 x 768 flat panel. Send us the machine model or a photo of the label on the back of the screen and we will confirm the fitment before dispatch
- Panel: TN LCD, non-touch, matte, 30-pin eDP
- Testing: every unit is double tested before shipping — display, backlight and fitment
Technical Specifications
| Item | Detail |
|---|---|
| Service part number | For HP 768135-001 |
| Machine types | For the HP ProBook 450 G2 and ProBook 455 G2, in the HD 1366 x 768 configuration |
| Screen size | 15.6 inches diagonal |
| Resolution | 1366 x 768 px (WXGA HD) |
| Refresh rate | 60Hz |
| Pixel density | 100 ppi |
| Aspect ratio | 16:9 |
| Pixel format | RGB vertical stripe |
| Panel technology | a-Si TFT-LCD, LCM, TN, normally white, transmissive, 6 o'clock best view |
| Brightness | 200 cd/m² (typical) — from HP, 200 nits is the quoted figure for this panel |
| Contrast ratio | 500:1 (typical, TM) |
| Viewing angle | 45 / 45 / 20 / 40 (typical, CR>=10) |
| Colour | 262K colours (6-bit), 45% NTSC |
| Response time | 12 ms (typical, Tr+Td) |
| Surface | Matte (anti-glare, haze 0%) |
| Backlight | WLED (White LED), 9S4P, 15,000 hours rated, LED driver included |
| Signal interface | eDP, 1 lane, eDP 1.2, RBR (1.62G/lane), 30-pin, 3.3V |
| Connector position | Bottom right, viewed from the back of the screen |
| Frame profile | Flat / medium thickness (PCBA straight, 3.4 to 4.0 mm) — from HP, this is the flat 3.8 mm option |
| Active area | 344.232 x 193.536 mm |
| Touch | Display-only panel (no touch layer) |
| NOT the Full HD panel | The ProBook 450 G2 and 455 G2 were also offered with a slim 1920 x 1080 300-nit panel. That is a different part and is not covered by this listing |
| NOT the touch panel | For the HP ProBook 450 G2 and 455 G2, this same 15.6″ HD 1366 x 768 200-nit panel was also offered with a touch layer. That version is a different assembly and is not covered by this listing |
| Condition | Brand-new, unassembled |
| Quality | iProGadgets OEM Quality |
Compatibility
| Device | Model numbers / part codes |
|---|---|
| For HP ProBook 450 G2 | 15.6" HD 1366x768 flat panel configuration |
| For HP ProBook 455 G2 | 15.6" HD 1366x768 flat panel configuration |
| For HP service part number | 768135-001 |
Before We Ship — Please Send Us These 3 Details
Laptop, all-in-one and desktop PC screens can differ between revisions of the same model, so the listing alone cannot always tell us which panel is inside your machine. After you place the order we will contact you for the three items below — please send them so we can confirm the fitment and ship the correct, fully compatible screen straight away:
- A photo of your computer. A clear photo of the laptop itself, plus the model / service label on the bottom cover (or the model name shown in Settings → About).
- Touch or non-touch, resolution and refresh rate. Tell us whether your screen is a touch screen or a non-touch screen, its resolution, and its refresh rate in Hz. If you are not sure, just send the model number and we will check it for you.
- Photos of your old screen. Once the machine is opened, a full photo of the back of the old screen and a close-up of the label or barcode sticker on it. That label carries the exact panel part number, which removes any doubt about which screen you need.
We check your photos against our stock before dispatch. If something does not match, we will contact you first instead of sending a part that may not fit. Once your details are confirmed, we arrange shipment within 1 to 3 business days. Thank you for helping us get it right.
Installation Notes
- Clean the flex cable with alcohol before installation and confirm that it is well connected.
- Do not pull, tear or push on the flex cable, be careful during installation.
- Before installing the screen, please remove the battery in advance.
- Please tap the screen carefully, because the screen is too fragile to damage.
Quality Control
Strictly tested by the iProGadgets QC Team — every unit is double tested before shipping and ships in good working order. After receiving the part, please check the appearance and test it first: connect the new part to the motherboard for a functional test before full installation, and only install once everything works. We are not responsible for any installation mistakes — if you are not experienced with screen replacement, have the part fitted by a professional repair shop.
Shipping
We ship worldwide. Orders are dispatched within 1 to 3 business days, and every package carries a tracking number you can follow on the order page. Delivery typically takes 7 to 10 days after dispatch.
Returns & Warranty
30-day returns on unused, uninstalled parts. The warranty is valid until installed — once a screen has been fitted, the return window no longer applies, which is why we ask you to test before installation.
FAQs
Is this a 40-pin screen? It is 15.6 inches, so I expected the usual connector.
No — this one is 30-pin, and that is the single most common reason this screen gets returned. Most 15.6-inch laptop panels use a 40-pin socket; the ProBook 450 G2 and 455 G2 flat HD panel uses a 30-pin eDP socket at the bottom right. The size and the resolution are identical on both, so the connector is the only way to tell them apart. Count the pins in the socket on the back of your current screen, or send us a photo of it, before ordering.
Is this the Full HD version? The model I have lists 1920 x 1080.
This listing is the HD 1366 x 768 version, which is what HP's own guide specifies for the flat 3.8 mm panel on these machines. HP also offered a slim 1920 x 1080 300-nit panel for the same laptops, and the two are not interchangeable. Check the resolution on the label of the screen you are removing: if it reads 1920 x 1080, this is the wrong panel and you need the slim Full HD version instead.
Is this screen matte or glossy?
The panel manufacturer lists this panel as matte anti-glare, and that is what we ship. You may see the same part number offered as glossy by some sellers — the anti-glare coating on this panel carries no haze filter, so the two descriptions circulate for the same part. If the finish matters to you, check the label on your current screen and mention it in your order notes so we can confirm what we can send. Resolution, connector and fitment are identical either way.
Is this a touch screen, and what else is in the box?
This is the non-touch display panel only — no touch layer, no digitizer, no bezel, no hinges, no screws, no eDP cable and no WLAN antenna. HP ships every display assembly with one or two wireless antennas, but on a screen-only repair the antennas already fitted in the machine stay in place, so they are not part of this listing. If your screen responds to finger input, this is the wrong part — send us the label code and we will tell you what you need.
Questions about fit, shipping to your country, or bulk pricing? Email sales@iProGadget.com and we will confirm the exact part you need.
Frequently Asked Questions
Is this part compatible with my device?
This listing is for Replacement LCD Screen Display For 768135-001 15.6 inch HD 1366x768 30 Pin Panel. It is built as a direct-fit replacement for the model named in the title. Match the model number in the title against your own device before ordering. If you are not sure which version you need, email sales@iProGadget.com and we will confirm the correct part for you.
What is the quality of these replacement parts?
We supply iProGadgets OEM Quality / Premium Compatible replacement parts. Every part is manufactured to OEM specifications, so the fit, finish and function match the original component it replaces, and each unit is individually tested before it leaves our warehouse.
Is the part tested before it is shipped?
Yes. Every part we sell is inspected before dispatch and tested wherever testing applies — screen assemblies are checked on the panel, the touch response and the connector. Orders are processed and shipped within 1-3 business days after payment is confirmed.
How long does shipping take?
Orders leave our warehouse within 1-3 business days. Express Shipping (DHL, UPS or FedEx) takes 5-8 working days and is normally used for parcels over 2 kg. Registered Air Post takes 10-20 working days and is normally used for parcels under 2 kg. Every order ships with a tracking number. Customs clearance can add extra time, especially during peak season.
Will I be charged import duties or customs fees?
Customs charges depend on your own country's import rules and its de minimis threshold, not on the seller. Some destinations apply no duty at all on lower-value parcels, and where duty or VAT does apply it is collected by your local post office or courier before delivery. We ship every order with complete and accurate commercial documents, which is what keeps a parcel moving through customs instead of sitting in it. If you would like to estimate the charges before you order, email us your country and we will point you to the right authority.
What is your return policy?
We offer a 30-day return policy, which means you can request a return within 30 days of receiving your item. To be eligible, the item must be unused, uninstalled and in the packaging it arrived in. Once a part has been fitted, bonded or used it cannot be returned, so please test the part before installation. To start a return, email sales@iProGadget.com.
What should I do if the part arrives damaged or faulty?
Inspect your order as soon as it arrives. If an item is defective, damaged or not what you ordered, contact us at sales@iProGadget.com straight away with photos or a short unboxing video, and we will arrange a replacement or a refund.
Do you provide repair guides or installation tutorials?
No. We are a supplier of replacement parts only. We are not a repair shop, and we do not provide repair guides, tutorials or step-by-step installation support. Every part we sell is intended to be installed by a professional technician at a qualified repair shop, which also gives the best result: a technician can transfer the small components, handle the adhesives and test the finished repair. Please do not attempt the installation yourself if you have no previous repair experience, as these assemblies are fragile and incorrect handling can damage them permanently. We sell parts only and do not accept responsibility for installation carried out by the customer. Our warranty covers the part itself and remains valid until the part is installed. If a problem appears after the repair, please take the device back to the repair shop that fitted the part so they can inspect the installation and test the device.
Still have a question about this part? Email us at sales@iProGadget.com and we will confirm compatibility, shipping time or return details for you.
