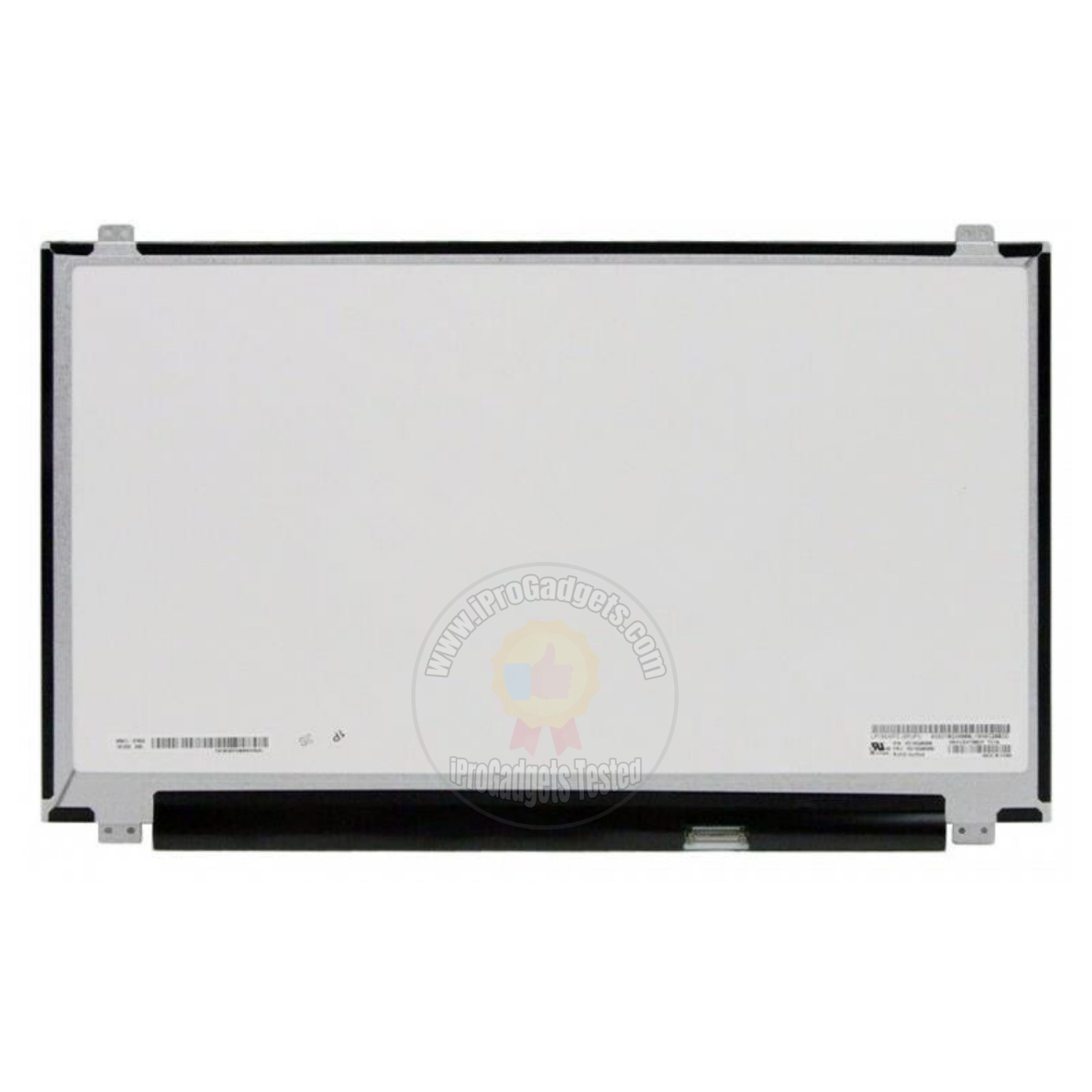

Replacement LCD Screen Display For LP156WF9-SPK2 LP156WF9-SPF1 15.6 inch FHD 1920x1080 Panel
iProGadgets OEM Repair Parts for LP156WF9-SPK2 LP156WF9-SPF1 15.6 inch FHD 1920x1080 Laptop Screen Replacement — Quick Answers

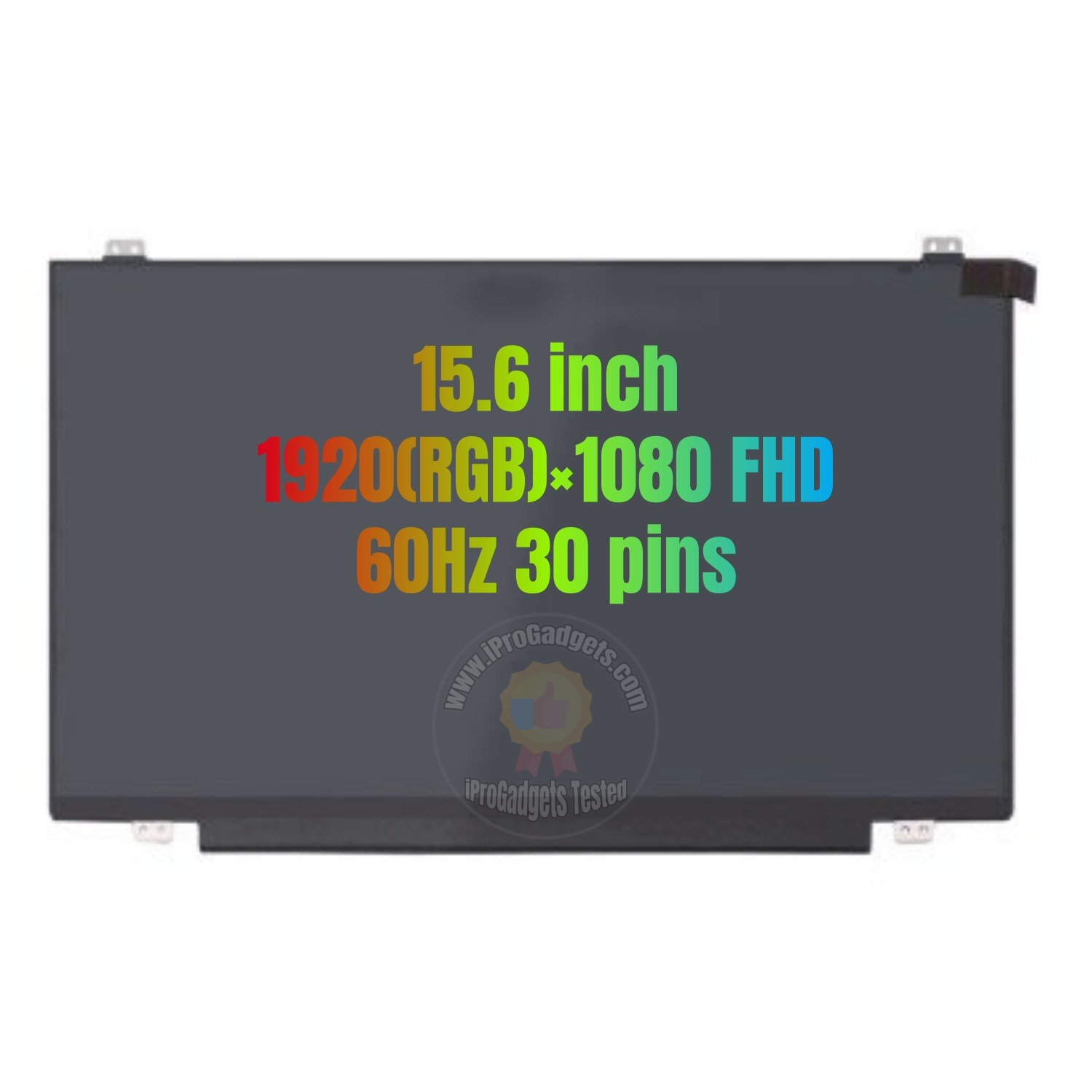

Quick answer: this is a replacement display panel for the Display LP156WF9-SPK2 (also written LP156WF9(SP)(K2)) and LP156WF9-SPF1 (also written LP156WF9(SP)(F1)) — 15.6″, IPS LCD, 1920 x 1080 px (FHD), 60 Hz, 250 cd/m², 700:1 contrast, matte, 30-pin eDP, non-touch, double tested before shipping and backed by a 30-day return window on unused, uninstalled parts. Both codes are the same panel specification — same resolution, brightness, contrast, viewing angle, backlight and connector — so whichever code is printed on your label, this listing covers it. This panel has the usual mounting holes on its top and bottom edges.
- Fit: Compatible with 15.6″ FHD laptops that use the 30-pin eDP LP156WF9 panel. This is the 60 Hz version — if your screen is 120 Hz, 144 Hz, 165 Hz or 240 Hz, or if it has a 40-pin or 50-pin connector, it is a different panel and this one will not fit. Send us the machine model or a photo of the label on the back of the screen and we will confirm the fitment before dispatch
- Panel: IPS LCD, non-touch, matte finish, 30-pin eDP
- Testing: every unit is double tested before shipping — display, backlight and fitment
Technical Specifications
| Item | Detail |
|---|---|
| Panel codes covered | LP156WF9-SPK2 / LP156WF9(SP)(K2) / LGD0573 and LP156WF9-SPF1 / LP156WF9(SP)(F1) / LGD0541 — one specification, two codes |
| Screen size | 15.6 inches diagonal |
| Resolution | 1920 x 1080 px (FHD) |
| Refresh rate | 60Hz |
| Pixel density | 141 ppi |
| Aspect ratio | 16:9 |
| Pixel format | RGB vertical stripe, pitch 0.17925 x 0.17925 mm |
| Panel technology | a-Si TFT-LCD, LCM (Liquid Crystal Module), AH-IPS, normally black, transmissive |
| Brightness | 250 cd/m² (typical) |
| Contrast ratio | 700:1 (typical) |
| Viewing angle | 80 / 80 / 80 / 80 (minimum at CR>10) |
| Colour | 262K colours (6-bit), 47% NTSC, sRGB 66% / Adobe RGB 49% / DCI-P3 49% |
| Response time | 25 ms (typical, Tr+Td) |
| White point | 6485K (x 0.313 / y 0.329) |
| Surface | Matte (anti-glare) |
| Backlight | WLED (White LED), edge-lit, 15,000 hours rated, LED driver included in the panel |
| Signal interface | eDP, 2 lanes, HBR1 (2.7G/lane), 30-pin, 0.5 mm pitch, 3.3V |
| Connector | HRS KN38B-30S-0.5H, 30-pin, 1 pcs |
| Mounting | Face mounting holes (8 pcs) on the top and bottom edges |
| Active area | 344.16 x 193.59 mm |
| Backlight power consumption | 3.0 / 3.07 W (typical / max) |
| Panel power consumption | 0.65 / 0.72 W (typical / max) |
| Weight | 350 g (max) |
| Operating temperature | 0 to 50 °C |
| Storage temperature | -20 to 60 °C |
| Touch | Display-only panel (no touch layer) |
| Note on the two codes | SPK2 and SPF1 carry different LG product codes (LGD0573 and LGD0541) and different pin-assignment drawings, but the electrical and optical specification is identical. We ship whichever of the two is in stock |
| NOT a high-refresh panel | 120 Hz, 144 Hz, 165 Hz and 240 Hz 15.6″ panels use different part codes, different connectors and different controller settings — they are not covered by this listing |
| NOT a 40-pin or 50-pin panel | Several LP156WF1, LP156WF3, LP156WH3 and similar models use 40-pin or 50-pin connectors — physically and electrically different parts |
| Condition | Brand-new, unassembled |
| Quality | iProGadgets OEM Quality |
Compatibility
| Device | Model numbers / part codes |
|---|---|
| Panel codes | LP156WF9-SPK2, LP156WF9(SP)(K2), LGD0573, LP156WF9-SPF1, LP156WF9(SP)(F1), LGD0541 |
| Connector used by this panel | HRS KN38B-30S-30S-0.5H, 30-pin, 0.5 mm pitch, eDP 2 lanes |
| Where to confirm fitment | Send the machine model, or a photo of the label on the back of the screen you are removing — we will check it against our stock before dispatch |
Before We Ship — Please Send Us These 3 Details
Laptop, all-in-one and desktop PC screens can differ between revisions of the same model, so the listing alone cannot always tell us which panel is inside your machine. After you place the order we will contact you for the three items below — please send them so we can confirm the fitment and ship the correct, fully compatible screen straight away:
- A photo of your computer. A clear photo of the laptop itself, plus the model / service label on the bottom cover (or the model name shown in Settings → About).
- Touch or non-touch, resolution and refresh rate. Tell us whether your screen is a touch screen or a non-touch screen, its resolution, and its refresh rate in Hz. If you are not sure, just send the model number and we will check it for you.
- Photos of your old screen. Once the machine is opened, a full photo of the back of the old screen and a close-up of the label or barcode sticker on it. That label carries the exact panel part number, which removes any doubt about which screen you need.
We check your photos against our stock before dispatch. If something does not match, we will contact you first instead of sending a part that may not fit. Once your details are confirmed, we arrange shipment within 1 to 3 business days. Thank you for helping us get it right.
Installation Notes
- Clean the flex cable with alcohol before installation and confirm that it is well connected.
- Do not pull, tear or push on the flex cable, be careful during installation.
- Before installing the screen, please remove the battery in advance.
- Please tap the screen carefully, because the screen is too fragile to damage.
Quality Control
Strictly tested by the iProGadgets QC Team — every unit is double tested before shipping and ships in good working order. After receiving the part, please check the appearance and test it first: connect the new part to the motherboard for a functional test before full installation, and only install once everything works. We are not responsible for any installation mistakes — if you are not experienced with screen replacement, have the part fitted by a professional repair shop.
Shipping
We ship worldwide. Orders are dispatched within 1 to 3 business days, and every package carries a tracking number you can follow on the order page. Delivery typically takes 7 to 10 days after dispatch.
Returns & Warranty
30-day returns on unused, uninstalled parts. The warranty is valid until installed — once a screen has been fitted, the return window no longer applies, which is why we ask you to test before installation.
FAQs
Are LP156WF9-SPK2 and LP156WF9-SPF1 the same screen?
They are the same panel specification under two codes. Both are 15.6″, 1920 x 1080, 250 cd/m², 700:1, 80/80/80/80, matte, 30-pin eDP with the LED driver built in, and both have the mounting holes on the top and bottom edges. LG records them as two product codes (LGD0573 for SPK2 and LGD0541 for SPF1), and some catalogues list them separately, but they are interchangeable for the same machines. We ship whichever code is in stock — if you need a specific code, put it in the order notes and we will confirm what we can send before dispatch.
How do I confirm which panel my laptop takes?
Three checks on the label of the screen you are removing. Resolution — it must read 1920 x 1080. Connector — it must be a 30-pin eDP socket. Refresh class — the machine must be a 60 Hz model, not 120 / 144 / 165 / 240 Hz. If all three match, the panel code should be in the LP156WF9 family. If you are unsure, send us a photo of the back of the screen and the label, plus the machine model, and we will confirm before shipping.
Is this the same panel as the LP156WFC series?
No — they are different panels, although retail catalogues do list them as replacing each other on some 15.6″ FHD machines, so it is worth knowing how to tell them apart. The LP156WFC series shows 16.2 million colours, 45% NTSC and 85/85/85/85 viewing angles. This LP156WF9 panel shows 262K colours, 47% NTSC and 80/80/80/80. If your label says LP156WFC, that is the other panel; if it says LP156WF9, this listing is the one you want. Both are 30-pin eDP 1920 x 1080 60 Hz panels, so the connector alone will not tell them apart.
Is this a touch screen, and does it come with brackets and a cable?
This is the non-touch display panel only — no touch layer, no digitizer, no bezel, no hinges, no screws and no eDP cable. The eDP cable is not included because on most repairs it stays with the machine and is undamaged. The panel does have its mounting holes on the top and bottom edges, so it drops into a chassis that uses those positions. If you need a cable, a bezel or a full touch assembly, send us a photo of your machine's screen area and we will tell you which additional parts fit.
Questions about fit, shipping to your country, or bulk pricing? Email sales@iProGadget.com and we will confirm the exact part you need.
Frequently Asked Questions
Is this part compatible with my device?
This listing is for Replacement LCD Screen Display For LP156WF9-SPK2 LP156WF9-SPF1 15.6 inch FHD 1920x1080 Panel. It is built as a direct-fit replacement for the model named in the title. Match the model number in the title against your own device before ordering. If you are not sure which version you need, email sales@iProGadget.com and we will confirm the correct part for you.
What is the quality of these replacement parts?
We supply iProGadgets OEM Quality / Premium Compatible replacement parts. Every part is manufactured to OEM specifications, so the fit, finish and function match the original component it replaces, and each unit is individually tested before it leaves our warehouse.
Is the part tested before it is shipped?
Yes. Every part we sell is inspected before dispatch and tested wherever testing applies — screen assemblies are checked on the panel, the touch response and the connector. Orders are processed and shipped within 1-3 business days after payment is confirmed.
How long does shipping take?
Orders leave our warehouse within 1-3 business days. Express Shipping (DHL, UPS or FedEx) takes 5-8 working days and is normally used for parcels over 2 kg. Registered Air Post takes 10-20 working days and is normally used for parcels under 2 kg. Every order ships with a tracking number. Customs clearance can add extra time, especially during peak season.
Will I be charged import duties or customs fees?
Customs charges depend on your own country's import rules and its de minimis threshold, not on the seller. Some destinations apply no duty at all on lower-value parcels, and where duty or VAT does apply it is collected by your local post office or courier before delivery. We ship every order with complete and accurate commercial documents, which is what keeps a parcel moving through customs instead of sitting in it. If you would like to estimate the charges before you order, email us your country and we will point you to the right authority.
What is your return policy?
We offer a 30-day return policy, which means you can request a return within 30 days of receiving your item. To be eligible, the item must be unused, uninstalled and in the packaging it arrived in. Once a part has been fitted, bonded or used it cannot be returned, so please test the part before installation. To start a return, email sales@iProGadget.com.
What should I do if the part arrives damaged or faulty?
Inspect your order as soon as it arrives. If an item is defective, damaged or not what you ordered, contact us at sales@iProGadget.com straight away with photos or a short unboxing video, and we will arrange a replacement or a refund.
Do you provide repair guides or installation tutorials?
No. We are a supplier of replacement parts only. We are not a repair shop, and we do not provide repair guides, tutorials or step-by-step installation support. Every part we sell is intended to be installed by a professional technician at a qualified repair shop, which also gives the best result: a technician can transfer the small components, handle the adhesives and test the finished repair. Please do not attempt the installation yourself if you have no previous repair experience, as these assemblies are fragile and incorrect handling can damage them permanently. We sell parts only and do not accept responsibility for installation carried out by the customer. Our warranty covers the part itself and remains valid until the part is installed. If a problem appears after the repair, please take the device back to the repair shop that fitted the part so they can inspect the installation and test the device.
Still have a question about this part? Email us at sales@iProGadget.com and we will confirm compatibility, shipping time or return details for you.
