UNI-T UT673PV Solor MPPT Meter Photovoltaic Maximum Power Tester Peak Open Circuit Voltage Short Circuit Current Pmax Lmp Test
iProGadgets Repair Tools UNI-T UT673PV Solor MPPT Meter Photovoltaic Maximum Power Tester Peak Open Circuit Voltage Short Circuit Current Pmax Lmp Test
Features:
Specifications:
Features:

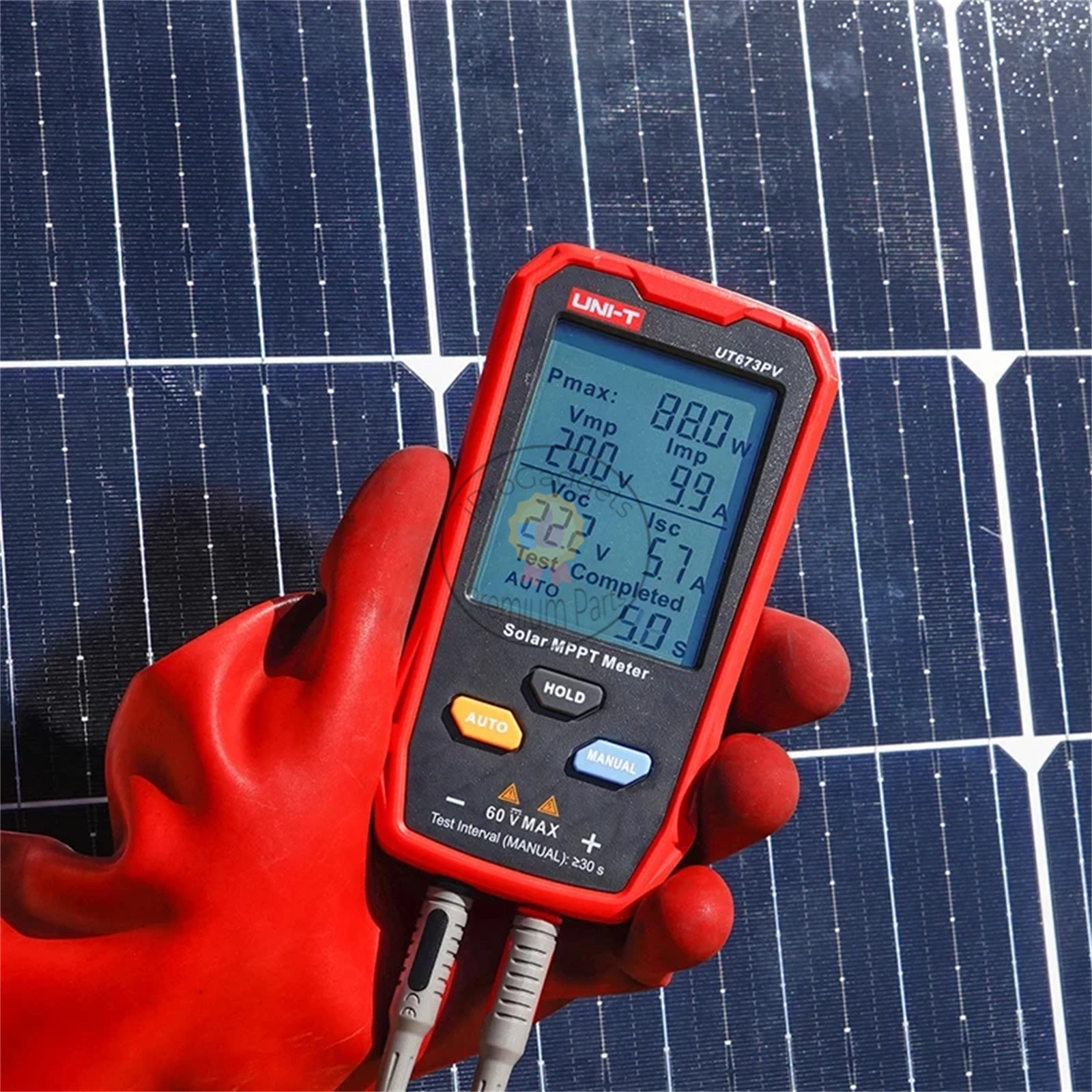

- UT673PV Solar MPPT meter can measure the maximum power of solar modules rapidly. It can measure the maximum power (Pmax) of solar modules, open-circuit voltage (Voc), and short-circuit current (Isc) at the same time and display all parameters on the screen
- MPPT is the most important indicator for judging if a solar panel generates power with low efficiency, and is commonly used for measuring solar panels or troubleshooting faulty module
- Photovoltaic maximum power tracking point test: maximum power (Pmax), peak power voltage (Vmp)

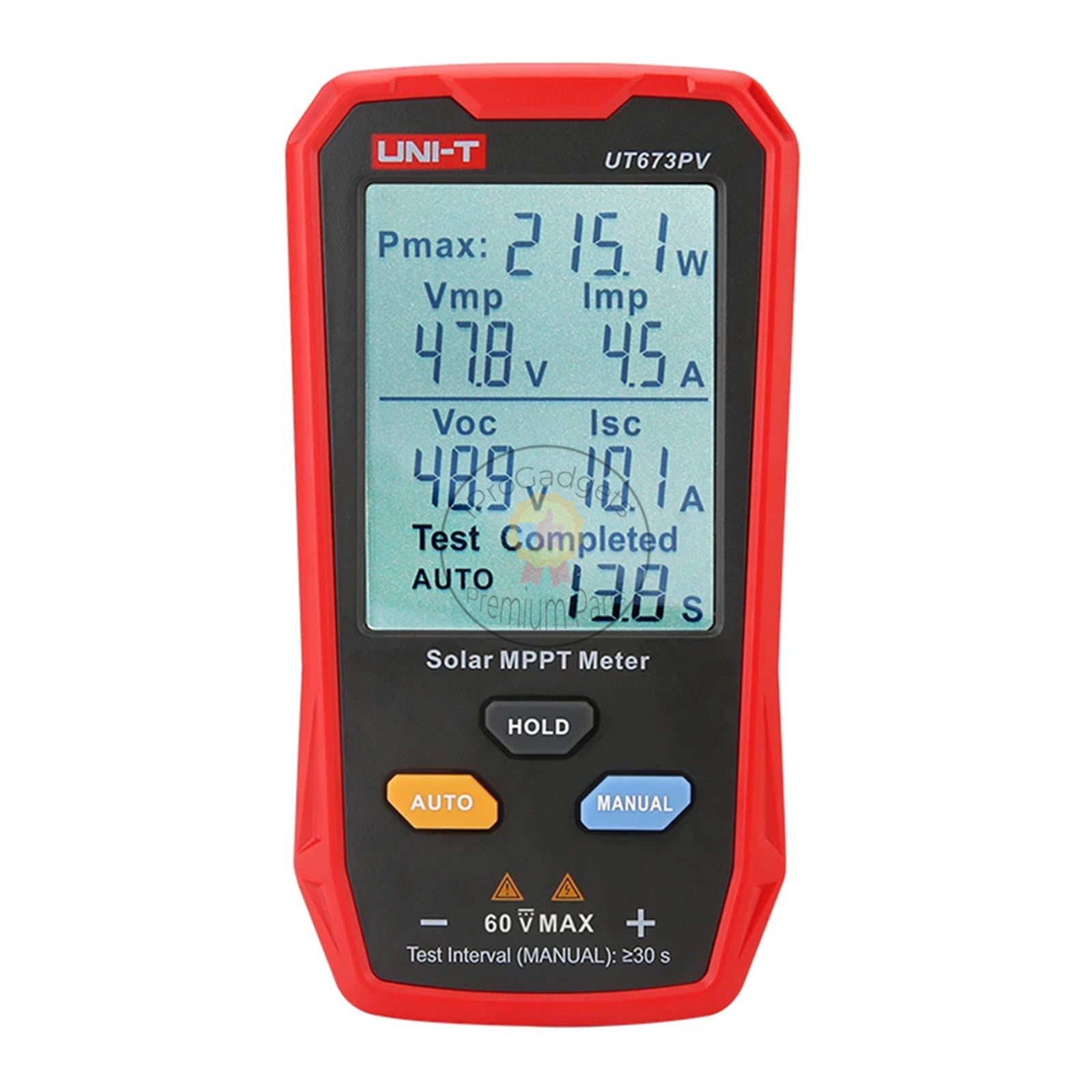

- Display peak power current (Imp), open circuit voltage (Voc), and short circuit current (Isc) simultaneously to quickly determine the fault situation of photovoltaic modules
- 800W maximum power test, meeting the requirements of high-power dual glass component testing for leading enterprises in the industry
- Compact size, palm-sized, easy to carry

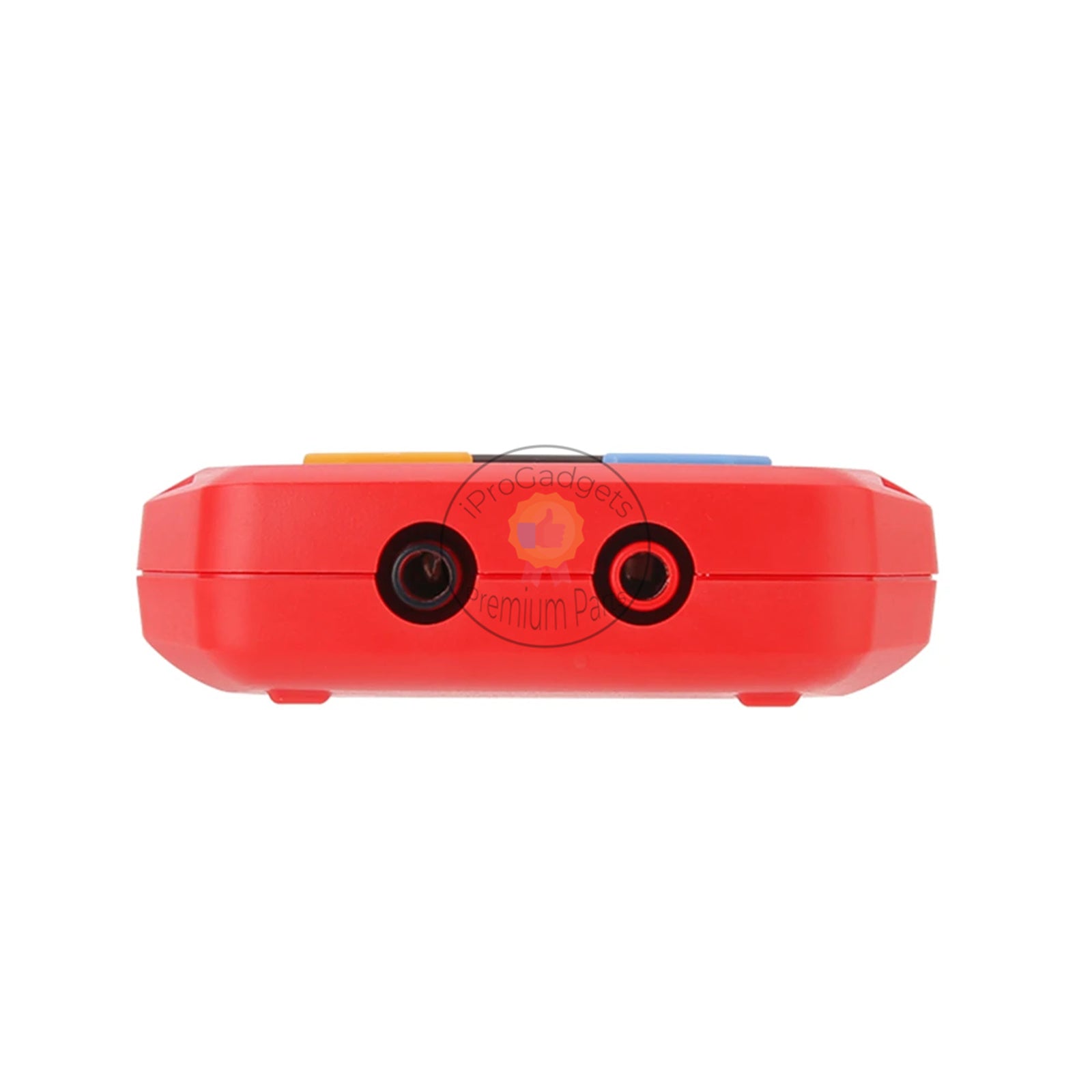

- MC4 test line connection, convenient and reliable measurement
- No battery power is required, direct power supply from photovoltaic panels
- CE, ETL, RoHS certification, measurement safety and reliability
- Application fields: Manufacturers of solar panels, users of solar panels, etc
Specifications:
- Model: UT673PV
- Material: ABS
- Color: Red + Grey
- Max Power Measurement: 5~800W, ±(1.5%+5)
- Max Power Current (DC): 0~35A, ±(1.5%+5)
- Open Circuit Current (DC): 12~60V, ±(1.5%+5)
- Short Circuit Current (Isc): 0~35A, ±(1.5%+5)
- Input Protection: Yes
- Reverse Protection: Yes
- Over Voltage Protection: Yes
- Over Current Protection: Yes
- Over Temperature Protection: Yes
- Over Power Protection: Yes
- Data Hold: Yes
- Certificate: CE, ETL, RoHS
- Power Supply: No battery needed, powered by solar panel
- Item Size: 142 * 76 * 22mm
- Item Weight: 155g

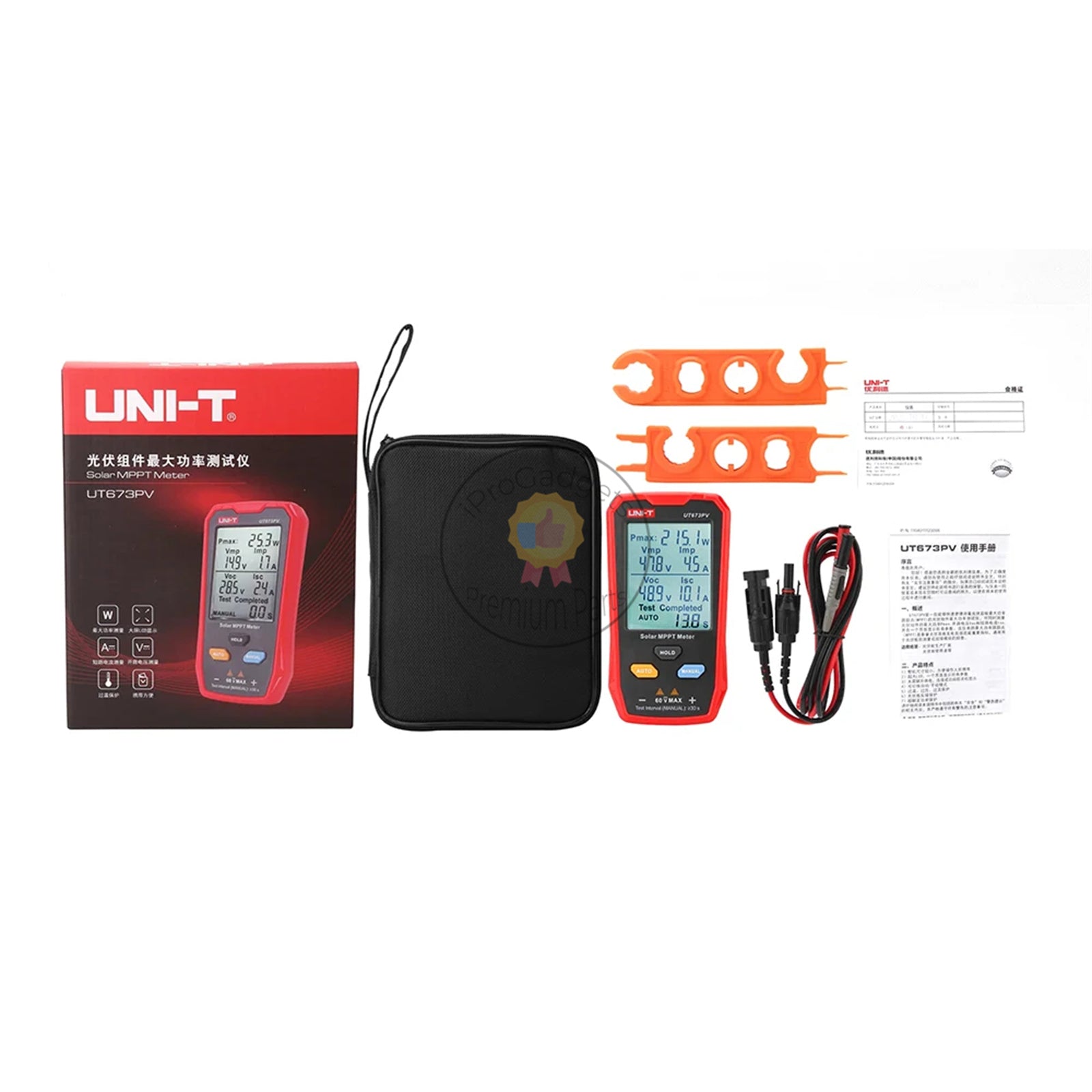

- 1 x Solar MPPT Meter
- 1 x MC Head Disassembly Tool
- 1 x MC4 Head Test Line
