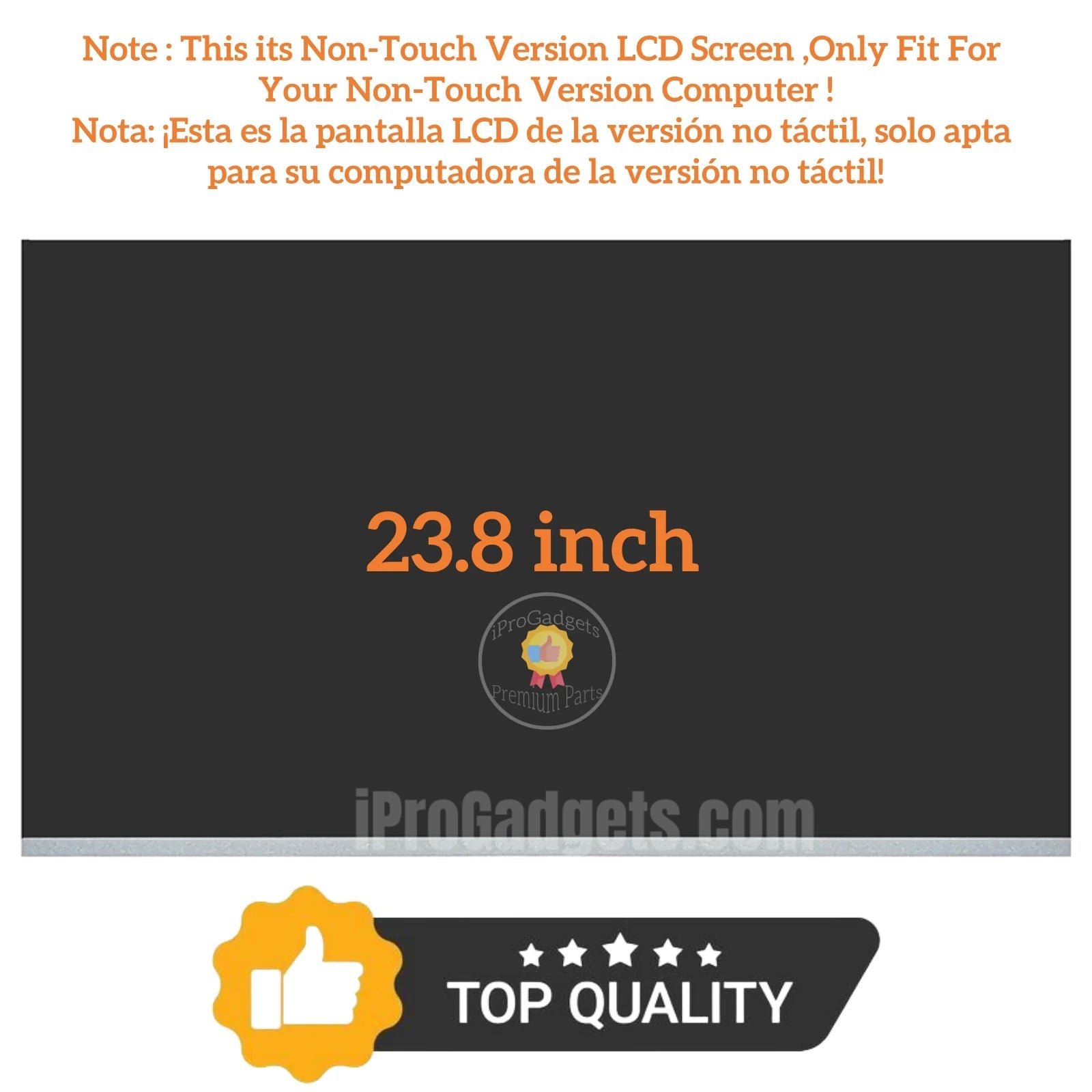

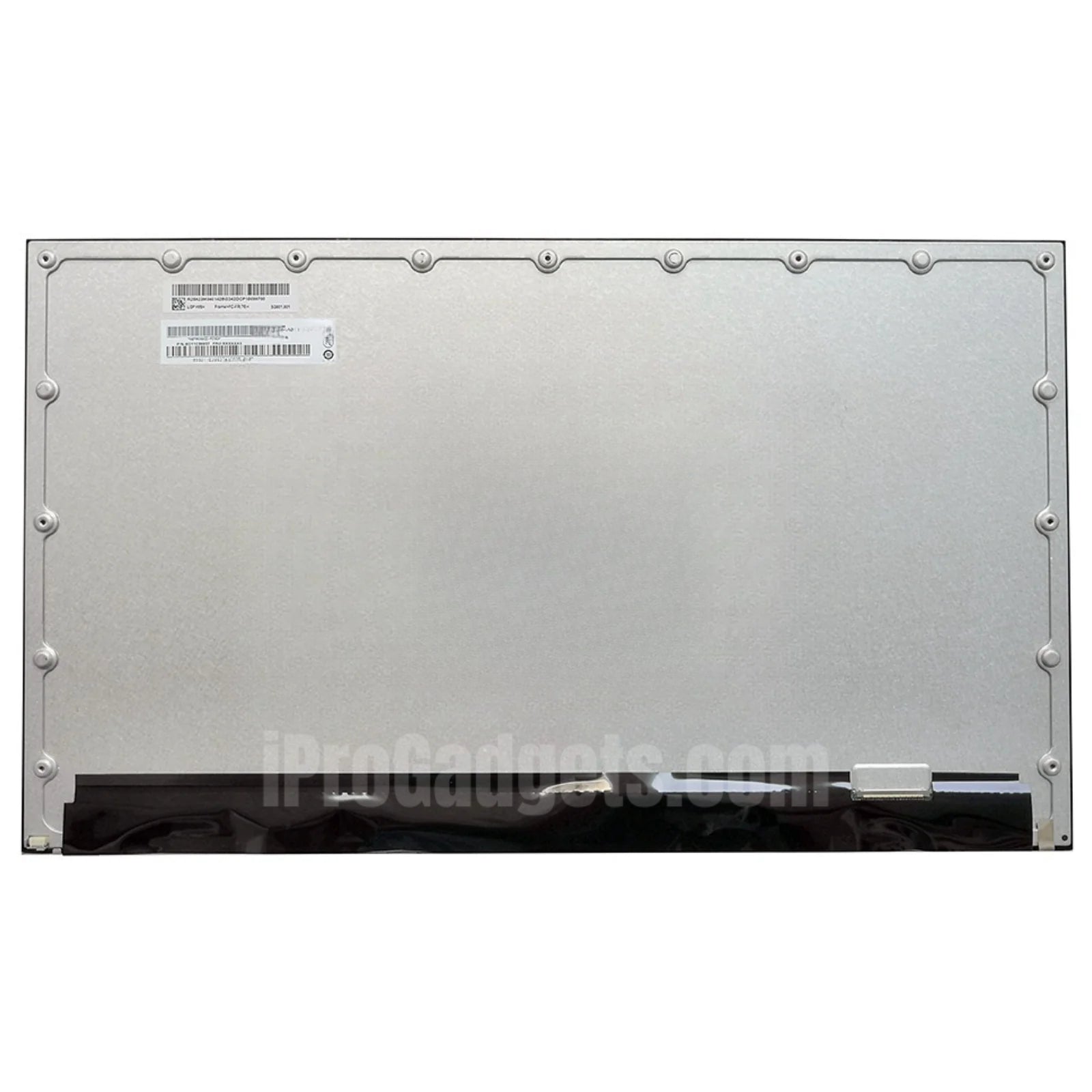

Replacement New Display M238HVN02.1 23.8 24 inch All-in-One LCD Screen Panel Non-Touch Version
iProGadgets Repair Parts New Screen M238HVN02.1 24 inch LCD Display Panel for All-in-One Computers - Non-Touch
Model Name: M238HVN02.1
Panel Type: a-Si TFT-LCD
Size: 23.8 inches (diagonal)
Application: Often used in All-in-One (AIO) PCs
Resolution: 1920(RGB) * 1080 (FHD - Full High Definition)
Aspect Ratio: 16:9 (W:H)
Pixel Arrangement: RGB Vertical Stripe
Pixel Density: 92 PPI (Pixels Per Inch)
Display Mode: VA (Vertical Alignment), Normally Black, Transmissive
Brightness: Typically 250 cd/m² (nits) for the LCM (module with backlight). For the CELL only, brightness is 0 as it lacks a backlight.
Contrast Ratio: 3000:1 (Typical)
Colors: 16.7M (million colors), achieved with 6-bit + Hi-FRC (High Frame Rate Control) gray scale signal.
Color Gamut: Approximately 67% NTSC, 85% sRGB, 68% DCI-P3.
Surface Treatment: Antiglare (Haze 40%), Hard coating (3H)
Signal Interface: LVDS (Low-Voltage Differential Signaling) (2 ch, 8-bit)
Connector: 30 pins
Typical Vertical Frame Rate (Refresh Rate): 60Hz or 75Hz (some sources list 75Hz, while others list 60Hz; it's possible different versions or integrated modules might vary).
Strictly Tested by iProGadgets QC Team
(iProGadgets Focus on All kind of Phone /Tablet/Computer/PC Repair Parts for More than 10 Years and we Only Supply the Prime Quality Parts and Accessories ! )
Notice :
Clean the flex cable with alcohol before installation and confirm that it is well connected.
Do not pull, tear or push on the flex cable, be careful during installation.
Before installing the screen, please remove the battery in advance.
Please tap the screen carefully, because the screen is too fragile to damage.
1.Each parts we already double tested before shipping and good working well.
2.After receiving the parts, please check the appearance and test it first. Do not install it directly. You need to connect the new parts to the motherboard for functional testing first ,if all tested ok then do a professional install.
3.All the repair parts is fragile and easily broken or work unproperly by installation mistakes. If you are not good at replacing the parts , please do it by a professional person or repair shop.
4.We are not responsible for any installation mistakes. Any unprofessional installation or mistake are likely to cause product damage and functional issues.
5.Warranty period: The warranty for the parts is valid until it is installed (pasted) in your device! We will no longer provide warranty for any issues arising after the product is installed.
