Replacement LCD Screen Display For NV156FHM-N49 15.6 inch FHD 1920x1080 Panel
iProGadgets OEM Repair Parts for NV156FHM-N49 15.6 inch FHD 1920x1080 Laptop Screen Replacement — Quick Answers

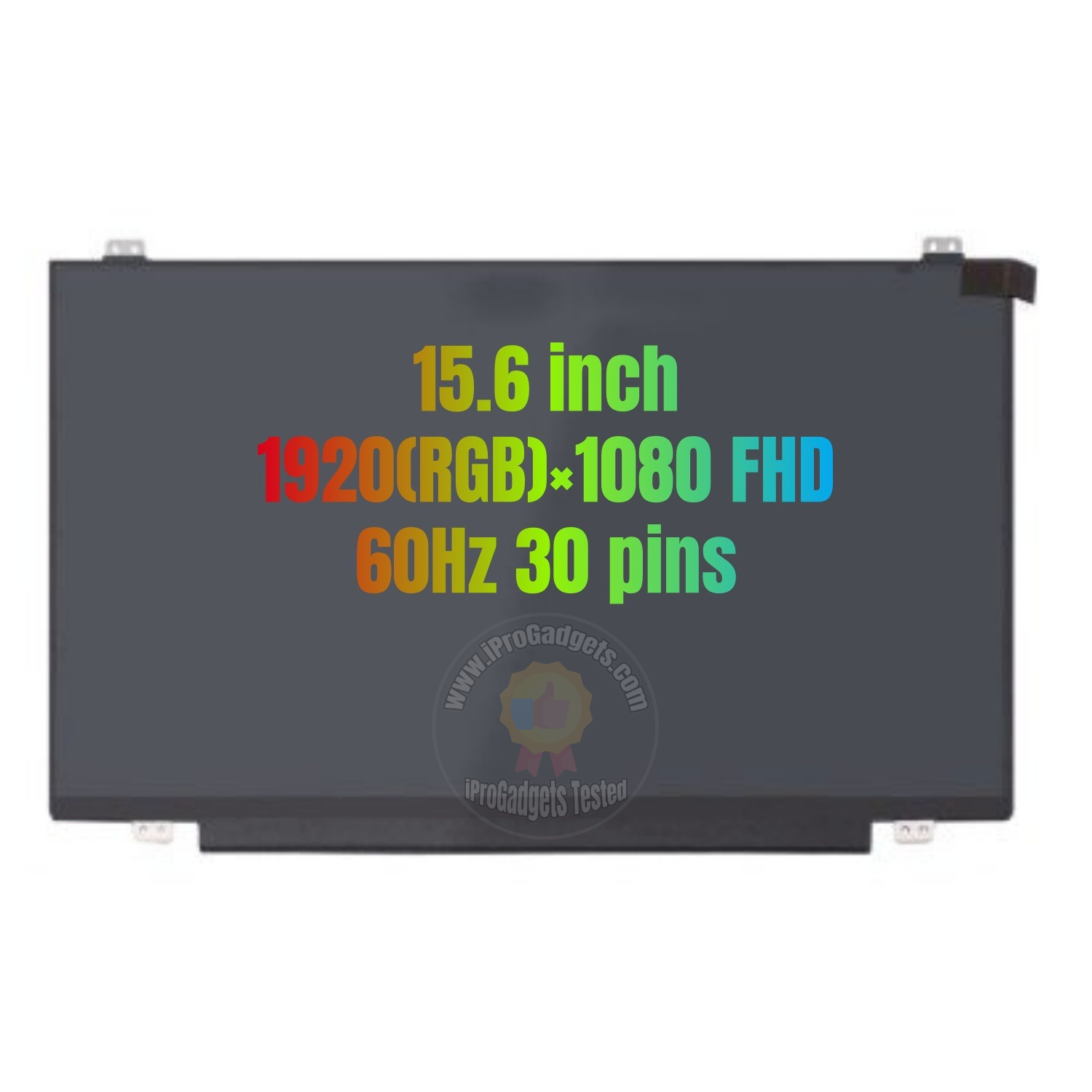

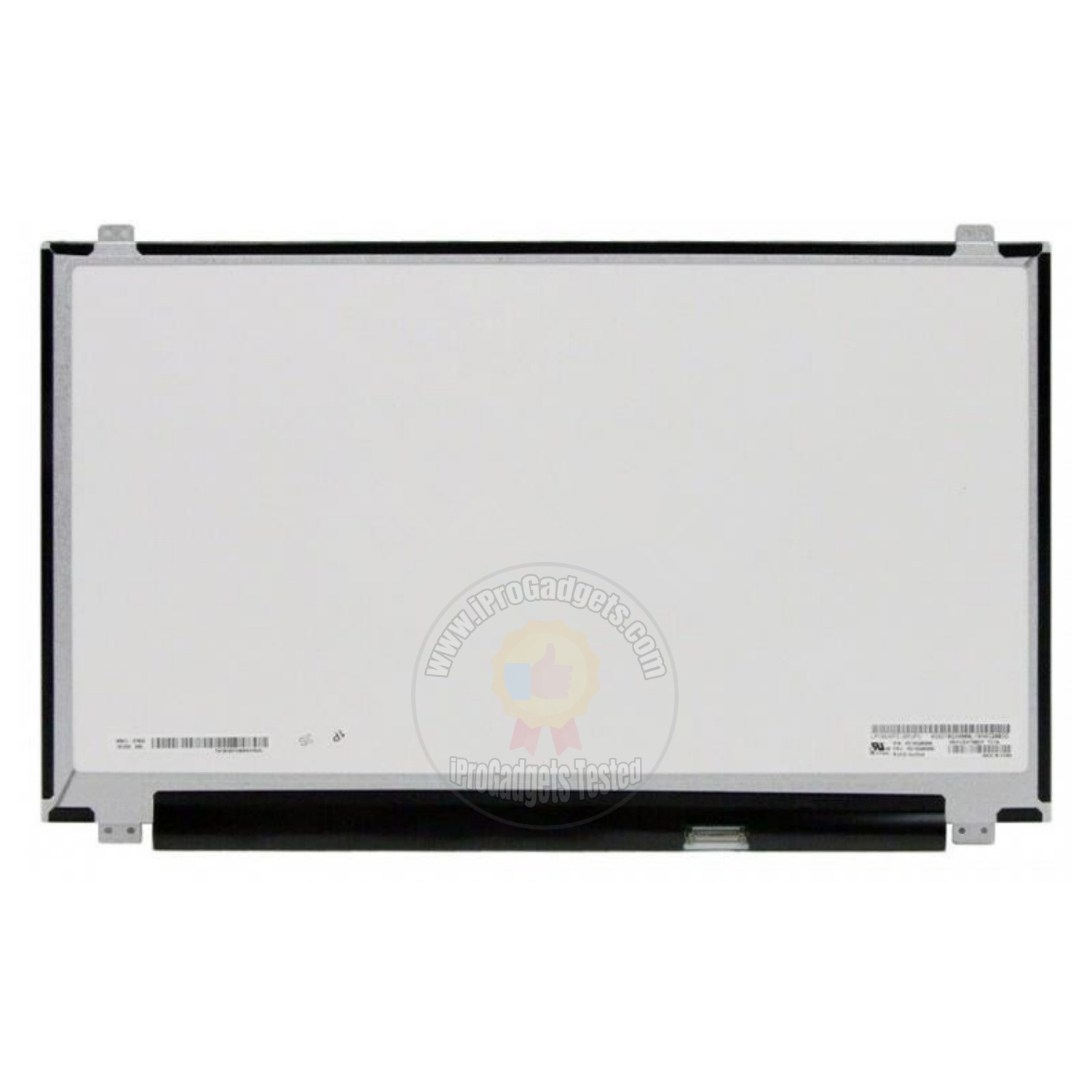

Quick answer: this is a replacement display panel for the NV156FHM-N49 (also coded BOE06FF) — 15.6″, IPS LCD, 1920 x 1080 px (FHD), 60 Hz, 250 cd/m², 800:1 contrast, matte, 30-pin eDP, non-touch, double tested before shipping and backed by a 30-day return window on unused, uninstalled parts. This is the 8-bit panel, 16.2 million colours. The closely related NV156FHM-N47 is the 6-bit version with 262K colours — same size, resolution, brightness and connector, but a different panel, so please check the part number on your label before ordering.
- Fit: Compatible with 15.6″ FHD laptops that use the 30-pin eDP NV156FHM-N49 panel, This is the 60 Hz version — 120 Hz, 144 Hz and 165 Hz panels use different part codes and are not covered. Send us the machine model or a photo of the label and we will confirm before dispatch
- Panel: IPS LCD, non-touch, matte finish, 30-pin eDP
- Testing: every unit is double tested before shipping — display, backlight and fitment
Technical Specifications
| Item | Detail |
|---|---|
| Panel model | NV156FHM-N49 (code BOE06FF) |
| Screen size | 15.6 inches diagonal |
| Resolution | 1920 x 1080 px (FHD) |
| Refresh rate | 60Hz |
| Pixel density | 141 ppi |
| Aspect ratio | 16:9 |
| Pixel format | RGB vertical stripe |
| Panel technology | a-Si TFT-LCD, LCM (Liquid Crystal Module), ADS, normally black, transmissive |
| Brightness | 250 cd/m² (typical) |
| Contrast ratio | 800:1 |
| Viewing angle | 85 / 85 / 85 / 85 (typical, CR>=10) |
| Colour depth | 16.2 million (8-bit), 45% NTSC |
| Response time | 30 ms (typical, Tr+Td) |
| Surface | Matte (anti-glare) |
| Backlight | WLED (White LED), 10S4P, 15,000 hours rated, LED driver included in the panel |
| Signal interface | eDP, 2 lanes, eDP 1.2, HBR1 (2.7G/lane), 30-pin, 3.3V |
| Frame profile | Slim (PCBA flat, thickness 3.2 mm or less) |
| Active area | 344.16 x 193.59 mm |
| Operating temperature | 0 to 50 °C |
| Storage temperature | -20 to 60 °C |
| Touch | Display-only panel (no touch layer) |
| Colour depth note | This is the 8-bit panel, 16.2M colours. The NV156FHM-N47 is the 6-bit version, 262K colours — a different panel, not covered by this listing |
| NOT a high-refresh panel | 120 Hz, 144 Hz and 165 Hz 15.6″ panels use different part codes and different connectors — they are not covered by this listing |
| Condition | Brand-new, unassembled |
| Quality | iProGadgets OEM Quality |
Compatibility
| Device | Model numbers / part codes |
|---|---|
| Panel codes | NV156FHM-N49, NV156FHM N49, BOE06FF |
| Where to confirm fitment | Send the machine model, or a photo of the label on the back of the screen you are removing — we will check it against our stock before dispatch |
Before We Ship — Please Send Us These 3 Details
Laptop, all-in-one and desktop PC screens can differ between revisions of the same model, so the listing alone cannot always tell us which panel is inside your machine. After you place the order we will contact you for the three items below — please send them so we can confirm the fitment and ship the correct, fully compatible screen straight away:
- A photo of your computer. A clear photo of the laptop itself, plus the model / service label on the bottom cover (or the model name shown in Settings → About).
- Touch or non-touch, resolution and refresh rate. Tell us whether your screen is a touch screen or a non-touch screen, its resolution, and its refresh rate in Hz. If you are not sure, just send the model number and we will check it for you.
- Photos of your old screen. Once the machine is opened, a full photo of the back of the old screen and a close-up of the label or barcode sticker on it. That label carries the exact panel part number, which removes any doubt about which screen you need.
We check your photos against our stock before dispatch. If something does not match, we will contact you first instead of sending a part that may not fit. Once your details are confirmed, we arrange shipment within 1 to 3 business days. Thank you for helping us get it right.
Installation Notes
- Clean the flex cable with alcohol before installation and confirm that it is well connected.
- Do not pull, tear or push on the flex cable, be careful during installation.
- Before installing the screen, please remove the battery in advance.
- Please tap the screen carefully, because the screen is too fragile to damage.
Quality Control
Strictly tested by the iProGadgets QC Team — every unit is double tested before shipping and ships in good working order. After receiving the part, please check the appearance and test it first: connect the new part to the motherboard for a functional test before full installation, and only install once everything works. We are not responsible for any installation mistakes — if you are not experienced with screen replacement, have the part fitted by a professional repair shop.
Shipping
We ship worldwide. Orders are dispatched within 1 to 3 business days, and every package carries a tracking number you can follow on the order page. Delivery typically takes 7 to 10 days after dispatch.
Returns & Warranty
30-day returns on unused, uninstalled parts. The warranty is valid until installed — once a screen has been fitted, the return window no longer applies, which is why we ask you to test before installation.
FAQs
What is the difference between the NV156FHM-N49 and the NV156FHM-N47?
Colour depth. The N49 is the 8-bit panel showing 16.2 million colours; the N47 is the 6-bit panel showing 262K colours. Everything else is the same generation of 15.6″ FHD BOE panel — 1920 x 1080, 60 Hz, 250 cd/m², 800:1, 85/85/85/85, matte, 30-pin eDP — which means the size and the connector will not tell them apart. Check the part number printed on the label of the screen you are removing and order the matching one.
How do I confirm this is the right screen before ordering?
Three checks on the label of the screen you are removing. Resolution — 1920 x 1080. Connector — a 30-pin eDP socket. Panel code — NV156FHM-N49, or one of the equivalent codes listed in the specification table. If the machine is a 120 Hz or faster model, this is the wrong panel. If you are unsure, send us a photo of the back of the screen and the label plus the machine model, and we will confirm before shipping.
Is this a touch screen, and what else is in the box?
This is the non-touch display panel only — no touch layer, no digitizer, no bezel, no hinges, no screws and no eDP cable. The eDP cable is not included because on most repairs it stays with the machine and is undamaged. If you need a cable, a bezel or a full touch assembly, send us a photo of your machine's screen area and we will tell you which additional parts fit.
Questions about fit, shipping to your country, or bulk pricing? Email sales@iProGadget.com and we will confirm the exact part you need.
Frequently Asked Questions
Is this part compatible with my device?
This listing is for Replacement LCD Screen Display For NV156FHM-N49 15.6 inch FHD 1920x1080 Panel. It is built as a direct-fit replacement for the model named in the title. Match the model number in the title against your own device before ordering. If you are not sure which version you need, email sales@iProGadget.com and we will confirm the correct part for you.
What is the quality of these replacement parts?
We supply iProGadgets OEM Quality / Premium Compatible replacement parts. Every part is manufactured to OEM specifications, so the fit, finish and function match the original component it replaces, and each unit is individually tested before it leaves our warehouse.
Is the part tested before it is shipped?
Yes. Every part we sell is inspected before dispatch and tested wherever testing applies — screen assemblies are checked on the panel, the touch response and the connector. Orders are processed and shipped within 1-3 business days after payment is confirmed.
How long does shipping take?
Orders leave our warehouse within 1-3 business days. Express Shipping (DHL, UPS or FedEx) takes 5-8 working days and is normally used for parcels over 2 kg. Registered Air Post takes 10-20 working days and is normally used for parcels under 2 kg. Every order ships with a tracking number. Customs clearance can add extra time, especially during peak season.
Will I be charged import duties or customs fees?
Customs charges depend on your own country's import rules and its de minimis threshold, not on the seller. Some destinations apply no duty at all on lower-value parcels, and where duty or VAT does apply it is collected by your local post office or courier before delivery. We ship every order with complete and accurate commercial documents, which is what keeps a parcel moving through customs instead of sitting in it. If you would like to estimate the charges before you order, email us your country and we will point you to the right authority.
What is your return policy?
We offer a 30-day return policy, which means you can request a return within 30 days of receiving your item. To be eligible, the item must be unused, uninstalled and in the packaging it arrived in. Once a part has been fitted, bonded or used it cannot be returned, so please test the part before installation. To start a return, email sales@iProGadget.com.
What should I do if the part arrives damaged or faulty?
Inspect your order as soon as it arrives. If an item is defective, damaged or not what you ordered, contact us at sales@iProGadget.com straight away with photos or a short unboxing video, and we will arrange a replacement or a refund.
Do you provide repair guides or installation tutorials?
No. We are a supplier of replacement parts only. We are not a repair shop, and we do not provide repair guides, tutorials or step-by-step installation support. Every part we sell is intended to be installed by a professional technician at a qualified repair shop, which also gives the best result: a technician can transfer the small components, handle the adhesives and test the finished repair. Please do not attempt the installation yourself if you have no previous repair experience, as these assemblies are fragile and incorrect handling can damage them permanently. We sell parts only and do not accept responsibility for installation carried out by the customer. Our warranty covers the part itself and remains valid until the part is installed. If a problem appears after the repair, please take the device back to the repair shop that fitted the part so they can inspect the installation and test the device.
Still have a question about this part? Email us at sales@iProGadget.com and we will confirm compatibility, shipping time or return details for you.
