Replacement LCD Screen Display For LP125WH2-TLB1 TLE1 TLF1 12.5 inch WXGA TN Panel
iProGadgets OEM Repair Parts for LP125WH2-TLB1 TLE1 TLF1 12.5 inch WXGA TN Laptop Screen Replacement — Quick Answers

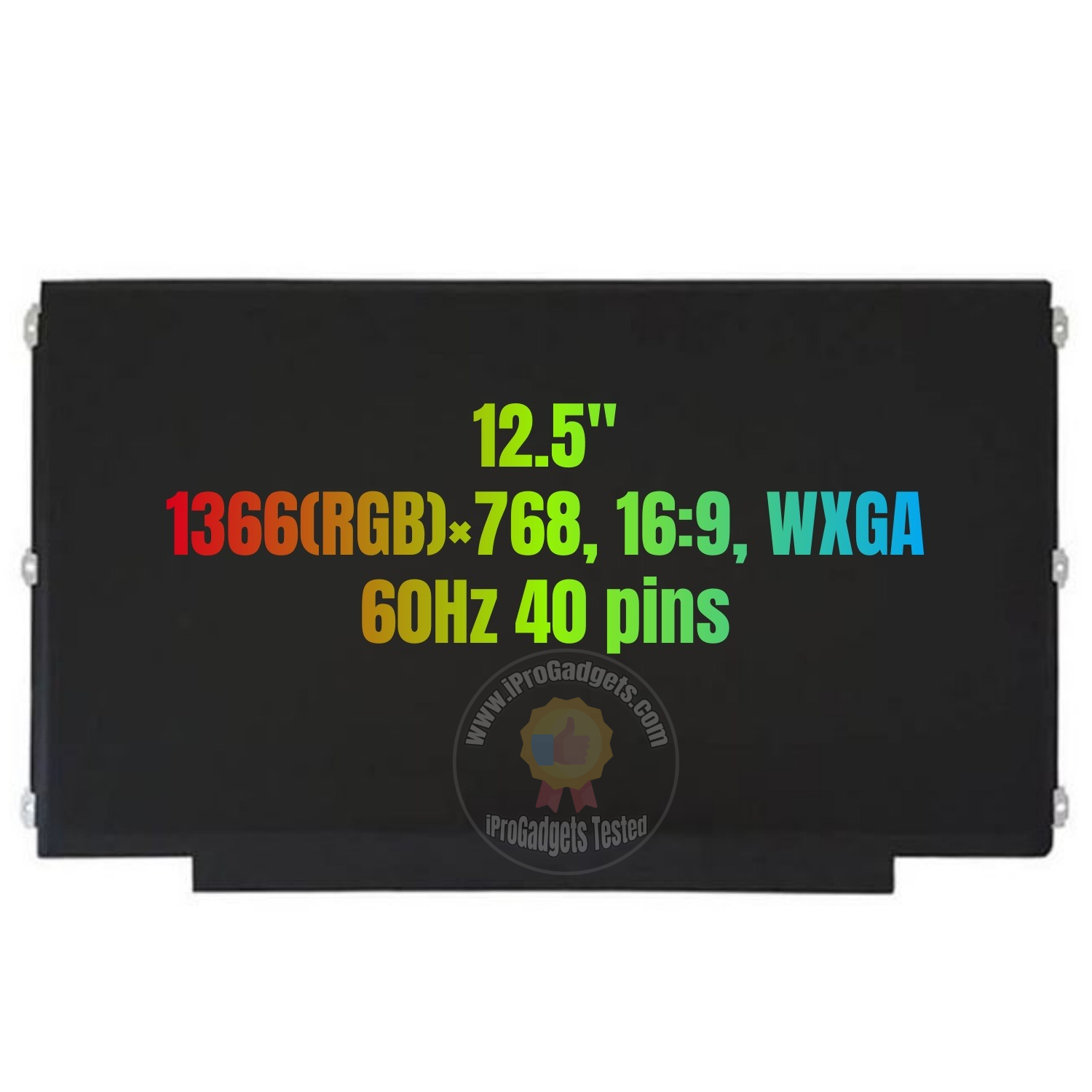

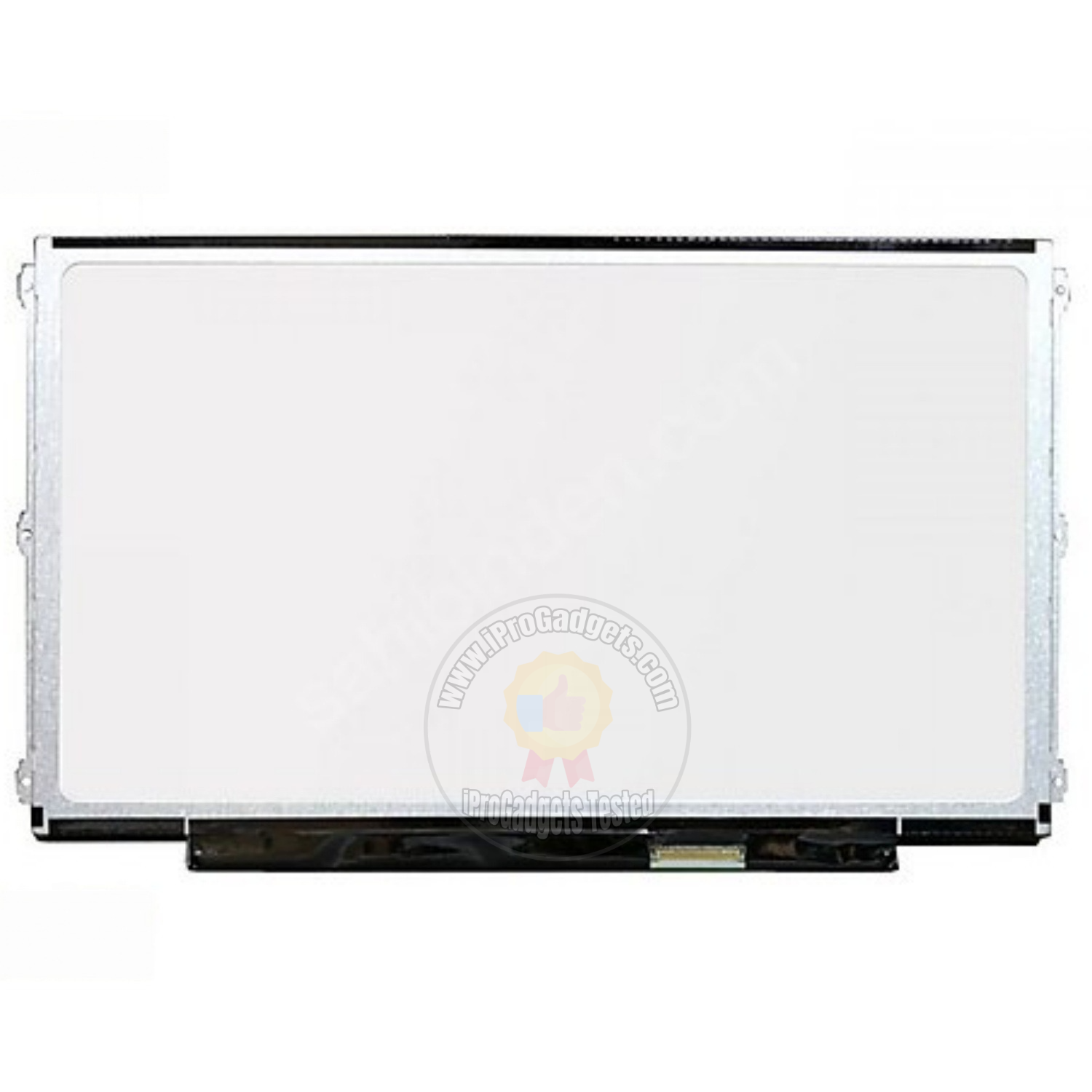

Quick answer: this is a replacement display panel for the LG Display LP125WH2-TL series — 12.5″, TN LCD, 1366 x 768 px (WXGA HD), 60 Hz, 40-pin LVDS, non-touch, double tested before shipping and backed by a 30-day return window on unused, uninstalled parts. This is the TN panel, not the wider-viewing-angle IPS version — the X220, X220i and X230 shipped with both, and they are different assemblies. Part numbers TLB1, TLB2, TLE1, TLF1 and TLFA all refer to this same panel, so any of them on your old screen is covered by this listing.
- Fit: Compatible with Lenovo ThinkPad X220, X220i, X230 and X230i fitted with the TN display, and Dell Latitude E6220 / E6230 — machines that shipped with the standard non-IPS screen
- Panel: TN LCD, non-touch, anti-glare (matte)
- Testing: every unit is double tested before shipping — display, backlight and fitment
Technical Specifications
| Item | Detail |
|---|---|
| Panel manufacturer | Display (LP125WH2-TL series) |
| Panel technology | a-Si TFT-LCD, LCM, TN normally white transmissive |
| Screen size | 12.5 inches diagonal |
| Resolution | 1366 x 768 px (WXGA HD) |
| Refresh rate | 60Hz |
| Pixel density | 125 ppi |
| Aspect ratio | 16:9 |
| Surface | Anti-glare (matte) |
| Brightness | 200 cd/m² (typical) |
| Contrast ratio | 300:1 typical (500:1 on the TLE1 variant) |
| Colour gamut | 46% NTSC, 262K colours (RGB 6-bit) |
| Response time | 16 ms typical (Tr+Td) |
| Viewing angle | 45° / 45° / 15° / 35° (L/R/U/D at CR 10); best view 6 o'clock |
| Backlight | WLED (White LED), with LED driver, 12,000–15,000 hour rating |
| Signal interface | LVDS, 40-pin, 1 channel, 6-bit, 3.3 V |
| Outline dimensions | 300.4 x 179.5 x 3.7 mm (3.8 mm on the TLFA variant) |
| Active area | 276.615 x 155.52 mm |
| Panel weight | 270 g maximum |
| Operating temperature | 0 to +50 °C |
| Touch | Display-only panel (no touch layer) |
| Compatible part numbers | LP125WH2-TLB1, LP125WH2(TL)(B1), LP125WH2-TLB2, LP125WH2(TL)(B2), LP125WH2-TLE1, LP125WH2(TL)(E1), LP125WH2-TLF1, LP125WH2(TL)(F1), LP125WH2-TLFA, LP125WH2(TL)(FA) |
| Also serves as a substitute for | B125XW01 V.0, LTN125AT01, 93P5669, 93P5671, 93P5672, 93P5673 — the AUO/Samsung TN panel used in the same machines |
| Compatible models | For Lenovo ThinkPad X220 X220i X230 X230i 12.5 inch TN LCD screen, Dell Latitude E6220 E6230 |
| Condition | Brand-new, unassembled |
| Quality | iProGadgets OEM Quality |
Compatibility
| Device | Model numbers / part codes |
|---|---|
| For Lenovo ThinkPad X220 / X220i (TN display) | LP125WH2-TL*, 93P5669, 93P5671 |
| For Lenovo ThinkPad X230 / X230i (TN display) | LP125WH2-TL*, 93P5669, 93P5671 |
| For Dell Latitude (TN display) | E6220, E6230 |
Before We Ship — Please Send Us These 3 Details
Laptop, all-in-one and desktop PC screens can differ between revisions of the same model, so the listing alone cannot always tell us which panel is inside your machine. After you place the order we will contact you for the three items below — please send them so we can confirm the fitment and ship the correct, fully compatible screen straight away:
- A photo of your computer. A clear photo of the laptop itself, plus the model / service label on the bottom cover (or the model name shown in Settings → About).
- Touch or non-touch, resolution and refresh rate. Tell us whether your screen is a touch screen or a non-touch screen, its resolution, and its refresh rate in Hz. If you are not sure, just send the model number and we will check it for you.
- Photos of your old screen. Once the machine is opened, a full photo of the back of the old screen and a close-up of the label or barcode sticker on it. That label carries the exact panel part number, which removes any doubt about which screen you need.
We check your photos against our stock before dispatch. If something does not match, we will contact you first instead of sending a part that may not fit. Once your details are confirmed, we arrange shipment within 1 to 3 business days. Thank you for helping us get it right.
Installation Notes
- Clean the flex cable with alcohol before installation and confirm that it is well connected.
- Do not pull, tear or push on the flex cable, be careful during installation.
- Before installing the screen, please remove the battery in advance.
- Please tap the screen carefully, because the screen is too fragile to damage.
Quality Control
Strictly tested by the iProGadgets QC Team — every unit is double tested before shipping and ships in good working order. After receiving the part, please check the appearance and test it first: connect the new part to the motherboard for a functional test before full installation, and only install once everything works. We are not responsible for any installation mistakes — if you are not experienced with screen replacement, have the part fitted by a professional repair shop.
Shipping
We ship worldwide. Orders are dispatched within 1 to 3 business days, and every package carries a tracking number you can follow on the order page. Delivery typically takes 7 to 10 days after dispatch.
Returns & Warranty
30-day returns on unused, uninstalled parts. The warranty is valid until installed — once a screen has been fitted, the return window no longer applies, which is why we ask you to test before installation.
FAQs
Which of the five part numbers do I need — TLB1, TLE1, TLF1 or TLFA?
They are all the same panel from LG Display, sold under different internal codes. Read whatever is printed on the label of your current screen — if it starts with LP125WH2-TL…, this listing covers it. The main practical difference is contrast ratio: the TLE1 is rated at 500:1 while the others are 300:1, and the TLFA (discontinued) is fractionally thicker at 3.8 mm. All of them share the same 12.5″ size, 1366 x 768 resolution, 40-pin LVDS connector and mounting geometry, so any of them fits the same machines.
Is this the IPS panel or the TN panel?
This is the TN panel — the standard 12.5″ display these machines shipped with. The X220 and X230 were also offered with a brighter wide-viewing-angle IPS panel, and the two are not interchangeable. Check the part number on your screen label: LP125WH2-TL… means TN (this listing), while LP125WH2-SL… or an FRU such as 04W3919 or 04W3462 means IPS, which is a different panel you do not want here.
My old screen is a B125XW01 V.0 or LTN125AT01 — will this fit instead?
Yes. Those are the AUO and Samsung TN panels used in the same X220/X230 and Latitude E6220/E6230 machines, and they share this panel's size, resolution, 40-pin LVDS connector and bracket layout. The electrical specifications match closely enough that this is a standard substitute, and it is a common and reliable swap. If you need the panel that carries the exact code printed on the screen you are removing, mention that in the order comments and we will confirm what we can ship before dispatch.
Does the panel include the mounting brackets and the eDP cable?
The panel is supplied with its integrated bracket and driver board. The eDP video cable is not included, because it stays with the machine on most repairs and is not usually damaged. If your cable is also faulty, send us a photo of the connector and we will tell you whether it needs replacing as well.
Questions about fit, shipping to your country, or bulk pricing? Email sales@iProGadget.com and we will confirm the exact part you need.
Frequently Asked Questions
Is this part compatible with my device?
This listing is for Replacement LCD Screen Display For LP125WH2-TLB1 TLE1 TLF1 12.5 inch WXGA TN Panel. It is built as a direct-fit replacement for the model named in the title. Match the model number in the title against your own device before ordering. If you are not sure which version you need, email sales@iProGadget.com and we will confirm the correct part for you.
What is the quality of these replacement parts?
We supply iProGadgets OEM Quality / Premium Compatible replacement parts. Every part is manufactured to OEM specifications, so the fit, finish and function match the original component it replaces, and each unit is individually tested before it leaves our warehouse.
Is the part tested before it is shipped?
Yes. Every part we sell is inspected before dispatch and tested wherever testing applies — screen assemblies are checked on the panel, the touch response and the connector. Orders are processed and shipped within 1-3 business days after payment is confirmed.
How long does shipping take?
Orders leave our warehouse within 1-3 business days. Express Shipping (DHL, UPS or FedEx) takes 5-8 working days and is normally used for parcels over 2 kg. Registered Air Post takes 10-20 working days and is normally used for parcels under 2 kg. Every order ships with a tracking number. Customs clearance can add extra time, especially during peak season.
Will I be charged import duties or customs fees?
Customs charges depend on your own country's import rules and its de minimis threshold, not on the seller. Some destinations apply no duty at all on lower-value parcels, and where duty or VAT does apply it is collected by your local post office or courier before delivery. We ship every order with complete and accurate commercial documents, which is what keeps a parcel moving through customs instead of sitting in it. If you would like to estimate the charges before you order, email us your country and we will point you to the right authority.
What is your return policy?
We offer a 30-day return policy, which means you can request a return within 30 days of receiving your item. To be eligible, the item must be unused, uninstalled and in the packaging it arrived in. Once a part has been fitted, bonded or used it cannot be returned, so please test the part before installation. To start a return, email sales@iProGadget.com.
What should I do if the part arrives damaged or faulty?
Inspect your order as soon as it arrives. If an item is defective, damaged or not what you ordered, contact us at sales@iProGadget.com straight away with photos or a short unboxing video, and we will arrange a replacement or a refund.
Do you provide repair guides or installation tutorials?
No. We are a supplier of replacement parts only. We are not a repair shop, and we do not provide repair guides, tutorials or step-by-step installation support. Every part we sell is intended to be installed by a professional technician at a qualified repair shop, which also gives the best result: a technician can transfer the small components, handle the adhesives and test the finished repair. Please do not attempt the installation yourself if you have no previous repair experience, as these assemblies are fragile and incorrect handling can damage them permanently. We sell parts only and do not accept responsibility for installation carried out by the customer. Our warranty covers the part itself and remains valid until the part is installed. If a problem appears after the repair, please take the device back to the repair shop that fitted the part so they can inspect the installation and test the device.
Still have a question about this part? Email us at sales@iProGadget.com and we will confirm compatibility, shipping time or return details for you.
