Replacement LCD Screen Display For Dell Latitude 3300 3310 J4MTV 2C7YD 13.3 inch HD Panel
iProGadgets OEM Repair Parts for Dell Latitude 3300 3310 J4MTV 2C7YD 13.3 inch HD Laptop Screen Replacement — Quick Answers

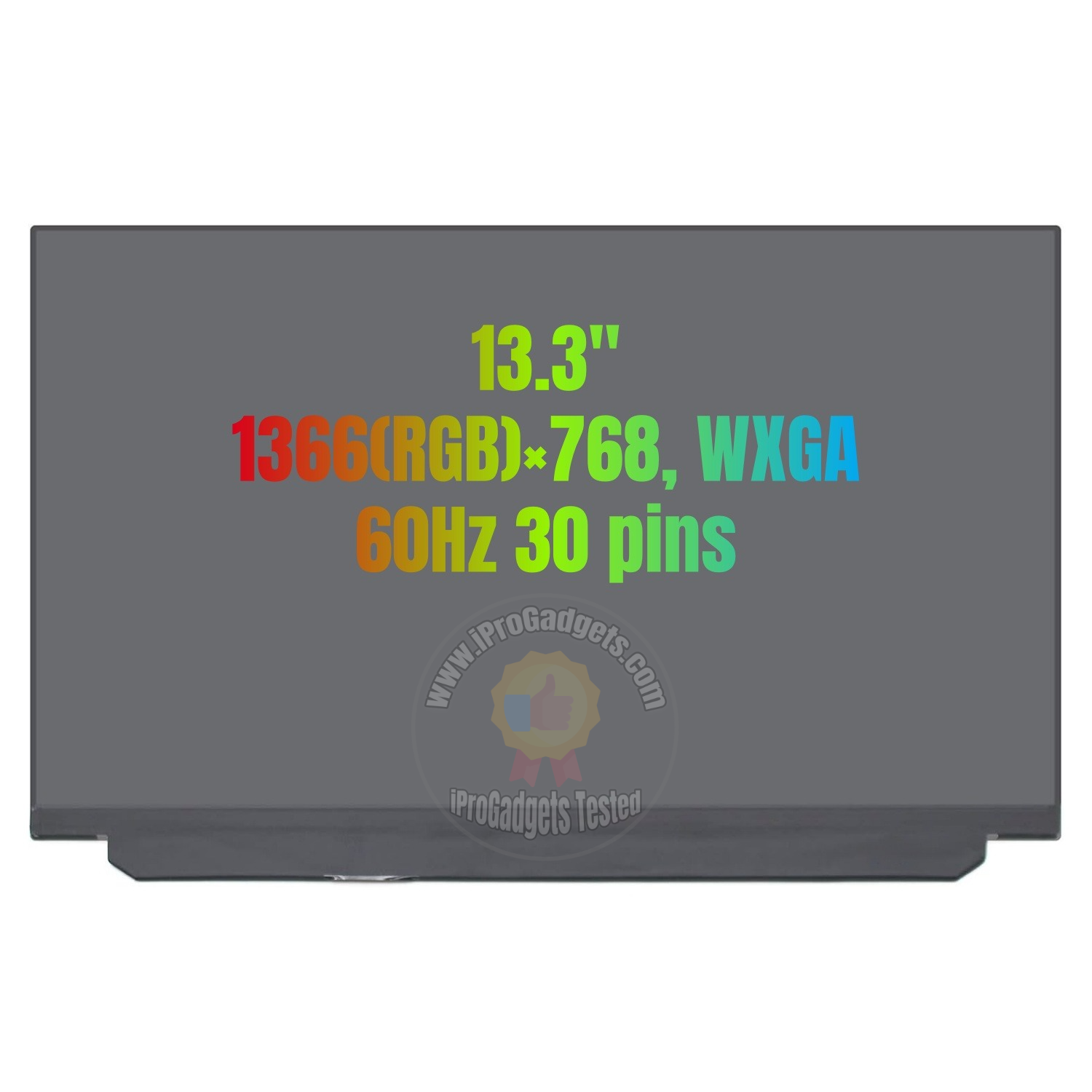

Quick answer: this is a brand-new 13.3 inch non-touch replacement LCD panel for the Latitude 3300 and the Latitude 3310 — 1366 x 768 HD at 60 Hz on a 30-pin eDP connector, 220 cd/m², matte anti-glare, double tested before shipping and covered by a 30-day return window on unused, uninstalled parts. This is the HD panel, not the touch panel. Both machines also shipped with a higher-resolution touch assembly on a wider connector, which is a different part that we list separately. Send us the full code from the label on the screen you are removing and we will confirm which panel we are shipping before dispatch.
- Fit: The Latitude 3300 and Latitude 3310 — a display-only HD panel with the face mounting holes top and bottom this chassis screws to, no touch layer
- Panel: a-Si TFT-LCD TN, matte anti-glare, 306.3 x 194.85 mm panel with face mounting holes top and bottom, 220 cd/m²
- Testing: every unit is double tested before shipping — display, touch and fitment
Technical Specifications
| Item | Detail |
|---|---|
| Screen size | 13.3 inches diagonal (33.8 cm), 16:9 |
| Resolution | 1366 x 768 px (WXGA HD) |
| Refresh rate | 60 Hz |
| Panel technology | a-Si TFT-LCD, TN, normally white, transmissive — matte anti-glare surface with hard coating 3H, WLED edge-lit backlight with the LED driver on the panel board |
| Brightness | 220 cd/m² typical |
| Touch | Non-touch, display-only panel. The touch version of these two machines is a bonded assembly on a wider connector and does not interchange with this bare panel |
| Signal interface | eDP 1.2, 1 lane, 30-pin FPC (I-PEX 20455-030E class), 3.3 V |
| Connector position | Bottom right, viewed from the back of the panel |
| Outline dimensions | 306.3 x 194.85 x 2.85 to 3.0 mm depending on which the factory supplied |
| Mounting | Slim flat panel with eight face mounting holes along the top and bottom edges — what the Latitude 3300 and 3310 bezel screws to. Check the panel you are removing, because side-hole revisions of the same code also exist |
| Manufacturer description string | Part 2C7YD is catalogued as Liquid Crystal Display, 13.3HDF, AG, FLAT, EDP1.2, Au Optronics Corp, which is the factory record that ties that service code to a flat anti-glare panel rather than a touch assembly |
| NOT the touch assembly | Both machines also shipped with a higher-resolution touch panel on a wider connector, service part 6GHX8. That is a bonded assembly rather than a bare panel and does not interchange with this part; we list it separately on our store |
| NOT the Latitude 3301 / 5300 / 7300 | Those machines take their own 13.3 inch HD code (YTXJK) on a different frame, so order by the code printed on your own label rather than by machine family |
| Condition | Brand-new, unassembled |
| Quality | iProGadgets OEM Quality |
Compatibility
| Device | Model numbers / part codes |
|---|---|
| For Latitude 3300 | All models — the 13.3 inch HD non-touch screen |
| For Latitude 3310 | All models — the same 13.3 inch HD non-touch panel and the same service parts |
| Same panel listed separately | The identical 306.3 x 195.2 mm panel is also the HD screen for the ProBook 430 G5, and we list that machine on its own, so a search for either machine finds both listings |
| NOT the touch assembly | Service part 6GHX8 is the higher-resolution touch screen for these machines — a bonded assembly on a wider connector, not this bare panel. We list it separately |
| NOT the Latitude 3301 / 5300 / 7300 | Those machines take a different 13.3 inch HD code on a different frame, so match against the code on your own label |
Before We Ship — Please Send Us These 3 Details
Laptop, all-in-one and desktop PC screens can differ between revisions of the same model, so the listing alone cannot always tell us which panel is inside your machine. After you place the order we will contact you for the three items below — please send them so we can confirm the fitment and ship the correct, fully compatible screen straight away:
- A photo of your computer. A clear photo of the laptop itself, plus the model / service label on the bottom cover (or the model name shown in Settings → About).
- Touch or non-touch, resolution and refresh rate. Tell us whether your screen is a touch screen or a non-touch screen, its resolution, and its refresh rate in Hz. If you are not sure, just send the model number and we will check it for you.
- Photos of your old screen. Once the machine is opened, a full photo of the back of the old screen and a close-up of the label or barcode sticker on it. That label carries the exact panel part number, which removes any doubt about which screen you need.
We check your photos against our stock before dispatch. If something does not match, we will contact you first instead of sending a part that may not fit. Once your details are confirmed, we arrange shipment within 1 to 3 business days. Thank you for helping us get it right.
Installation Notes
- Clean the flex cable with alcohol before installation and confirm that it is well connected.
- Do not pull, tear or push on the flex cable, be careful during installation.
- Before installing the screen, please remove the battery in advance.
- Please tap the screen carefully, because the screen is too fragile to damage.
Quality Control
Strictly tested by the iProGadgets QC Team — every unit is double tested before shipping and ships in good working order. After receiving the part, please check the appearance and test it first: connect the part to the motherboard for a functional test before full installation, and only install once everything works. We are not responsible for any installation mistakes — if you are not experienced with screen replacement, have the part fitted by a professional repair shop.
Shipping
We ship worldwide. Orders are dispatched within 1 to 3 business days, and every package carries a tracking number you can follow on the order page. Delivery typically takes 7 to 10 days after dispatch.
Returns & Warranty
30-day returns on unused, uninstalled parts. The warranty is valid until installed — once a screen has been fitted, the return window no longer applies, which is why we ask you to test before installation.
FAQs
How do I check whether my Latitude 3300 or 3310 needs this HD panel?
Take the screen you are removing out, lay it face down and read the barcode label on the back. This panel answers for the codes J4MTV, 2C7YD and 0DTMD6. It measures about 306.3 x 194.85 mm and has screw holes along the top and bottom edges. If your label carries a different code, or if the panel in your machine is a bonded touch assembly with a glass front rather than a bare matt panel, send us a photo of the label and we will tell you honestly which part you need.
Is this the touch screen or the non-touch screen?
This is the non-touch display-only panel — the screen on its own, with no touch layer or digitizer bonded to it, and it connects with a narrow connector. The touch version of the Latitude 3300 and 3310 is a different assembly on a wider connector and we list it separately. The quick check is the surface: if the screen you are removing responds to finger or stylus input, you need the touch assembly, not this panel.
Which part number do I need — J4MTV, 2C7YD or 0DTMD6?
All three are the same 13.3 inch HD non-touch panel for these two machines, catalogued under different service codes, so any of them can be replaced by the panel in this listing. They are listed under different factory records (J4MTV and 0DTMD6, 2C7YD ), which is why the label may show either panel model. Match on size, resolution, matte finish and the 30-pin connector, and send us the label photo if you want us to confirm it before dispatch.
Questions about fit, shipping to your country, or bulk pricing? Email sales@iProGadget.com and we will confirm the exact part you need.
Frequently Asked Questions
Is this part compatible with my device?
This listing is for Replacement LCD Screen Display For Dell Latitude 3300 3310 J4MTV 2C7YD 13.3 inch HD Panel. It is built as a direct-fit replacement for the model named in the title. Match the model number in the title against your own device before ordering. If you are not sure which version you need, email sales@iProGadget.com and we will confirm the correct part for you.
What is the quality of these replacement parts?
We supply iProGadgets OEM Quality / Premium Compatible replacement parts. Every part is manufactured to OEM specifications, so the fit, finish and function match the original component it replaces, and each unit is individually tested before it leaves our warehouse.
Is the part tested before it is shipped?
Yes. Every part we sell is inspected before dispatch and tested wherever testing applies — screen assemblies are checked on the panel, the touch response and the connector. Orders are processed and shipped within 1-3 business days after payment is confirmed.
How long does shipping take?
Orders leave our warehouse within 1-3 business days. Express Shipping (DHL, UPS or FedEx) takes 5-8 working days and is normally used for parcels over 2 kg. Registered Air Post takes 10-20 working days and is normally used for parcels under 2 kg. Every order ships with a tracking number. Customs clearance can add extra time, especially during peak season.
Will I be charged import duties or customs fees?
Customs charges depend on your own country's import rules and its de minimis threshold, not on the seller. Some destinations apply no duty at all on lower-value parcels, and where duty or VAT does apply it is collected by your local post office or courier before delivery. We ship every order with complete and accurate commercial documents, which is what keeps a parcel moving through customs instead of sitting in it. If you would like to estimate the charges before you order, email us your country and we will point you to the right authority.
What is your return policy?
We offer a 30-day return policy, which means you can request a return within 30 days of receiving your item. To be eligible, the item must be unused, uninstalled and in the packaging it arrived in. Once a part has been fitted, bonded or used it cannot be returned, so please test the part before installation. To start a return, email sales@iProGadget.com.
What should I do if the part arrives damaged or faulty?
Inspect your order as soon as it arrives. If an item is defective, damaged or not what you ordered, contact us at sales@iProGadget.com straight away with photos or a short unboxing video, and we will arrange a replacement or a refund.
Do you provide repair guides or installation tutorials?
No. We are a supplier of replacement parts only. We are not a repair shop, and we do not provide repair guides, tutorials or step-by-step installation support. Every part we sell is intended to be installed by a professional technician at a qualified repair shop, which also gives the best result: a technician can transfer the small components, handle the adhesives and test the finished repair. Please do not attempt the installation yourself if you have no previous repair experience, as these assemblies are fragile and incorrect handling can damage them permanently. We sell parts only and do not accept responsibility for installation carried out by the customer. Our warranty covers the part itself and remains valid until the part is installed. If a problem appears after the repair, please take the device back to the repair shop that fitted the part so they can inspect the installation and test the device.
Still have a question about this part? Email us at sales@iProGadget.com and we will confirm compatibility, shipping time or return details for you.
