Replacement LCD Screen Display For B140QAN02.3 14.0 inch WQHD Matte 300nit Panel
iProGadgets OEM Repair Parts for B140QAN02.3 14.0 inch WQHD Matte 300nit Laptop Screen Replacement — Quick Answers

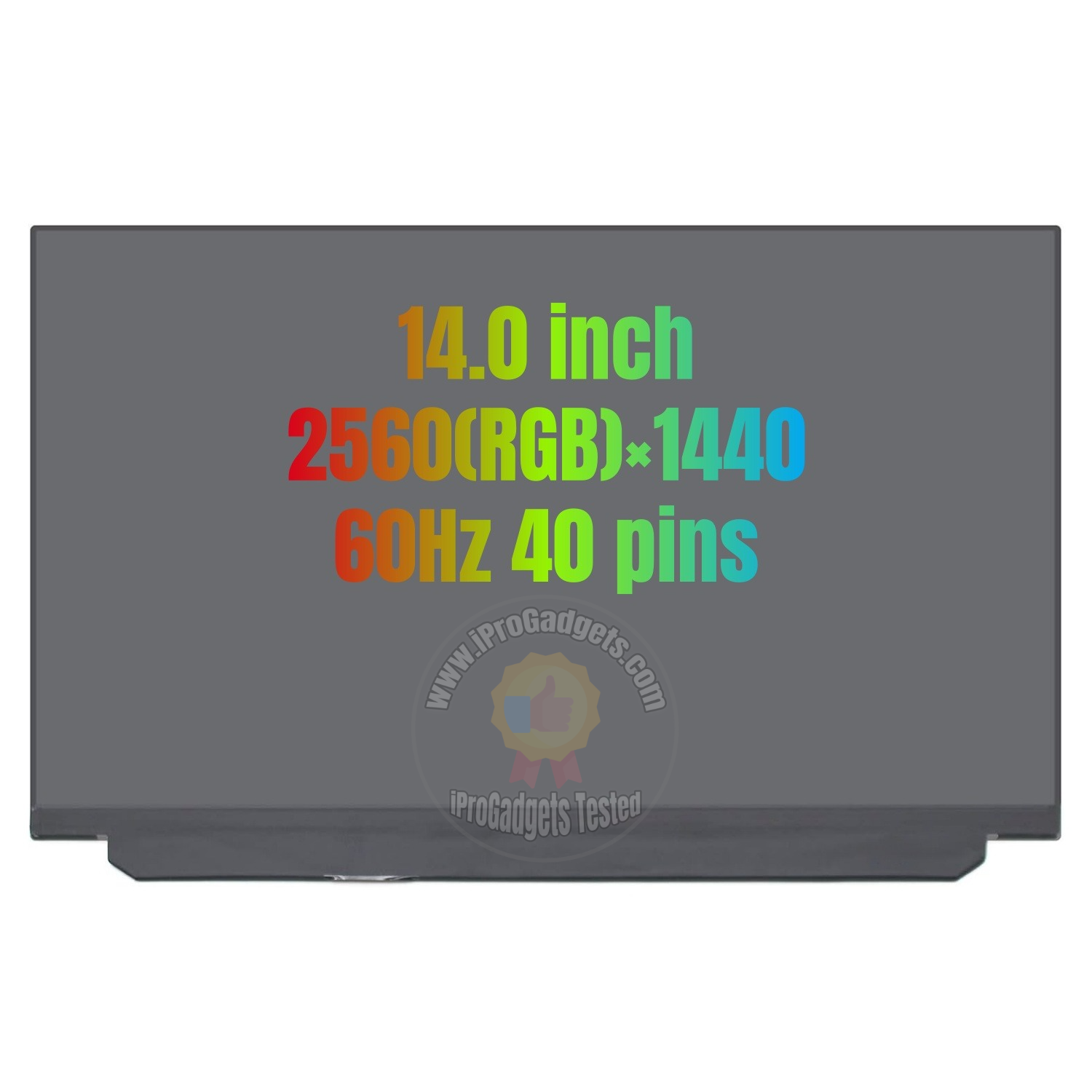

Quick answer: this is a brand-new 14.0 inch WQHD replacement LCD panel — the panel coded B140QAN02.3, the anti-glare 300 cd/m² screen at 2560 x 1440 and 60 Hz on a 40-pin eDP connector, covering 98% sRGB, double tested before shipping and covered by a 30-day return window on unused, uninstalled parts. It measures 315.05 x 195.6 mm, carries no mounting brackets, and is supplied as the bare panel — no touch layer, no digitizer, no bezel. Three things decide this order. First, the suffix and the surface: this family carries three suffixes that look identical from the front, and only the front of your old screen separates them — .0 is the glossy 500 cd/m² screen, .2 is the same glossy front at 300 cd/m², and .3 is an anti-glare front at 300 cd/m². Second, the resolution: the same laptops also shipped with a 14.0 inch Full HD screen on a smaller connector, and that panel is not interchangeable with this one. Third, the pin count on the flex. We list this panel on its own and against the machines that take it, so send us the code from the label on the back of the screen you are removing and we will confirm which panel we are shipping before dispatch.
- Fit: The 14.0 inch WQHD panel coded B140QAN02.3 — the anti-glare 300 cd/m² 40-pin eDP screen traded under service part 00NY681 for the ThinkPad X1 Carbon 5th to 8th Gen and the T480 and T480s WQHD machines
- Panel: LTPS TFT-LCD IPS-class panel (AHVA, normally black, transmissive) with a WLED edge-lit backlight and the LED driver on the panel board, an anti-glare front with a 3H hard coating, 98% sRGB, 300 cd/m², and no mounting brackets
- Testing: every unit is double tested before shipping — display, and fitment against the machine it is sold for
Technical Specifications
| Item | Detail |
|---|---|
| Panel code — this listing | B140QAN02.3. Read the code printed on the label on the back of the screen you are removing and compare the suffix: .3 is this anti-glare 300 cd/m² panel |
| Service part number | Any of those strings on your label points at this screen. We list the panel by its own code rather than by a brand prefix, so send us whatever is printed and we will match it |
| Screen size | 14.0 inches diagonal (35.6 cm), 16:9 |
| Resolution | 2560 x 1440 px (WQHD), 210 PPI |
| Refresh rate | 60 Hz |
| Panel technology | LTPS TFT-LCD, IPS-class wide-viewing-angle panel (AHVA), normally black, transmissive, 16.7M colours, with a WLED edge-lit backlight and the LED driver on the panel board |
| Brightness | 300 cd/m² typical — the standard bin. If your machine was ordered with the glossy 500 cd/m² WQHD screen instead, a replacement from this bin looks dimmer than the screen it replaces: that is a production difference between versions, not a fault |
| Colour gamut | 98% sRGB (72% NTSC) — the standard-gamut bin. This is not the 100% Adobe RGB screen, so a machine that came with the wide-gamut glossy panel shows flatter colour on this one. State it here so it is not a surprise after fitting |
| Surface finish | Anti-glare (matte) with a 3H hard coating — this is the non-reflective front, which is the whole point of this suffix. The .0 and .2 suffixes are the glossy versions of the same frame, so a mirror-like front on the screen you are removing means you need one of those instead |
| Touch | No — this is the non-touch panel supplied on its own, with no touch layer and no digitizer glass. If the screen you are removing responds to your finger, you need the touch assembly instead and this panel is not it |
| Signal interface | eDP, 4 lanes, 40-pin connector, eDP1.3, 3.3 V — the plug is about 25 mm across with 0.5 mm contact pitch. The connector and the lane count are the same as the rest of the family; only the link revision printed in the panel record differs, and the machines below run a 4-lane eDP link either way |

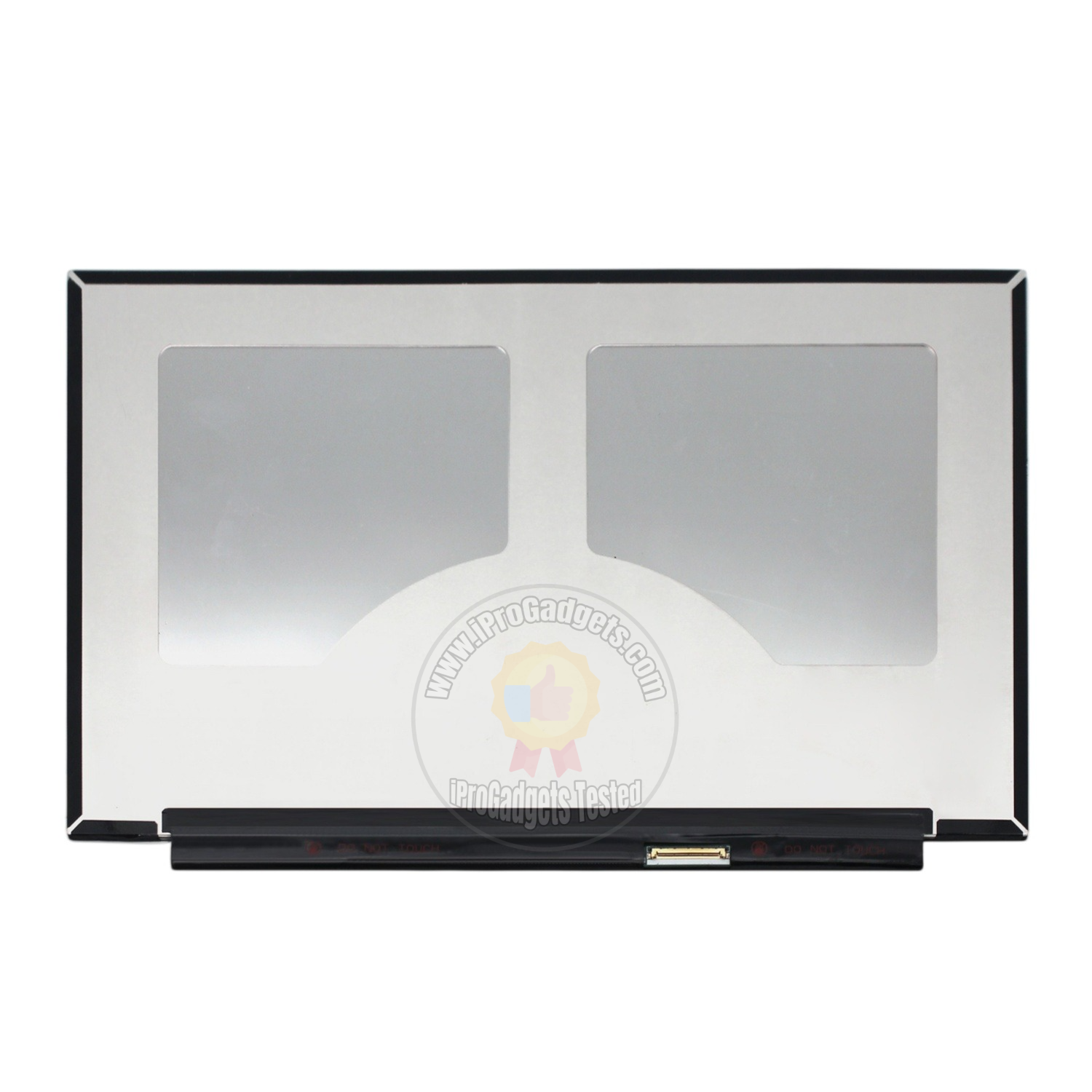

| Connector position | Bottom right, viewed from the back of the panel |
| Outline and mounting | 315.05 mm wide x 195.6 mm high x 2.4 mm deep, active area 309.35 x 174.01 mm, slim profile. No screw brackets and no lugs: the panel is held by the bezel assembly, and we supply it on its own, so have fresh adhesive ready before you start |
| NOT the Full HD panel | The X1 Carbon and T-series machines also shipped with a 14.0 inch Full HD 1920 x 1080 panel on a 30-pin connector. A 30-pin panel and a 40-pin panel are not interchangeable, and a Full HD machine does not drive this WQHD screen correctly. Count the contacts on the flex of the screen you are removing: about 20 mm across is the 30-pin Full HD part and about 25 mm is the 40-pin WQHD panel |
| NOT a touch screen and not a whole display assembly | This is the bare non-touch panel — no touch layer, no digitizer, no display bezel, no rear cover, no hinges and no camera module. If the screen you are removing responds to your finger, or if you need the complete display assembly, tell us before ordering |
| Condition | Brand-new, unassembled |
| Quality | iProGadgets OEM Quality |
Compatibility
| Device | Model numbers / part codes |
|---|---|
| Panel code covered — this listing | B140QAN02.3 (service part 00NY681) |
| Machine coverage — supplier-quoted | The list is still a supplier list rather than the document for your own machine, so send us your label code and we will confirm before dispatch |
| NOT the Full HD panel | These families also shipped with 14.0 inch Full HD 1920x1080 panels on a 30-pin connector. Different resolution, different pin count, different part — a Full HD machine will not drive this WQHD panel |
| NOT a touch assembly or a full display | This listing is the non-touch screen panel on its own. Touch screens for these machines are separate assemblies with the digitizer built in, and they are not interchangeable with this bare panel |
Before We Ship — Please Send Us These 3 Details
Laptop, all-in-one and desktop PC screens can differ between revisions of the same model, so the listing alone cannot always tell us which panel is inside your machine. After you place the order we will contact you for the three items below — please send them so we can confirm the fitment and ship the correct, fully compatible screen straight away:
- A photo of your computer. A clear photo of the laptop itself, plus the model / service label on the bottom cover (or the model name shown in Settings → About).
- Resolution, surface and pin count. Tell us whether your screen is 2560 x 1440 or 1920 x 1080, whether the front is glossy or matte, and whether it is a touch screen. If you are not sure, send a photo of the front and of the back of the panel and we will read it for you.
- Photos of your old screen. Once the machine is opened, a full photo of the back of the old screen and a close-up of the label or barcode sticker on it. That label carries the exact panel part number, which removes any doubt about which screen you need.
We check your photos against our stock before dispatch. If something does not match, we will contact you first instead of sending a part that may not fit. Once your details are confirmed, we arrange shipment within 1 to 3 business days. Thank you for helping us get it right.
Installation Notes
- Clean the flex cable with alcohol before installation and confirm that it is well connected.
- Do not pull, tear or push on the flex cable, be careful during installation.
- Before installing the screen, please remove the battery in advance.
- Please tap the screen carefully, because the screen is too fragile to damage.
Quality Control
Strictly tested by the iProGadgets QC Team — every unit is double tested before shipping and ships in good working order. After receiving the part, please check the appearance and test it first: connect the part to the motherboard for a functional test before full installation, and only install once everything works. We are not responsible for any installation mistakes — if you are not experienced with screen replacement, have the part fitted by a professional repair shop.
Shipping
We ship worldwide. Orders are dispatched within 1 to 3 business days, and every package carries a tracking number you can follow on the order page. Delivery typically takes 7 to 10 days after dispatch.
Returns & Warranty
30-day returns on unused, uninstalled parts. The warranty is valid until installed — once a screen has been fitted, the return window no longer applies, which is why we ask you to test before installation.
FAQs
How do I check that B140QAN02.3 is the panel I need?
Open the machine, lay the screen face down and read the label on the back of the panel. This listing answers for the code B140QAN02.3 and for the service parts quoted for it, and the panel should be 2560 x 1440 on a 14.0 inch anti-glare front with a 40-pin connector at the bottom right and no screw tabs anywhere on the frame. If the label carries a different suffix, or the front of the screen you are removing is glossy, send us a photo and we will point you at the right version.
What is the difference between B140QAN02.3 and the .0 and .2 versions?
The frame is identical — 315.05 x 195.6 mm, 40-pin eDP at the bottom right, no brackets, 2560 x 1440 at 60 Hz. The difference is the front surface and the brightness: .3 is anti-glare at 300 cd/m² with 98% sRGB, .2 is glossy at 300 cd/m², and .0 is glossy at 500 cd/m² with 100% Adobe RGB on a QLED backlight. Hold the screen you are removing under a light: if the reflection is a hard mirror you need a glossy suffix, and if it is a soft blur you already have this one.
Will this panel fit my machine if it has the Full HD screen?
No. The 14.0 inch Full HD panels used in these families sit on a 30-pin connector, while this WQHD panel uses a 40-pin connector — the two plugs are physically different widths and the machine does not drive the wrong resolution correctly. Count the contacts on the flex of the screen you are removing: about 20 mm across is the 30-pin Full HD panel and about 25 mm is the 40-pin panel in this listing.
Questions about fit, shipping to your country, or bulk pricing? Email sales@iProGadget.com and we will confirm the exact part you need.
