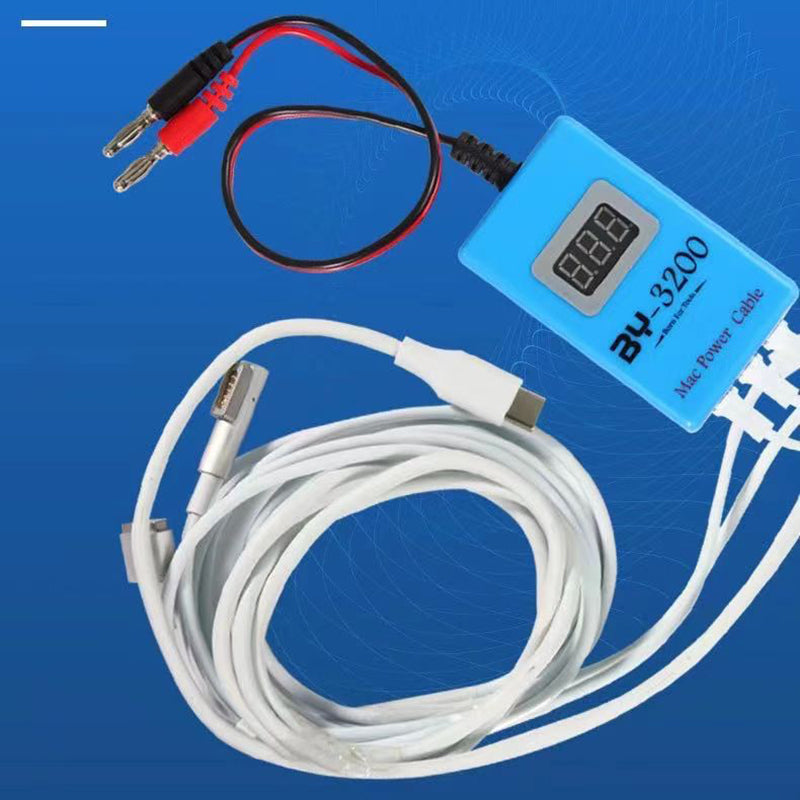

BY-3200 MAC Power Cable Boot Line for Macbook Support Single Board System Entering Type C Interface Fast Charger Test iBoot Line
Compared with other chargers and power lines, it has the following advantages:
1. Support full range of Macbook fast charging from 2008 to 2021
2. Support the power meter to see the current, and help maintenance enthusiasts quickly judge the motherboard fault.
3. Support the whole series of Macbook boards booting into the system (to solve the problem that the battery is not installed, the signal of "BATLOW" which leads to the problem of not starting the machine)
4. Support new fast charging and single board startup with T2 chip and M1 chip (15.4 inch and 16 inch without battery connection, single board boot into the system)

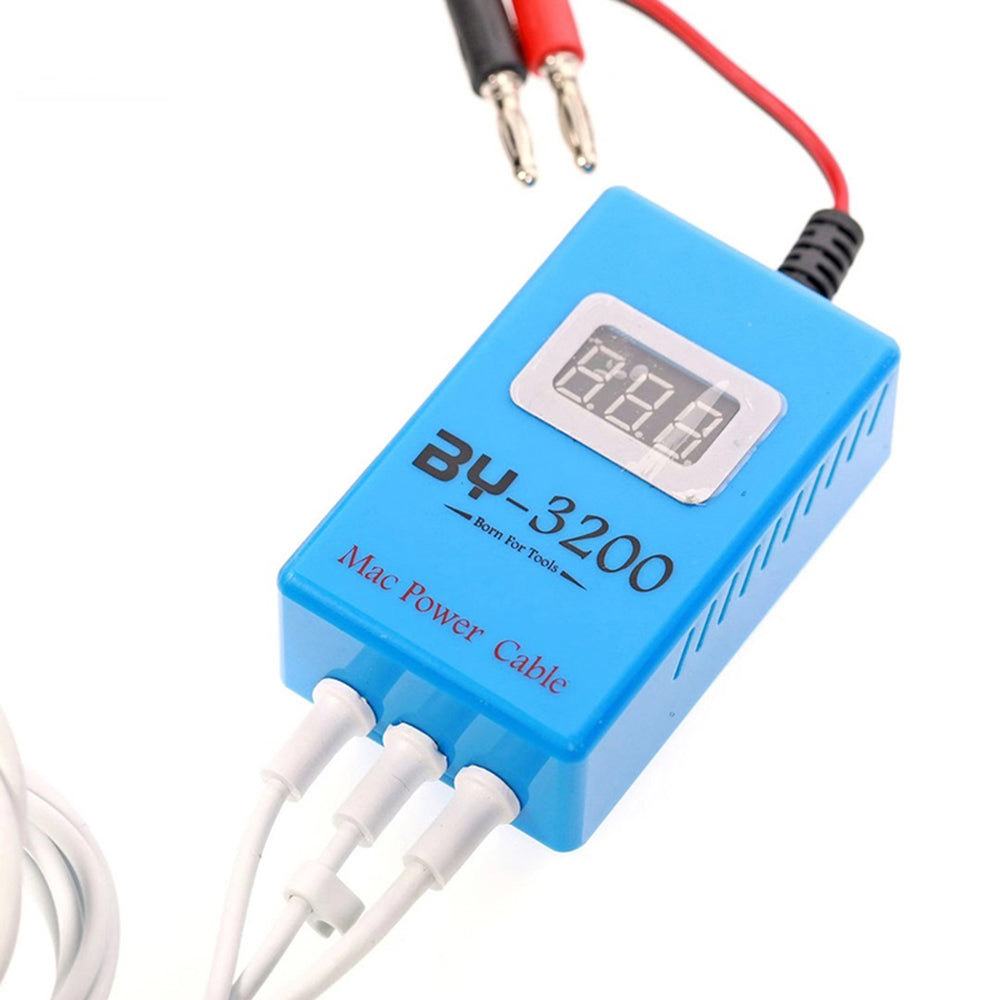

5. Add LCD digital display tube (when using type-C cable, you can see the voltage input from the motherboard through the display tube)
6. The LCD on / off switch is mainly used to control the LCD nixie tube (when the T head or L head is used, the display of the LCD nixie tube can be turned off)
7. It has five protection functions of intelligent power supply (overcharge protection, over-current protection, over-voltage protection, constant temperature protection and short-circuit protection)
Includes three power connector
1. L head is suitable for 11 inch, 13.3 inch ,15.4 inch and 17inch MacBook, MacBook Air and MacBook Pro machines from 2008 to 2011
2. T head is suitable for 11 inch, 13.3 inch and 15.4 inch MacBook Air and MacBook Pro machines from 2012 to 2015.
3. TYPE_ C connector is suitable for 12 inch, 13.3 inch, 15.4 inch and 16 inch MacBook, MacBook Air and MacBook Pro machines in 2015-2021 (And support band type_ C interface flat and mobilephone fast charge, through the power meter to see the current to judge the fault).
