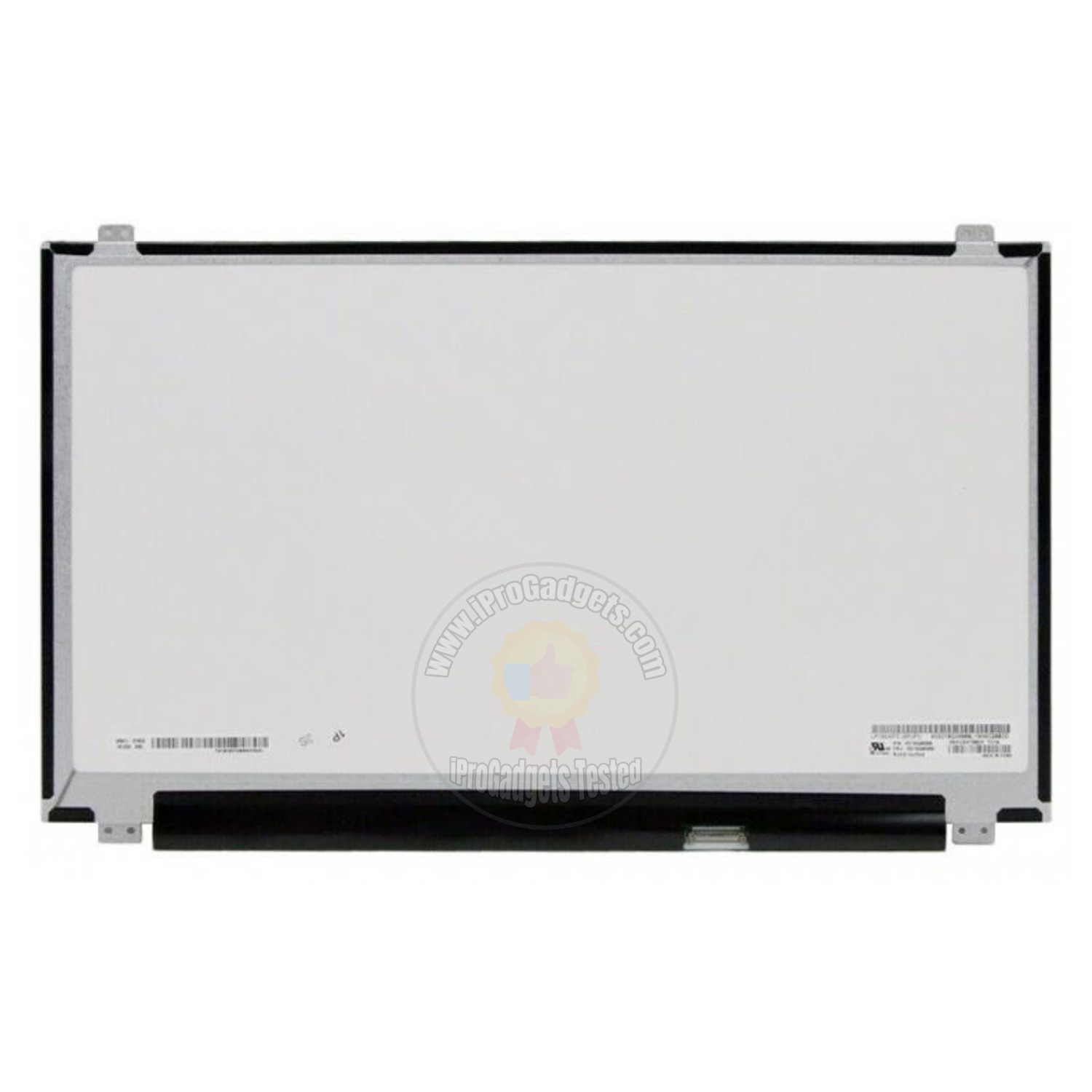

Replacement LCD Screen Display For N156HCE-EAA 15.6 inch FHD 1920x1080 Panel
iProGadgets OEM Repair Parts for N156HCE-EAA 15.6 inch FHD 1920x1080 Laptop Screen Replacement — Quick Answers

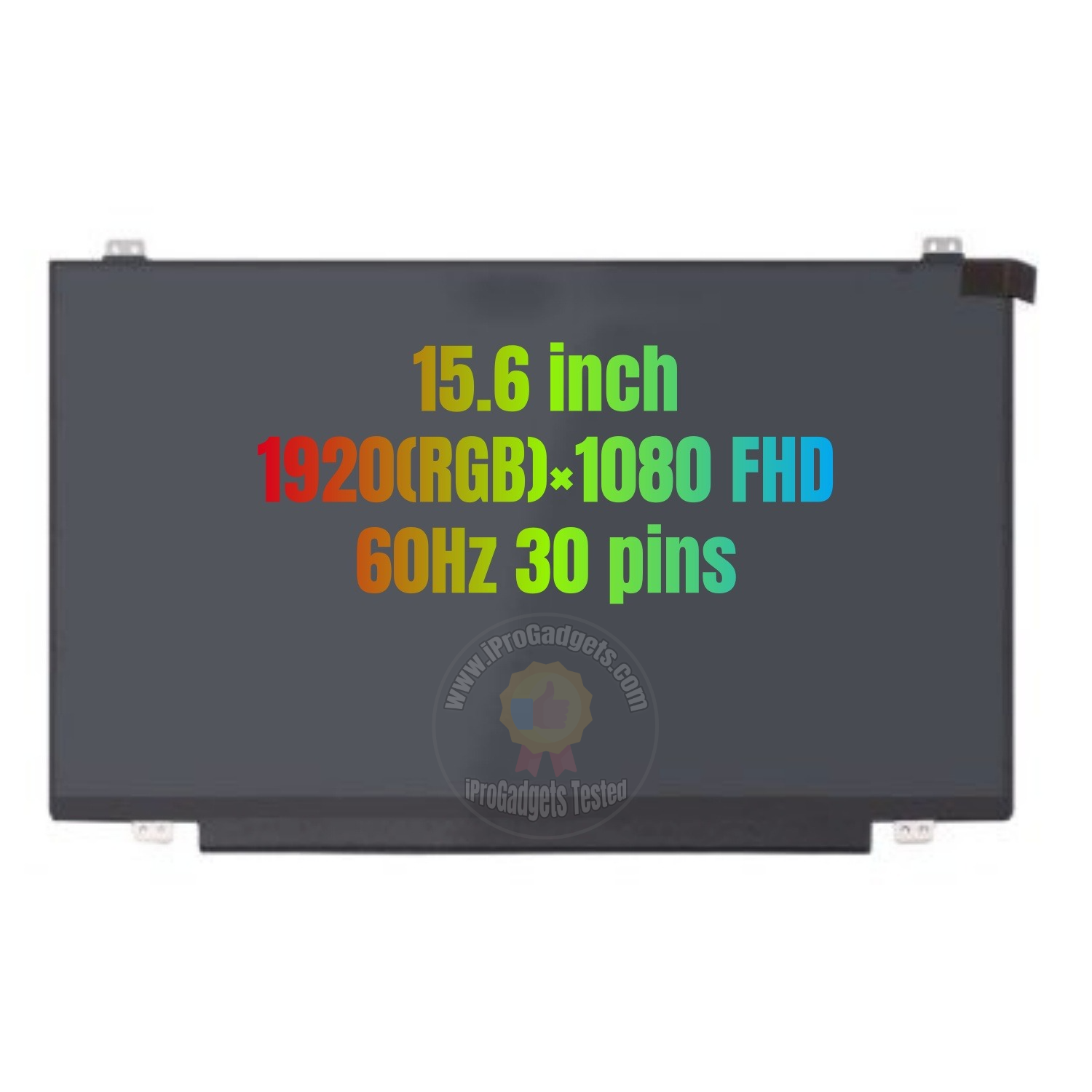

Quick answer: this is a replacement display panel for the N156HCE-EAA (Rev.C1) — 15.6″, AAS normally black LCD, 1920 x 1080 px (FHD), 60 Hz, 250 cd/m², 700:1 contrast, 89/89/89/89 viewing angle, matte, 30-pin eDP, non-touch, double tested before shipping and backed by a 30-day return window on unused, uninstalled parts. Check the HC prefix before ordering. The closely related N156HCA-EAA has a similar electrical specification but a different outline size, and the N156HCE-EN1 is a brighter 300 cd/m² wide-gamut version — same size, same resolution, same 30-pin connector, but different panels. If you are not sure which one your machine takes, send us the part code from the label before ordering.
- Fit: Compatible with 15.6″ FHD laptops that use the 30-pin eDP N156HCE-EAA panel, Machine part numbers cross-referenced for this panel are listed in the specification table. This is the 60 Hz matte non-touch panel — 120 Hz and faster panels use 40-pin connectors and different codes, and the touch version of this panel is a different assembly. Send us the machine model or a photo of the label and we will confirm before dispatch
- Panel: AAS (normally black, wide viewing angle) LCD, non-touch, matte finish, 30-pin eDP
- Testing: every unit is double tested before shipping — display, backlight and fitment
Technical Specifications
| Item | Detail |
|---|---|
| Panel model | For the N156HCE-EAA (Rev.C1) |
| Screen size | 15.6 inches diagonal |
| Resolution | 1920 x 1080 px (FHD) |
| Refresh rate | 60Hz |
| Pixel density | 141 ppi |
| Aspect ratio | 16:9 |
| Pixel format | RGB vertical stripe |
| Panel technology | a-Si TFT-LCD, LCM (Liquid Crystal Module), AAS, normally black, transmissive, symmetrical viewing direction |
| Brightness | 250 cd/m² (typical) |
| Contrast ratio | 700:1 (typical, TM) |
| Viewing angle | 89 / 89 / 89 / 89 (typical, CR>=10) |
| Colour depth | 262K (6-bit), 45% NTSC |
| Colour coverage note | One factory record states the colour coverage as sRGB 66% / AdobeRGB 50% / DCI-P3 49% and the NTSC ratio as 47%; others quote 45% NTSC. We list the conservative figure and mention the fuller coverage here so you are not surprised |
| Response time | 14 / 11 ms (typical, Tr / Td) |
| Surface | Matte (anti-glare) with 3H hard coating |
| Backlight | WLED (White LED), 15,000 hours rated, LED driver included in the panel |
| Signal interface | eDP, 2 lanes, eDP 1.2, 30-pin, 3.3V, 19 mm socket, 0.5 mm pitch |
| Frame profile | Slim (PCBA flat, thickness 3.2 mm or less), landscape |
| Mounting | Face mounting holes on the up and down slugs. Some sellers have the edge tabs removed for universal compatibility — check your own screen before ordering if bracket position matters |
| Active area | 344.16 x 193.59 mm |
| Operating temperature | 0 to 50 °C |
| Storage temperature | -20 to 60 °C |
| Versions seen | Base N156HCE-EAA plus Rev.C1 and Rev.C2 revisions. Rev.C1 is the version commonly listed for the ThinkPad L560. Name your version in the order notes and we will confirm what we can ship |
| Touch | Display-only panel (no touch layer) |
| Lenovo registration code | One catalogue lists LEN40BA as the Lenovo registration code for this panel. Lenovo registration codes are reused across panel variants, so treat this as a cross reference and check the panel code on your label |
| Panels cross-referenced with this fitment | For B156HAN06.1; for Display LP156WFC-SPP1 / LP156WFC-SPP2; for LM156LF6L01. These are listed by retailers as fitting the same machines — compare the label before ordering, they are separate panels |
| NOT a high-refresh panel | 120 Hz and faster 15.6″ panels use 40-pin connectors and different part codes — they are not covered by this listing |
| Condition | Brand-new, unassembled |
| Quality | iProGadgets OEM Quality |
Compatibility
| Device | Model numbers |
|---|---|
| Panel codes | N156HCE-EAA, N156HCE EAA, N156HCE-EAA Rev.C1, N156HCE-EAA Rev.C2 |
| Where to confirm fitment | Send the machine model, or a photo of the label on the back of the screen you are removing — we will check it against our stock before dispatch |
Before We Ship — Please Send Us These 3 Details
Laptop, all-in-one and desktop PC screens can differ between revisions of the same model, so the listing alone cannot always tell us which panel is inside your machine. After you place the order we will contact you for the three items below — please send them so we can confirm the fitment and ship the correct, fully compatible screen straight away:
- A photo of your computer. A clear photo of the laptop itself, plus the model / service label on the bottom cover (or the model name shown in Settings → About).
- Touch or non-touch, resolution and refresh rate. Tell us whether your screen is a touch screen or a non-touch screen, its resolution, and its refresh rate in Hz. If you are not sure, just send the model number and we will check it for you.
- Photos of your old screen. Once the machine is opened, a full photo of the back of the old screen and a close-up of the label or barcode sticker on it. That label carries the exact panel part number, which removes any doubt about which screen you need.
We check your photos against our stock before dispatch. If something does not match, we will contact you first instead of sending a part that may not fit. Once your details are confirmed, we arrange shipment within 1 to 3 business days. Thank you for helping us get it right.
Installation Notes
- Clean the flex cable with alcohol before installation and confirm that it is well connected.
- Do not pull, tear or push on the flex cable, be careful during installation.
- Before installing the screen, please remove the battery in advance.
- Please tap the screen carefully, because the screen is too fragile to damage.
Quality Control
Strictly tested by the iProGadgets QC Team — every unit is double tested before shipping: the display is checked for dead pixels and uniformity, the backlight is checked for brightness and flicker, and the connector and flex are checked for fit. Only panels that pass both tests are packed. Quality wording: iProGadgets OEM Quality.
Shipping and Delivery
We ship within 1 to 3 business days after the order is confirmed. Each screen is wrapped in protective foam and packed in a strong corrugated carton to survive transit. We ship worldwide with tracked shipping so you can follow the parcel from dispatch to delivery.
Returns & Warranty
Every panel is covered by a 30-day return window on unused, uninstalled parts. Our warranty is valid until installed — once the screen is fitted we cannot take it back, so please confirm the fitment with us before installation. If the panel arrives damaged or does not match what you ordered, contact us within 30 days and we will make it right.
Questions before you order? Send us the machine model or a photo of the label on the back of the screen you are replacing, and we will confirm the fitment before you buy. Email sales@iProGadget.com — we reply within one business day.
Before We Ship — Please Send Us These 3 Details
Laptop, all-in-one and desktop PC screens can differ between revisions of the same model, so the listing alone cannot always tell us which panel is inside your machine. After you place the order we will contact you for the three items below — please send them so we can confirm the fitment and ship the correct, fully compatible screen straight away:
- A photo of your computer. A clear photo of the laptop itself, plus the model / service label on the bottom cover (or the model name shown in Settings → About).
- Touch or non-touch, resolution and refresh rate. Tell us whether your screen is a touch screen or a non-touch screen, its resolution, and its refresh rate in Hz. If you are not sure, just send the model number and we will check it for you.
- Photos of your old screen. Once the machine is opened, a full photo of the back of the old screen and a close-up of the label or barcode sticker on it. That label carries the exact panel part number, which removes any doubt about which screen you need.
We check your photos against our stock before dispatch. If something does not match, we will contact you first instead of sending a part that may not fit. Once your details are confirmed, we arrange shipment within 1 to 3 business days. Thank you for helping us get it right.
Installation Notes
- Clean the flex cable with alcohol before installation and confirm that it is well connected.
- Do not pull, tear or push on the flex cable, be careful during installation.
- Before installing the screen, please remove the battery in advance.
- Please tap the screen carefully, because the screen is too fragile to damage.
Quality Control
Strictly tested by the iProGadgets QC Team — every unit is double tested before shipping and ships in good working order. After receiving the part, please check the appearance and test it first: connect the new part to the motherboard for a functional test before full installation, and only install once everything works. We are not responsible for any installation mistakes — if you are not experienced with screen replacement, have the part fitted by a professional repair shop.
Shipping
We ship worldwide. Orders are dispatched within 1 to 3 business days, and every package carries a tracking number you can follow on the order page. Delivery typically takes 7 to 10 days after dispatch.
Returns & Warranty
30-day returns on unused, uninstalled parts. The warranty is valid until installed — once a screen has been fitted, the return window no longer applies, which is why we ask you to test before installation.
FAQs
Is this a 30-pin or a 40-pin screen? One seller lists 40 pins and touch.
It is a 30-pin eDP non-touch panel in a matte finish. Every factory record for the N156HCE-EAA, plus the panel cross-reference databases and the repair shops that stock it, all say 30-pin, non-touch, matte. One retail listing describes the same code as a 40-pin glossy touch screen, which contradicts all of them on three fields at once — that page is describing a different assembly. If your screen has finger input, or your label shows a wider socket, this is not the right part.
How does the N156HCE-EAA compare with the N156HCA-EAA and the N156HCE-EN1?
All three are 15.6″, 1920 x 1080, 60 Hz, 30-pin eDP normally-black panels, so the connector will not separate them. The differences are brightness, colour and outline. This N156HCE-EAA is the 250 cd/m², 262K, 89/89/89/89 panel. The N156HCA-EAA quotes the same electrical figures but a smaller outline, so it is a different physical panel. The N156HCE-EN1 is the brighter 300 cd/m² 16.7M-colour wide-gamut version. Read the full part code on the label of the screen you are removing.
Can I use this instead of the LP156WFC or the NV156FHM panel?
Retailers cross-list all of them for the same machines, and the machine part codes overlap, so it is tempting. Treat them as separate panels and buy the one your label names. This listing covers the N156HCE-EAA; if your label reads LP156WFC or NV156FHM, order that panel instead and we will confirm from the label before dispatch.
Is this a touch screen, and what else is in the box?
This is the non-touch display panel only — no touch layer, no digitizer, no bezel, no hinges, no screws and no eDP cable. The cable is not included because on most repairs it stays with the machine and is undamaged. This is the standard base panel that repair shops use to build a touch screen assembly, so if you are assembling one yourself this is the panel you want.
Questions about fit, shipping to your country, or bulk pricing? Email sales@iProGadget.com and we will confirm the exact part you need.
Frequently Asked Questions
Is this part compatible with my device?
This listing is for Replacement LCD Screen Display For N156HCE-EAA 15.6 inch FHD 1920x1080 Panel. It is built as a direct-fit replacement for the model named in the title. Match the model number in the title against your own device before ordering. If you are not sure which version you need, email sales@iProGadget.com and we will confirm the correct part for you.
What is the quality of these replacement parts?
We supply iProGadgets OEM Quality / Premium Compatible replacement parts. Every part is manufactured to OEM specifications, so the fit, finish and function match the original component it replaces, and each unit is individually tested before it leaves our warehouse.
Is the part tested before it is shipped?
Yes. Every part we sell is inspected before dispatch and tested wherever testing applies — screen assemblies are checked on the panel, the touch response and the connector. Orders are processed and shipped within 1-3 business days after payment is confirmed.
How long does shipping take?
Orders leave our warehouse within 1-3 business days. Express Shipping (DHL, UPS or FedEx) takes 5-8 working days and is normally used for parcels over 2 kg. Registered Air Post takes 10-20 working days and is normally used for parcels under 2 kg. Every order ships with a tracking number. Customs clearance can add extra time, especially during peak season.
Will I be charged import duties or customs fees?
Customs charges depend on your own country's import rules and its de minimis threshold, not on the seller. Some destinations apply no duty at all on lower-value parcels, and where duty or VAT does apply it is collected by your local post office or courier before delivery. We ship every order with complete and accurate commercial documents, which is what keeps a parcel moving through customs instead of sitting in it. If you would like to estimate the charges before you order, email us your country and we will point you to the right authority.
What is your return policy?
We offer a 30-day return policy, which means you can request a return within 30 days of receiving your item. To be eligible, the item must be unused, uninstalled and in the packaging it arrived in. Once a part has been fitted, bonded or used it cannot be returned, so please test the part before installation. To start a return, email sales@iProGadget.com.
What should I do if the part arrives damaged or faulty?
Inspect your order as soon as it arrives. If an item is defective, damaged or not what you ordered, contact us at sales@iProGadget.com straight away with photos or a short unboxing video, and we will arrange a replacement or a refund.
Do you provide repair guides or installation tutorials?
No. We are a supplier of replacement parts only. We are not a repair shop, and we do not provide repair guides, tutorials or step-by-step installation support. Every part we sell is intended to be installed by a professional technician at a qualified repair shop, which also gives the best result: a technician can transfer the small components, handle the adhesives and test the finished repair. Please do not attempt the installation yourself if you have no previous repair experience, as these assemblies are fragile and incorrect handling can damage them permanently. We sell parts only and do not accept responsibility for installation carried out by the customer. Our warranty covers the part itself and remains valid until the part is installed. If a problem appears after the repair, please take the device back to the repair shop that fitted the part so they can inspect the installation and test the device.
Still have a question about this part? Email us at sales@iProGadget.com and we will confirm compatibility, shipping time or return details for you.
