Tooltop ET2010A Digital Oscilloscope Multimeter 1Mhz 2.5MSps Color Handheld Oscilloscope AUTO Waveform Electronic DIY Tools

  • $35.50
    Prix unitaire par
Frais de port calculés à l'étape de paiement.


iProGadgets Repair Tools Tooltop ET2010A Digital Oscilloscope Multimeter 1Mhz 2.5MSps Color Handheld Oscilloscope AUTO Waveform Electronic DIY Tools

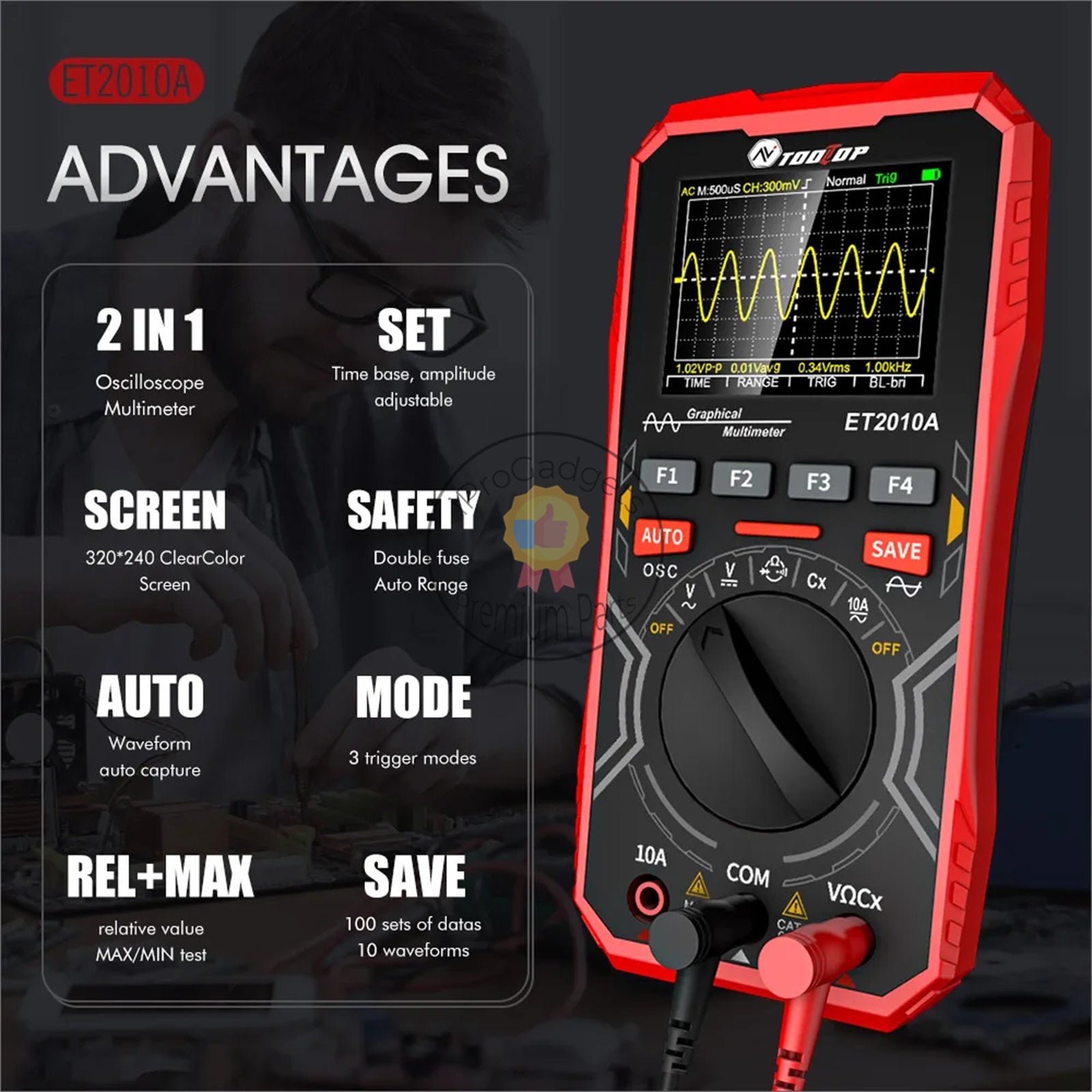

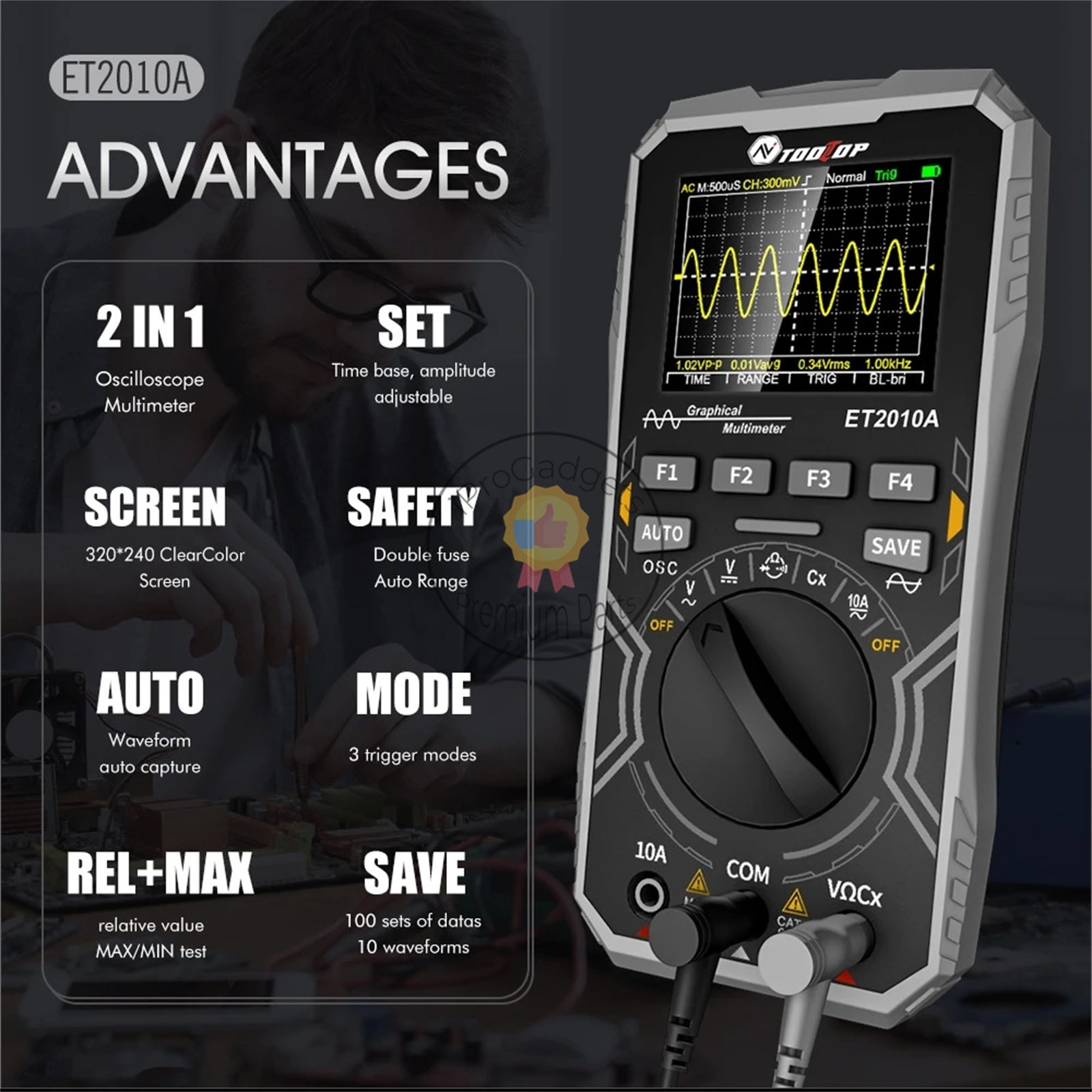

Features:

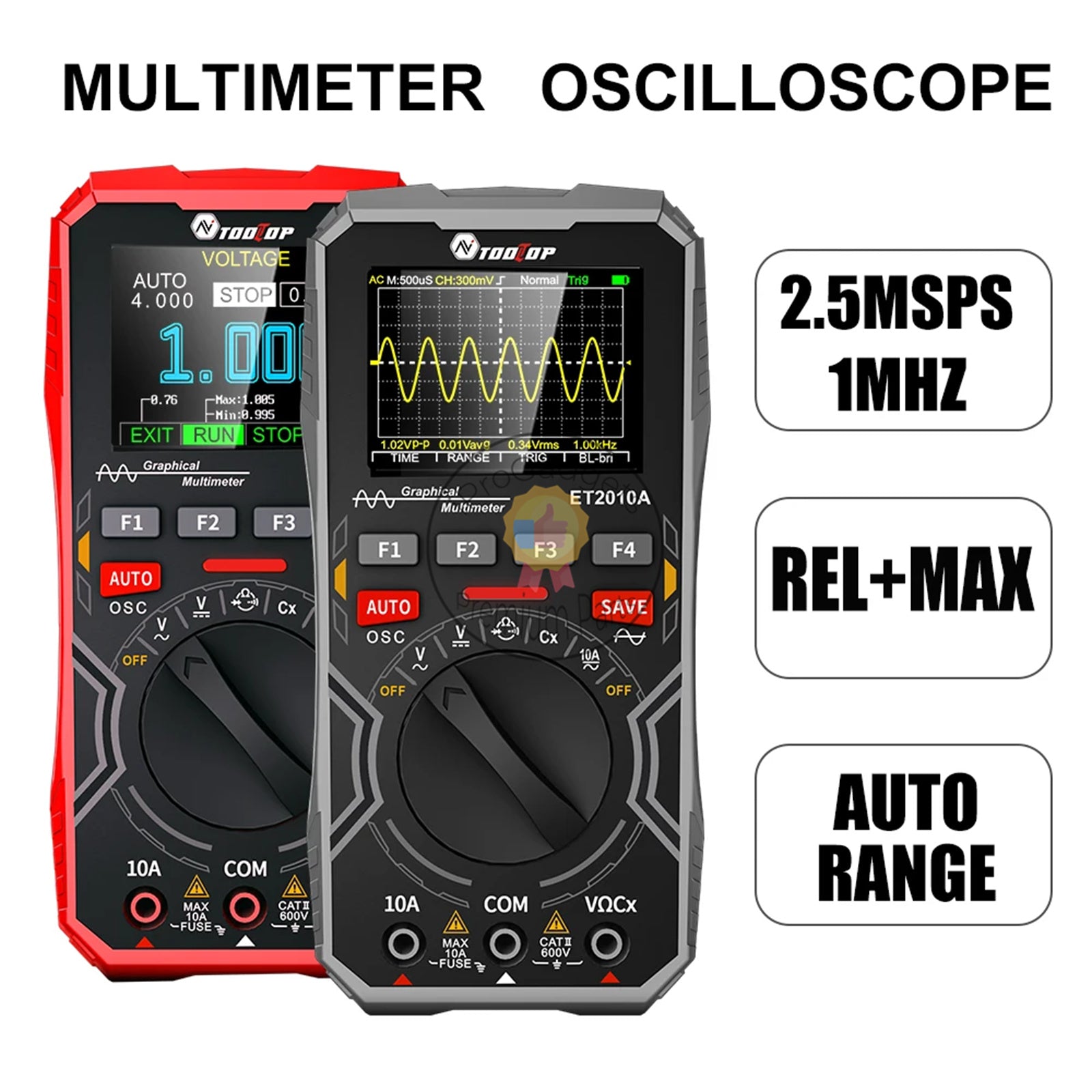

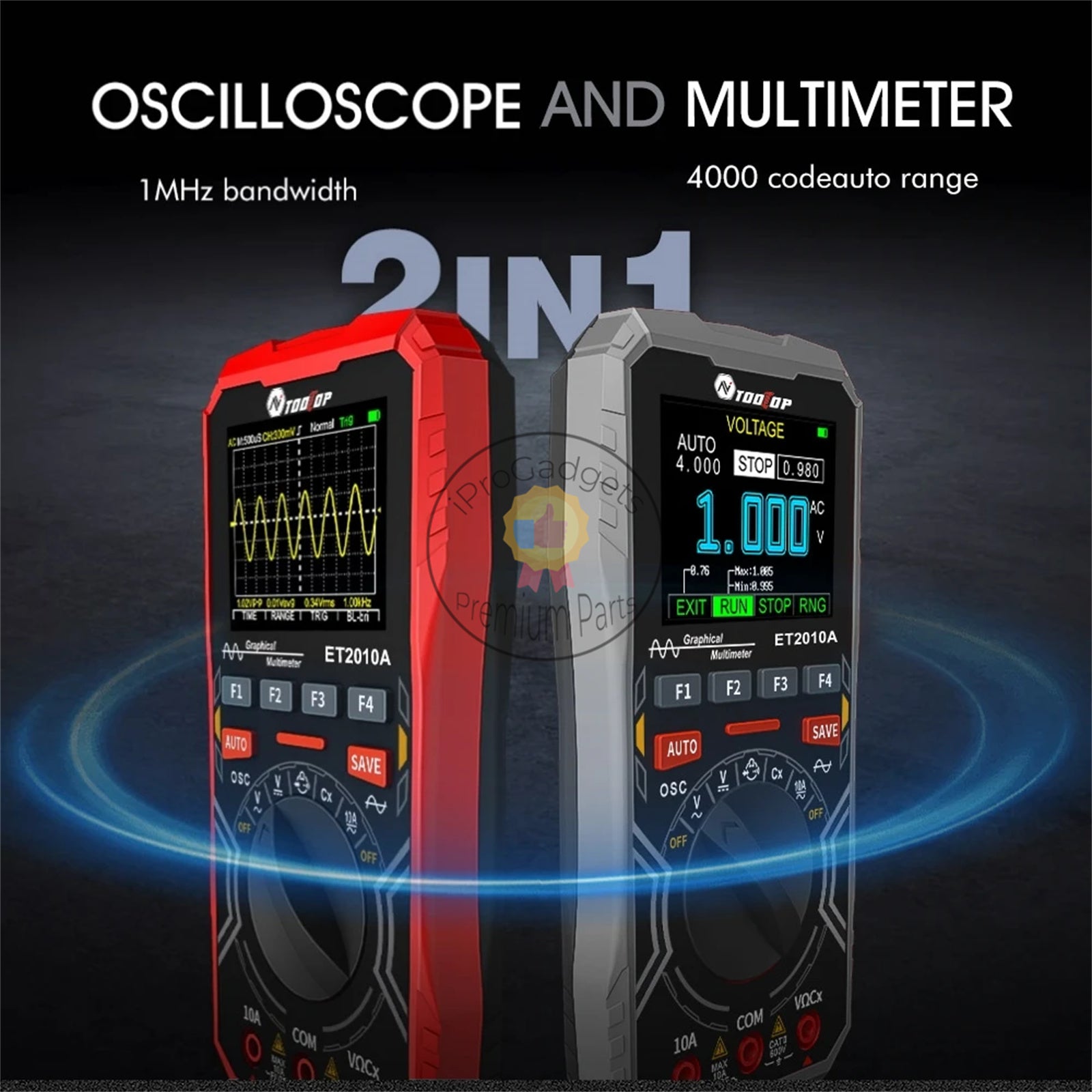

  • 2.5Msps high-speed sampling, 1MHz analog bandwidth, 4000 count digital multimeter.

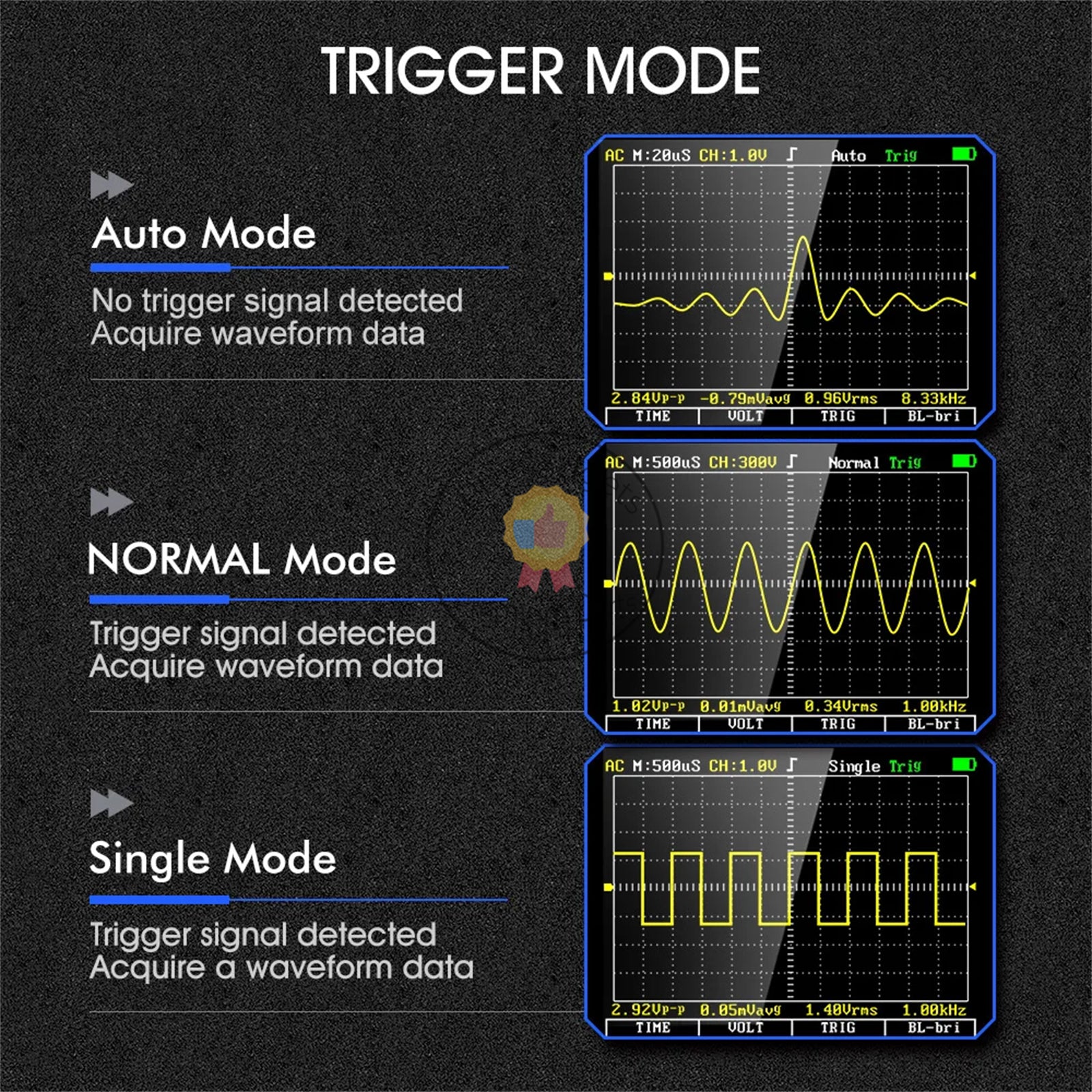

  • One-click visual wave, there are three waveform scanning modes: Automatic/Conventional/Single
  • Save function for data and waveform in the measurement; A total of 100 sets of data and 10 waveforms can be saved

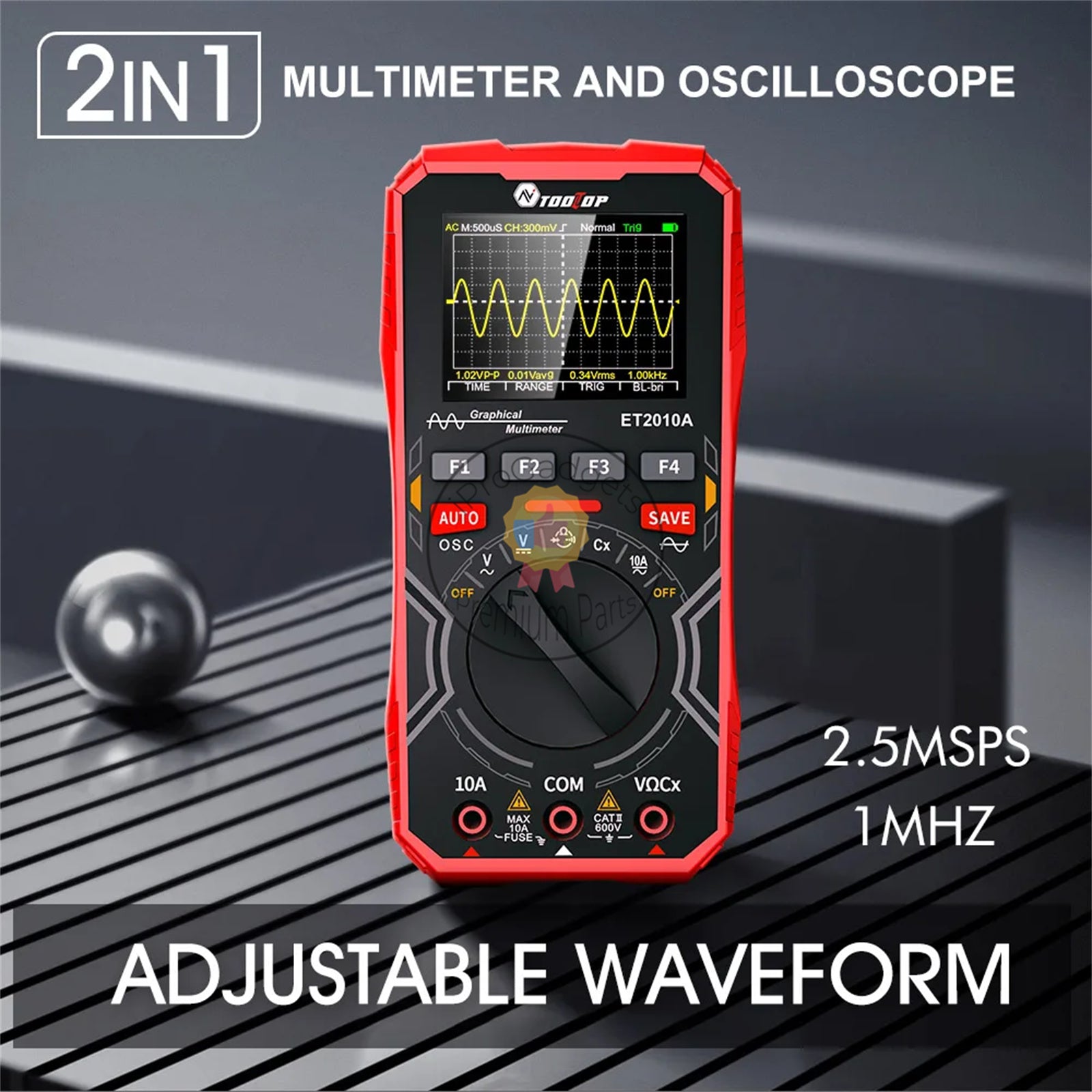

  • When measuring waveforms, you can set parameters independently, such as time base, amplitude, waveform scanning mode, etc

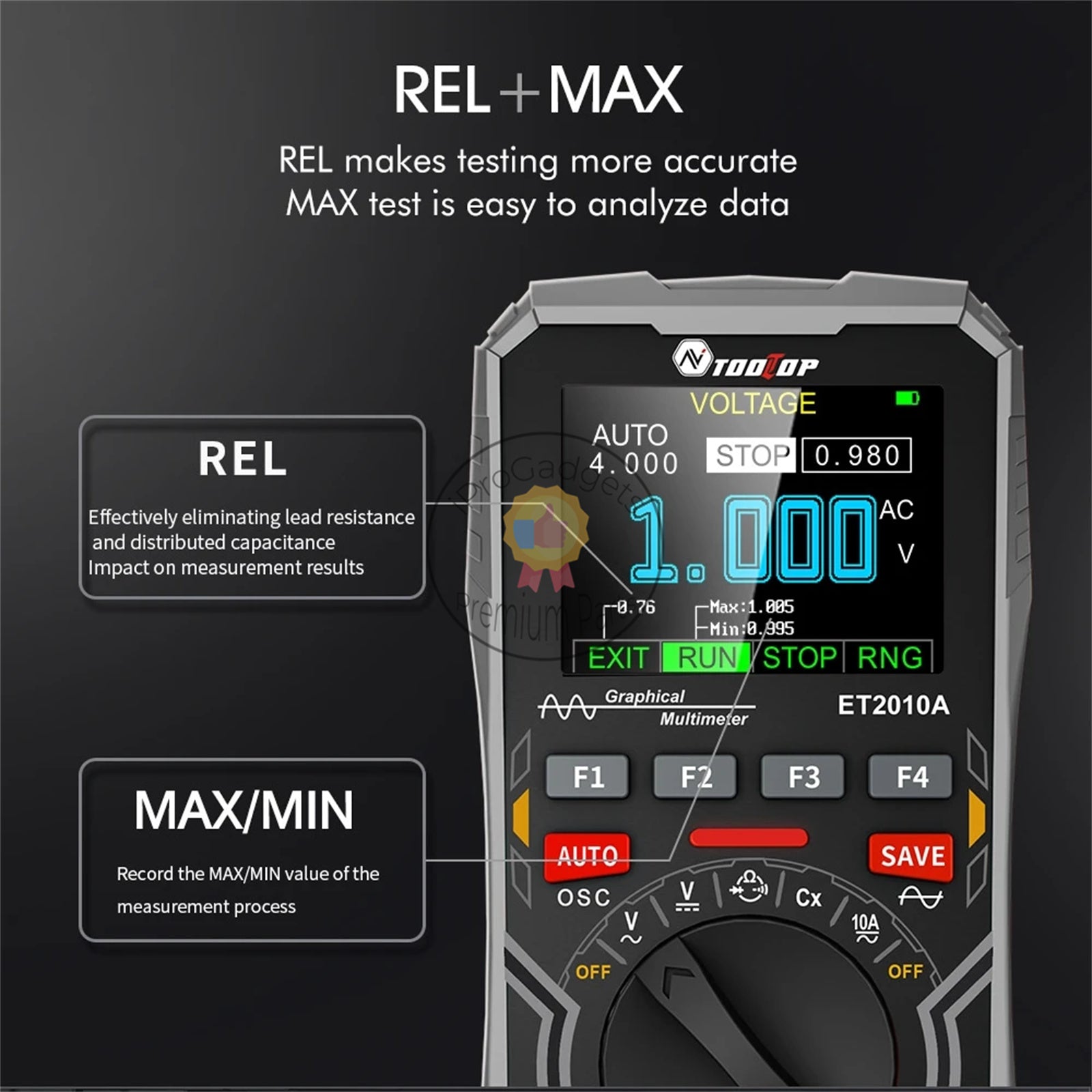

  • REL, effectively eliminates the lead resistance, distributed capacitance, and interference signal

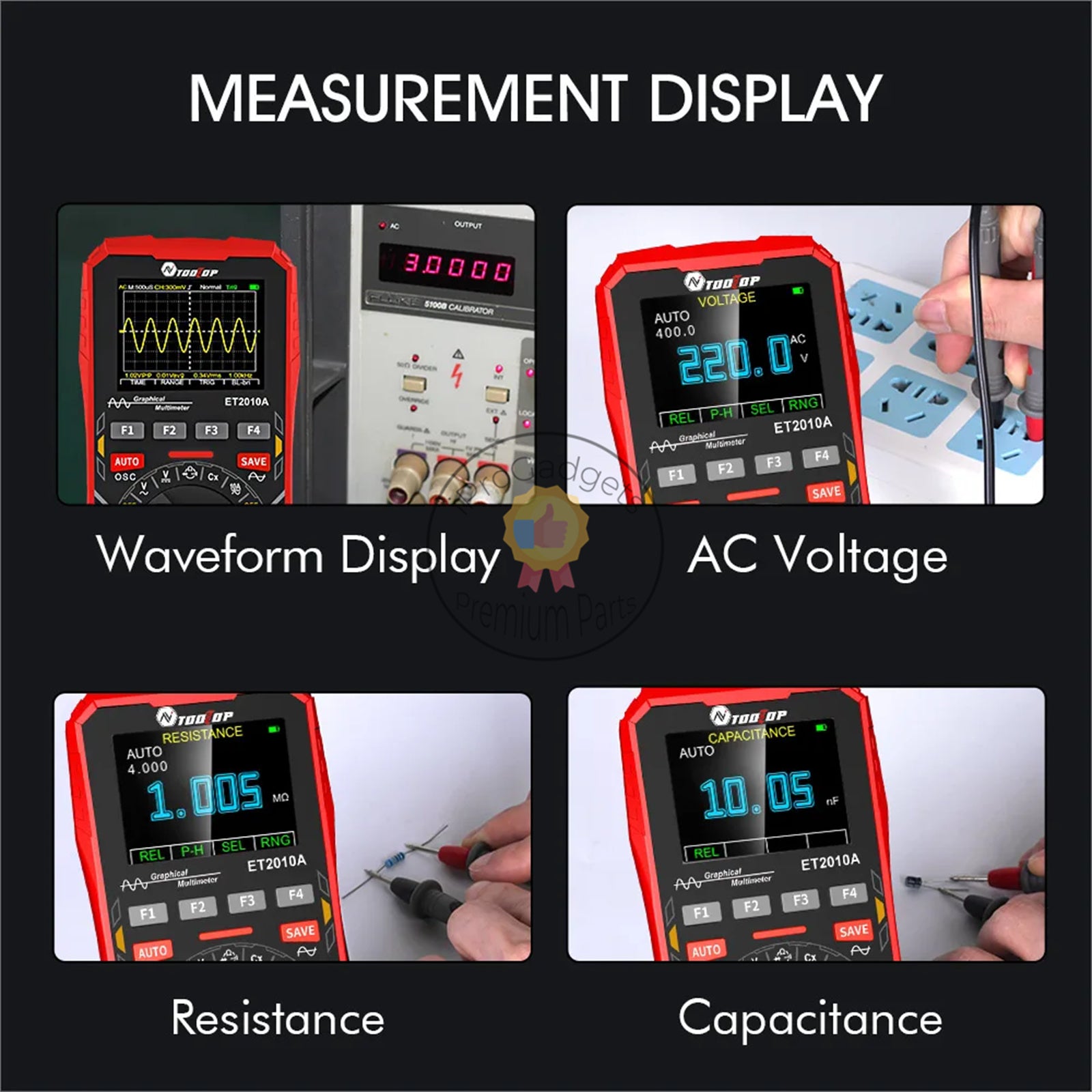

  • Multimeter functions include DC/AC voltage/current, resistance, capacitance, frequency, duty cycle, diode continuity test
  • Automatic/manual switching for measuring range and display of measurement data and historical data on the same screen

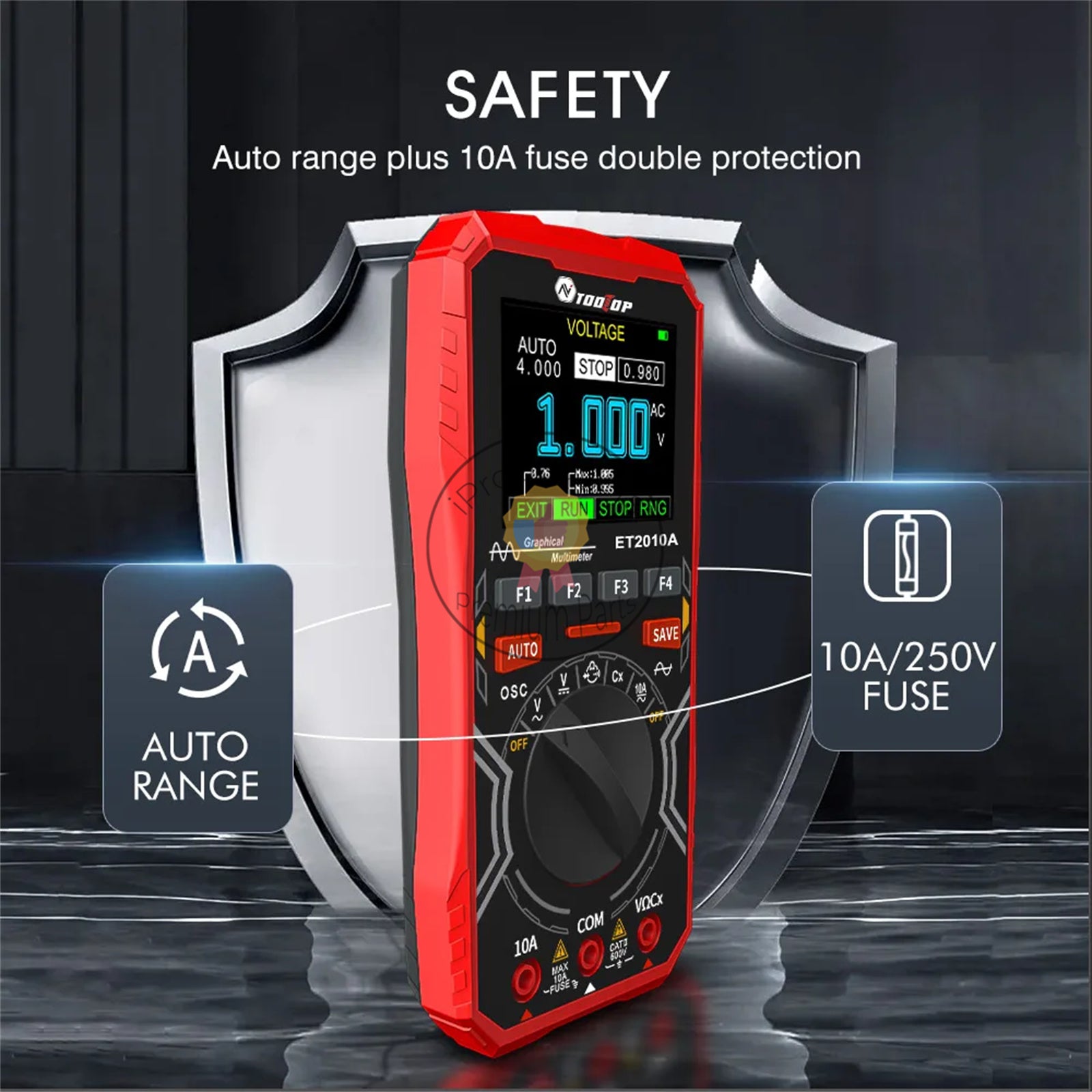

  • Overload protection 10A double protective tube, dual protection of the instrument

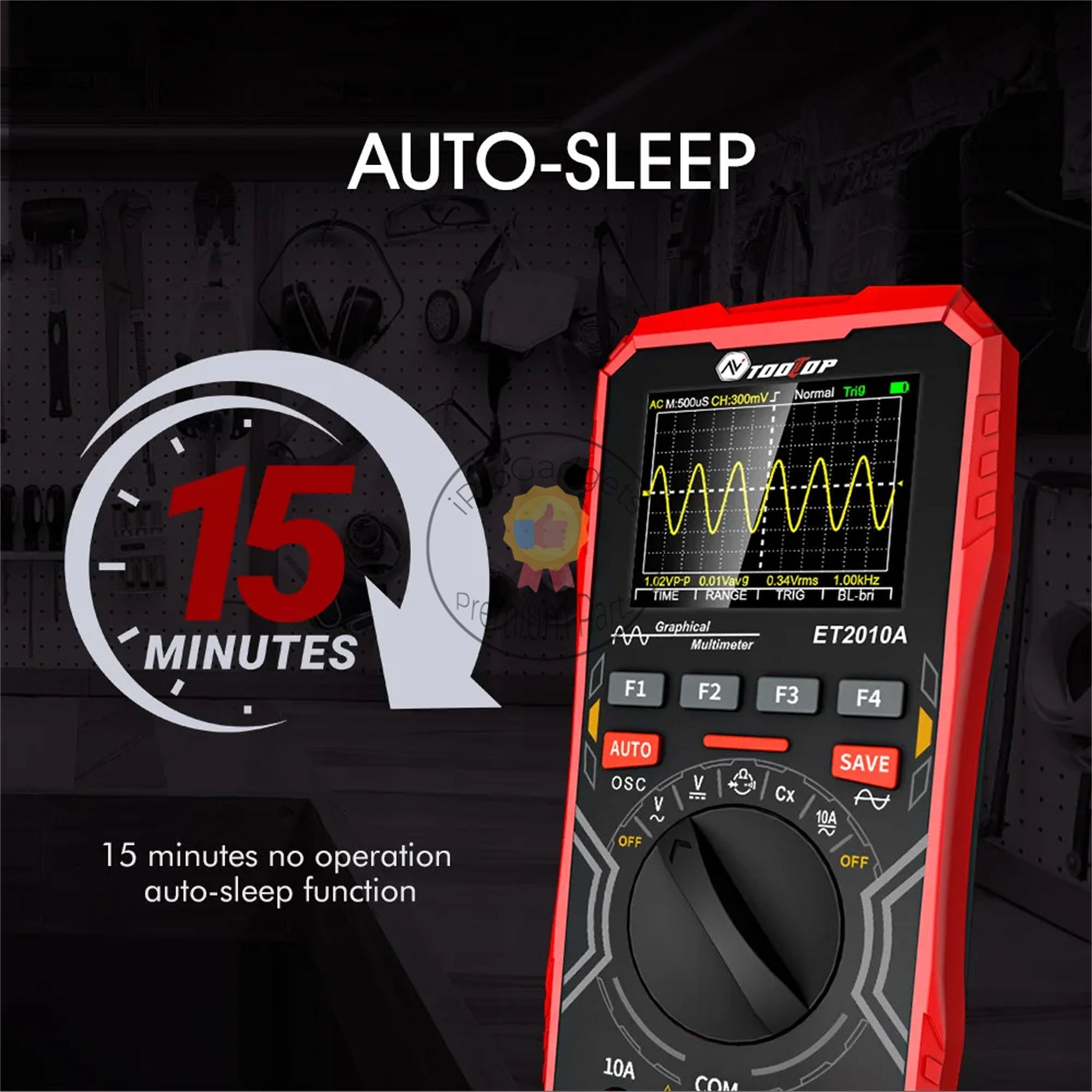

  • Automatic shutdown in case of no operations for 15 minutes: bright backlight and clear display
  • Adopt a 2.4-inch color screen display, the display effect is clear
  • Higher reliability: No adjustment of the potentiometer is required for panel calibration and internal storage calibration

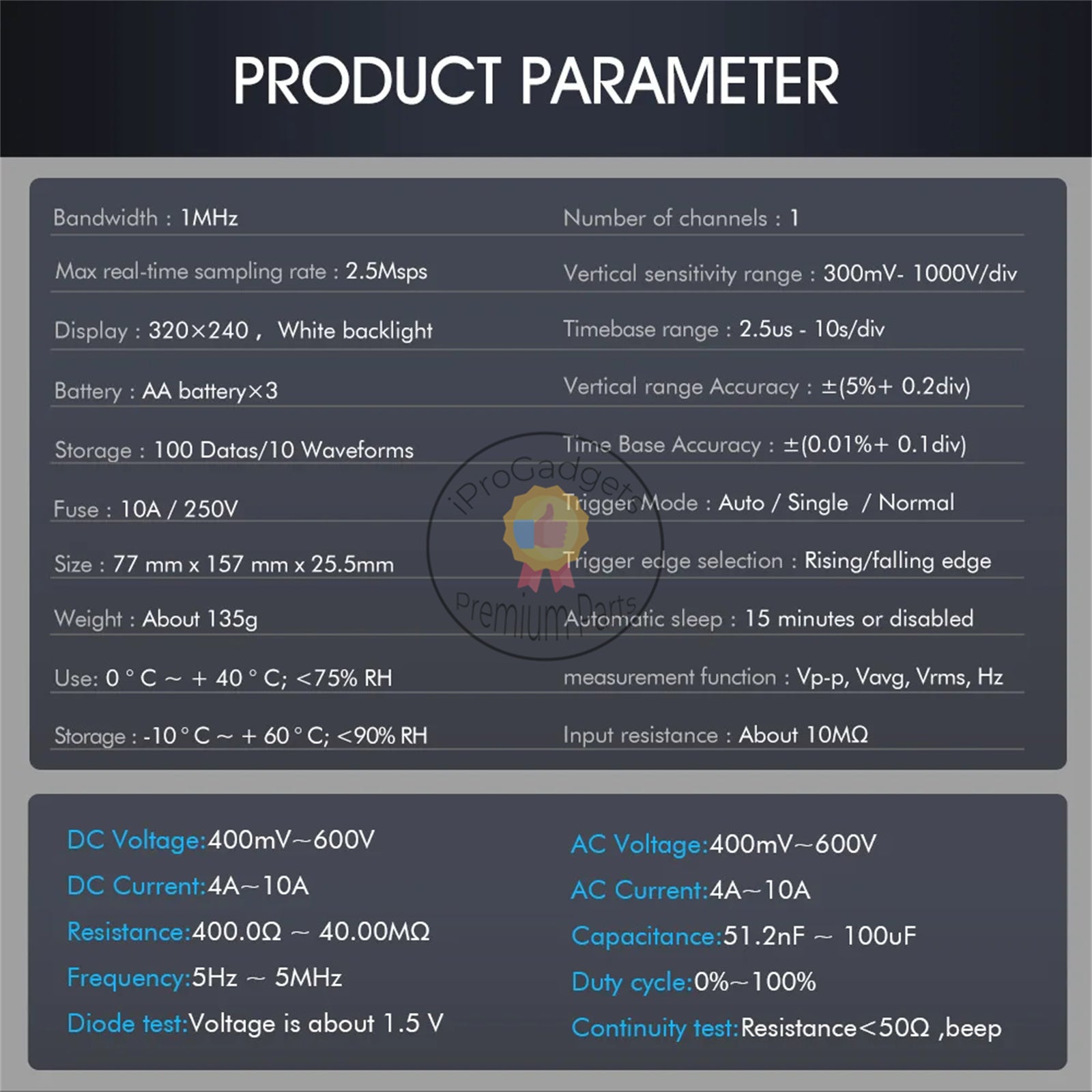

Specification:
  • Display: 240x320 Color screen
  • Backlight: Constantly on
  • Battery: AA batteries *3 (Not included)
  • Working current: About 65mA
  • usage time: More than 10 hours
  • Use: 0°C~40°C; <75%RH

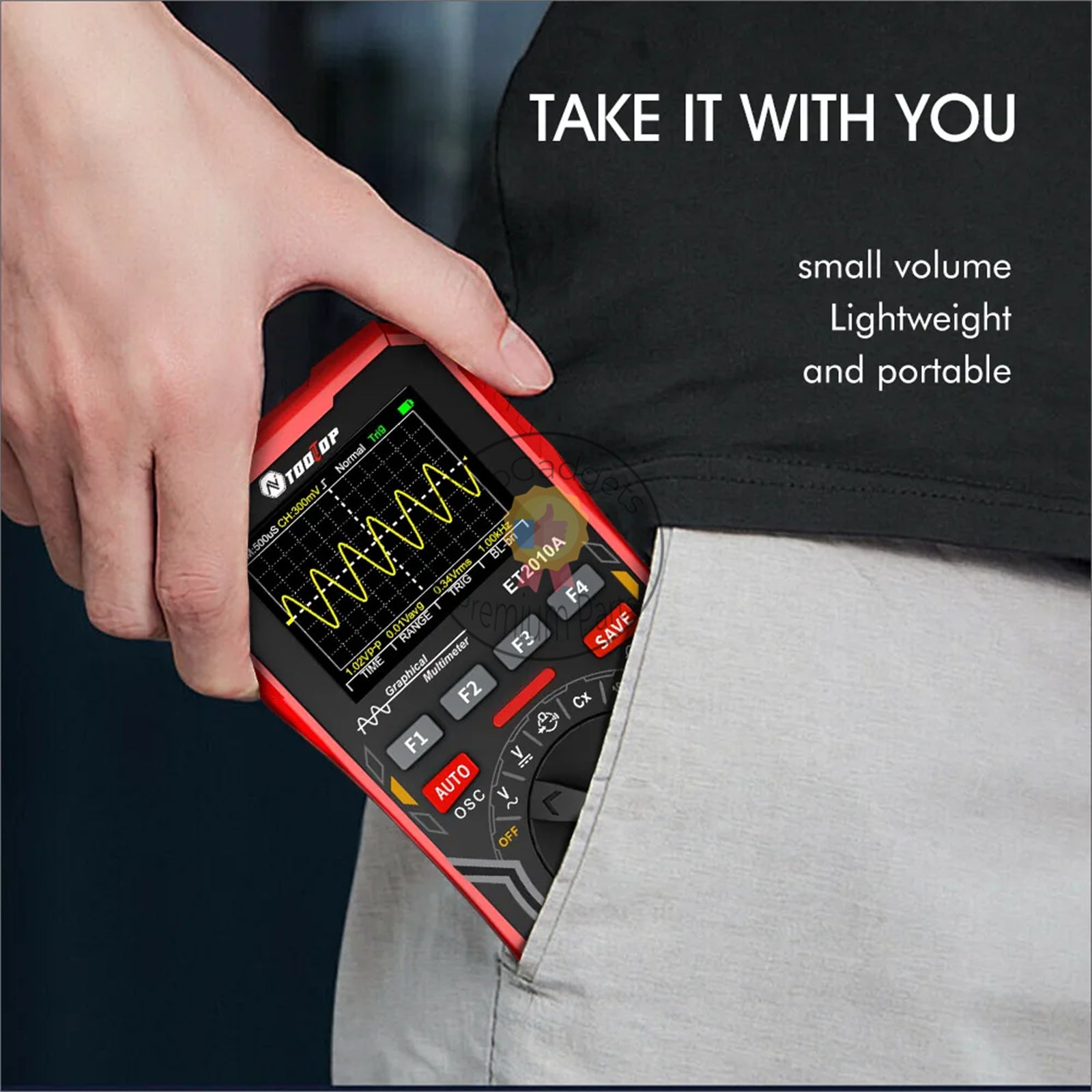

  • Dimensions: 77*157*25.5mm
  • Observation area: 49.0*36.7 mm
  • Input resistance: About 10MΩ
  • Auto shutdown: 15 minutes or disabled
  • Sleep current: About 35uA
  • Storage capacity: 100*data, 10*waveform
  • Storage: -10°C~60°C; <90%RH
  • Weight: About 135g
Oscilloscope:
  • Analog bandwidth: 1MHZ
  • Channel: 1
  • Scan mode: Auto/normal/single
  • Vertical sensitivity range: 300mV~100V per grid
  • Vertical amplitude accuracy: ±(5%+0.2div)
  • Auto-configuration: Auto set time base and vertical amplitude
  • Max real-time sampling rate: 2.5Msps
  • Input resistance: About 10MΩ
  • Time base range: 2.5us~10s per grid
  • Time base accuracy: ±(0.01%+0.1div)
  • Trigger edge selection: Rising/falling edge
  • Automatic measurement function: Vp-p, Vavg, Vrms, HZ
Multimeter:
  • DC Voltage: 400mV~600V
  • DC Current: 4A~10A
  • Resistance: 400.0Ω~40.00MΩ
  • Frequency: 5Hz~5MHz
  • Diode test: Voltage is about 1.5V
  • AC Voltage: 400mV~600V
  • AC Current: 4A~10A
  • Capacitance: 51.2nF~100uF
  • Duty cycle: 0%~100%
  • Continuity test: Resistance <50Ω, beep

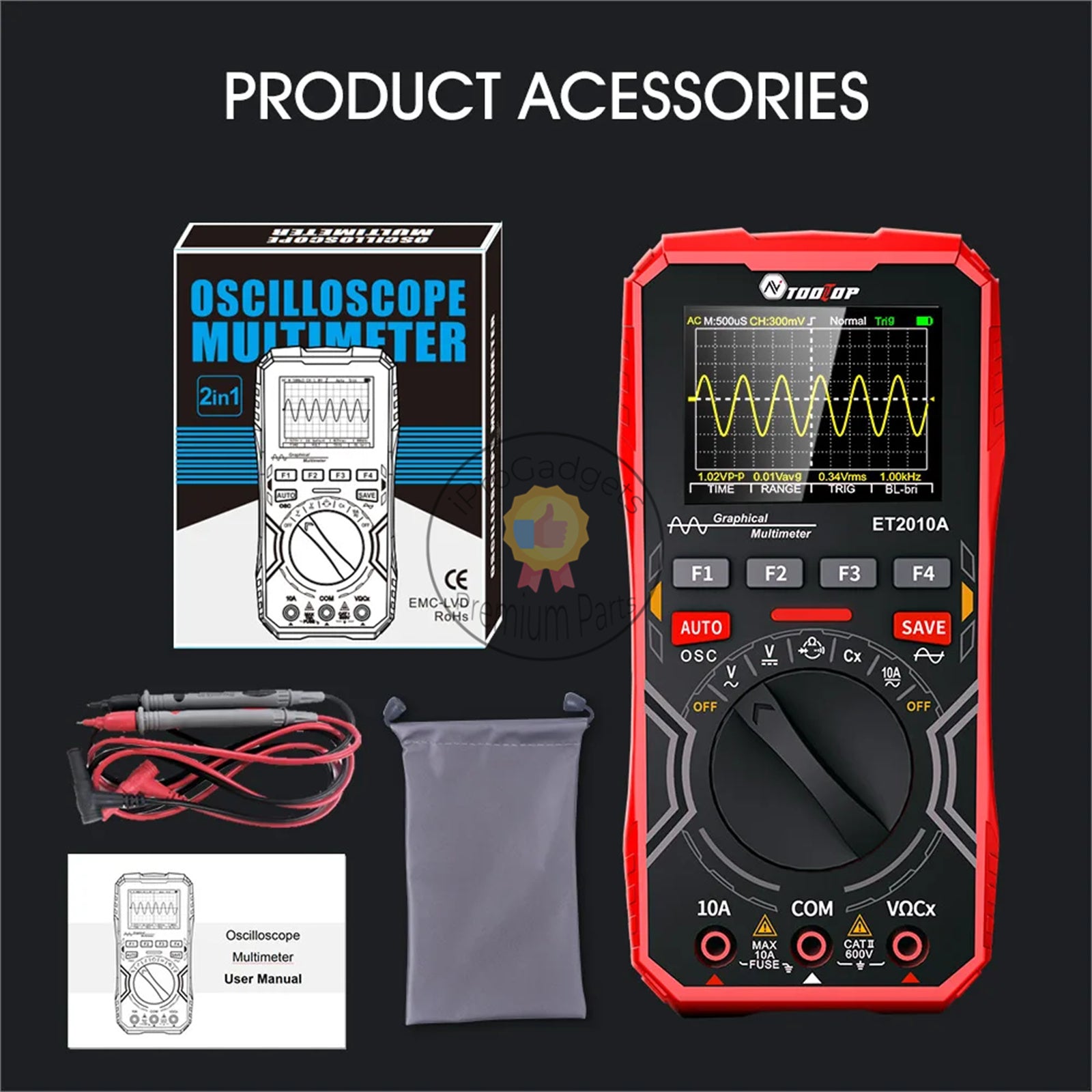

Package includes:
  • 1 x Oscilloscope Multimeter(Random Color)
  • 1 x Test Leads
