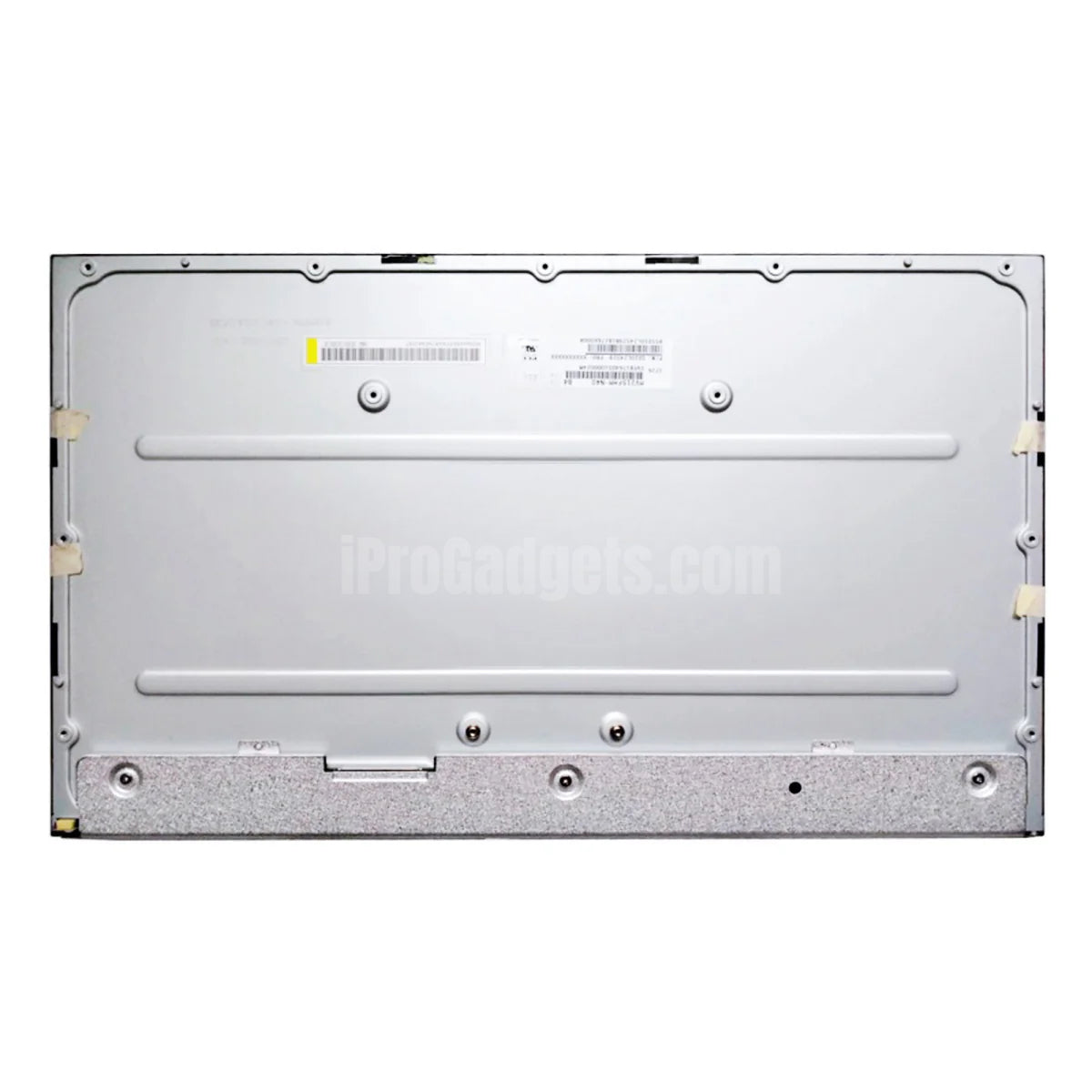

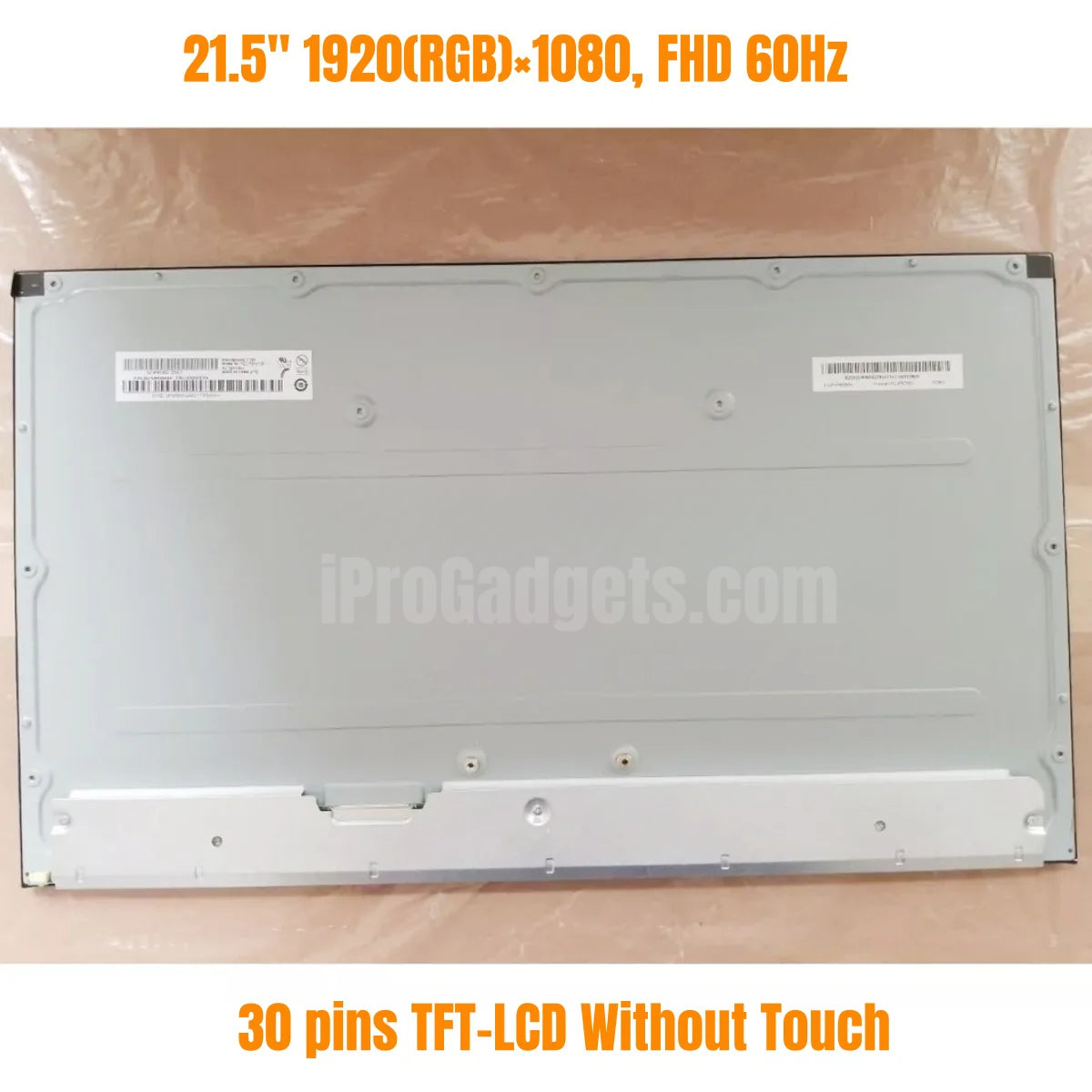

Replacement New Display M215HAN01.1 21.5 inch FHD All-In-One LCD Screen Panel
iProGadgets Repair Parts M215HAN01.1 21.5-Inch FHD IPS LCD Panel - 1920x1080
Part Number: M215HAN01.1
Size: 21.5 inches (54.61 cm) diagonally
Resolution: 1920 x 1080 pixels (Full HD, FHD)
Panel Type: a-Si TFT-LCD, AHVA (Advanced Hyper-Viewing Angle, AUO’s IPS-like technology), Normally Black, Transmissive
Active Area: 476.64 mm (W) x 268.11 mm (H)
Brightness: 250 cd/m² (typical)
Contrast Ratio: 1000:1 (typical, transmissive)
Display Colors: 16.7 million (72% NTSC, CIE1931)
Pixel Format: RGB Vertical Stripe
Response Time: 14 ms (typical, gray-to-gray)
Frequency: 60 Hz
Backlight: WLED (White LED), edge-lit, 30,000 hours lifespan
Signal Interface: LVDS (2-channel, 8-bit), 30-pin connector
Input Voltage: 5.0V (typical)
Touch Screen: Without
Revitalize your display with the M215HAN01.1 21.5-inch Full HD LCD panel. Featuring a 1920x1080 resolution, this IPS (AHVA) panel delivers crisp visuals, wide 89° viewing angles, and vibrant 16.7M colors (72% NTSC), making it perfect for monitors, all-in-one PCs, or custom projects. With 250 cd/m² brightness, a 1000:1 contrast ratio, and a 14 ms response time, it ensures reliable performance for work or entertainment. The antiglare coating minimizes reflections, and the WLED backlight provides a 30,000-hour lifespan. Equipped with an LVDS (2-channel, 8-bit) 30-pin interface. Ideal for HP All-in-One repairs or upgrades. Non-touch, 60 Hz refresh rate.
Memo: This is not an easy job for someone who has no technical skills with Disassembling or Assembling Cellphones/mobile phones, so only purchase this item if you know how to install it. Highly recommend professional installation. We will not be held responsible for any damages to your cellphone/mobile phone that you may cause during the changing of replacement parts.
100% Tested by iProGadgets QC Team
(iProGadgets Focus on All kind of Phone /Tablet/Computer/PC Repair Parts for More than 10 Years and we Only Supply the Prime Quality Parts and Accessories ! )
1.We specialize in selling mobile / laptop / computer spare parts and accessories. Please contact us if you have any needs; We share the latest information of mobile stuffs in Chinese market with all our customers.
2.All devices be tested before shipping and 100% working well. If it cannot be used after you received and tested, Please do not worry and contact with us immediately,we will give you a satisfied solution.
3.Please don't accept the parcel if it is damaged so that we can ask a claim from express company.
4.Open a dispute before communication means give up after-sale service.
5.Please use message box or trade manager to contact us for any problem, we will reply you within 48 hours.
