Replacement New Display for HP Pavilion 17T-AB000 4K UHD LCD Screen Panel
iProGadgets Repair Parts 17.3" 4K UHD LCD for HP Pavilion 17T-AB000 (3840x2160) Matte IGZO IPS Laptop Screen (40-pin eDP)

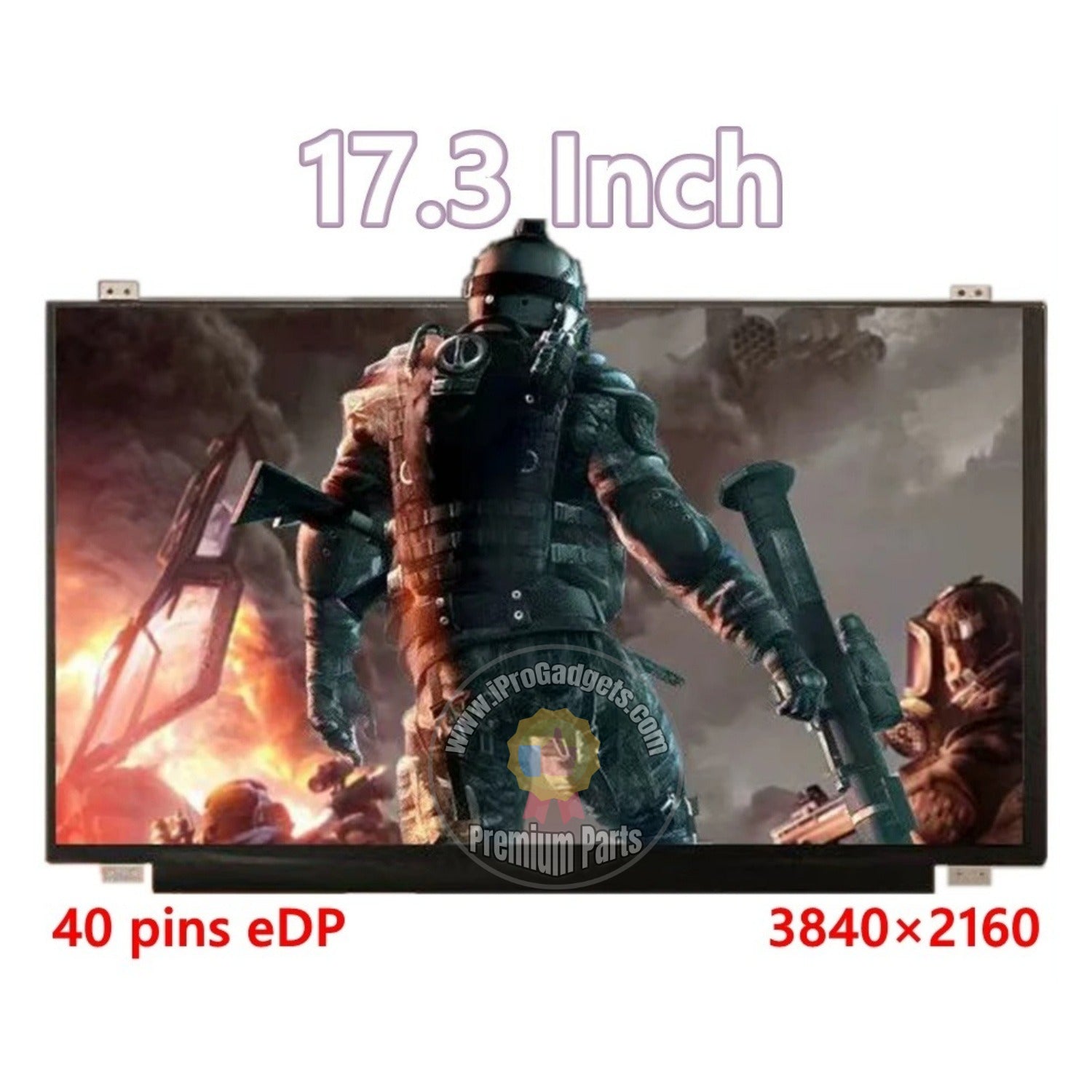

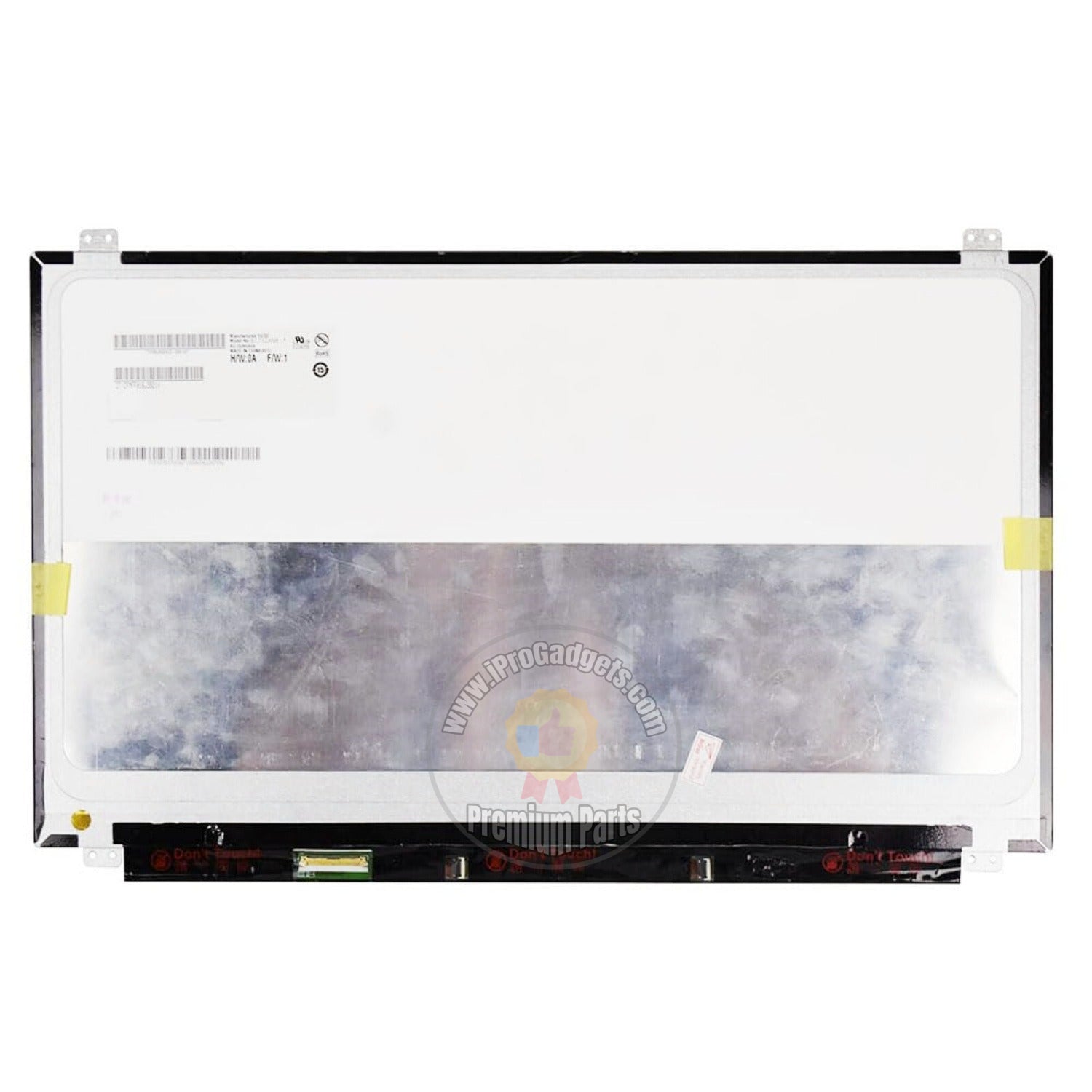

The is a 17.3-inch, 4K UHD resolution IPS-type display panel featuring IGZO technology for high pixel density and color performance. It is a matte, non-touch screen intended for use in high-end laptops, including certain Dell models.
Diagonal Size: 17.3 inches
Resolution: 3840 x 2160 pixels (UHD/4K)
Panel Type: IGZO (Oxide TFT-LCD), IPS, Normally Black, Transmissive
Surface: Anti-glare (matte) with a hard coating (3H)
Color Gamut: 100% Adobe RGB, 100% sRGB
Display Colors: 16.7 million (8-bit)
Brightness: 300 cd/m² (nits), typical
Contrast Ratio: 1000:1, typical
Refresh Rate: 60 Hz
Response Time: 30 ms (Tr+Td), typical
Backlight: WLED (White LED), Edge-lit type with a driver
Interface: 40-pin eDP (Embedded DisplayPort), 4 Lanes
Technology: IGZO (Indium Gallium Zinc Oxide), for a high-quality TFT-LCD panel
Touchscreen: Not supported
Strictly Tested by iProGadgets QC Team
(iProGadgets Focus on All kind of Phone /Tablet/Computer/PC Repair Parts for More than 10 Years and we Only Supply the Prime Quality Parts and Accessories ! )
Notice :
Clean the flex cable with alcohol before installation and confirm that it is well connected.
Do not pull, tear or push on the flex cable, be careful during installation.
Before installing the screen, please remove the battery in advance.
Please tap the screen carefully, because the screen is too fragile to damage.
1.Each parts we already double tested before shipping and good working well.
2.After receiving the parts, please check the appearance and test it first. Do not install it directly. You need to connect the new parts to the motherboard for functional testing first ,if all tested ok then do a professional install.
3.All the repair parts is fragile and easily broken or work unproperly by installation mistakes. If you are not good at replacing the parts , please do it by a professional person or repair shop.
4.We are not responsible for any installation mistakes. Any unprofessional installation or mistake are likely to cause product damage and functional issues.
5.Warranty period: The warranty for the parts is valid until it is installed (pasted) in your device! We will no longer provide warranty for any issues arising after the product is installed.
