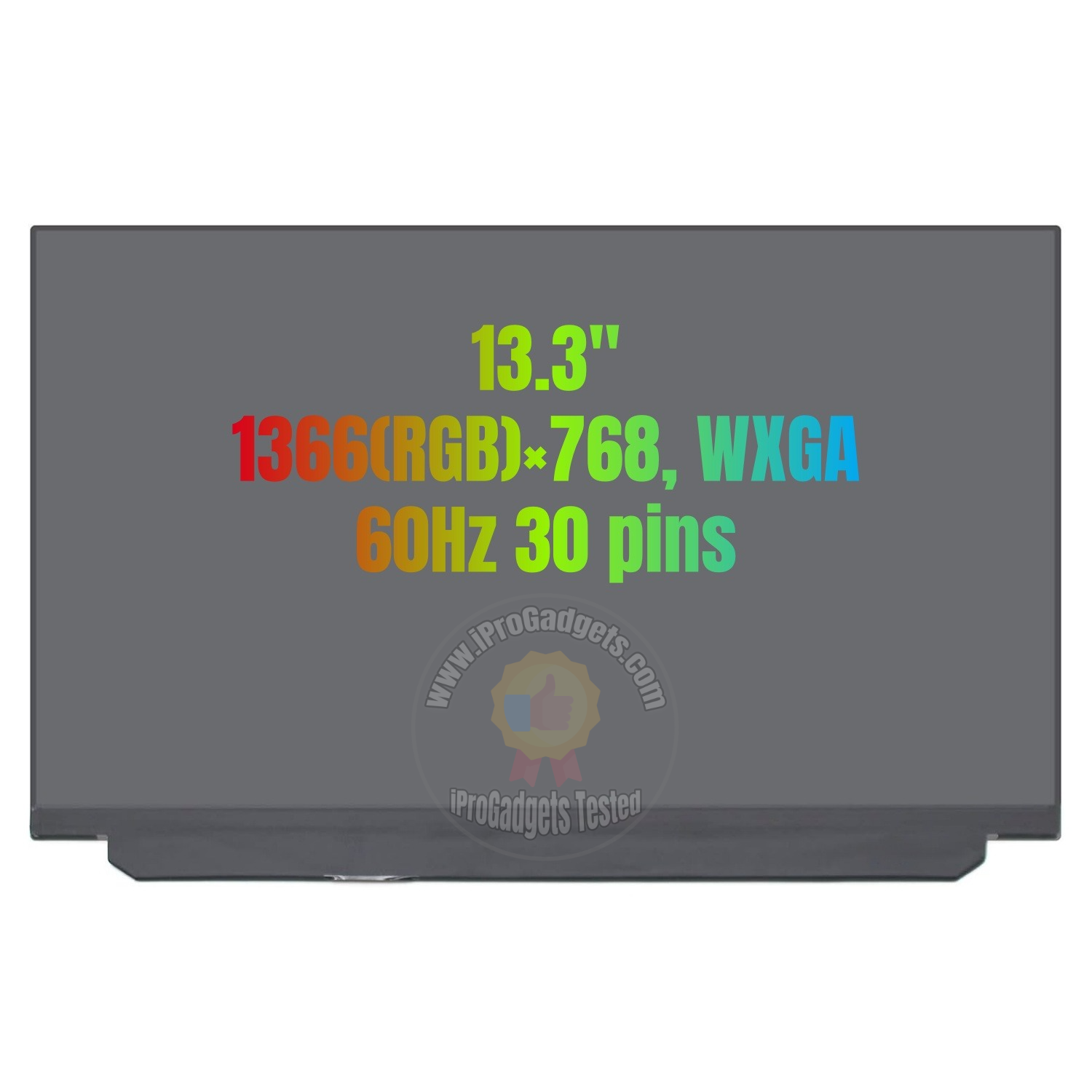

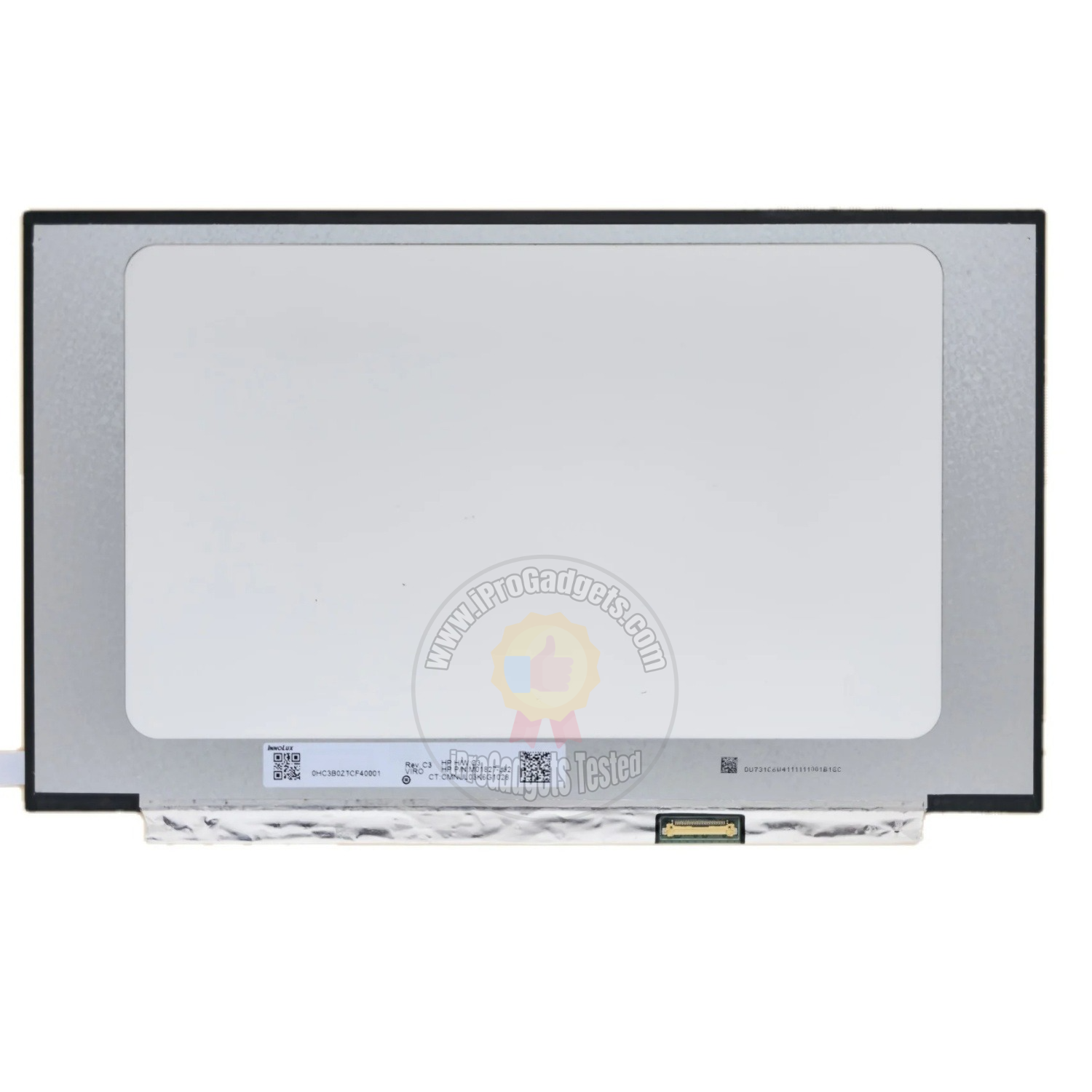

Replacement LCD Screen Display For N133BGE-EAA N133BGE-EB1 N133BGG-EA1 13.3 inch HD Panel
iProGadgets OEM Repair Parts for N133BGE-EAA N133BGE-EB1 N133BGG-EA1 13.3 inch HD Laptop Screen Replacement — Quick Answers
Quick answer: this is a brand-new 13.3 inch non-touch replacement LCD panel covering the N133BGE-EAA, N133BGE-EB1 and N133BGG-EA1 panel codes — 1366 x 768 HD at 60 Hz on a 30-pin eDP connector, 300 cd/m², matte anti-glare, double tested before shipping and covered by a 30-day return window on unused, uninstalled parts. The three codes share the same slim bracketless frame, the same 30-pin single-lane eDP pinout and the same 300 cd/m² backlight, so they interchange; the only real difference between them is the contrast ratio, quoted at 400:1 for the EAA and the EA1 and 650:1 for the EB1. Please take care with the code before you order. N133BGE-EAB — one letter away from this panel — is a different part: it is taller and it carries mounting ears top and bottom, so it will not drop into this frame. Send us the full code from the label on the screen you are removing and we will confirm which panel we are shipping before dispatch.
- Fit: The N133BGE-EAA, N133BGE-EB1 and N133BGG-EA1 panel codes — a display-only panel, no touch layer and no mounting tabs fitted
- Panel: TN LCD, matte anti-glare, slim bracketless panel, 300 cd/m²
- Testing: every unit is double tested before shipping — display, touch and fitment
Technical Specifications
| Item | Detail |
|---|---|
| Panel model codes | N133BGE-EAA · N133BGE-EB1 · N133BGG-EA1 |
| Screen size | 13.3 inches diagonal (33.8 cm), 16:9 |
| Resolution | 1366 x 768 px (WXGA HD), 118 ppi |
| Refresh rate | 60 Hz |
| Panel technology | a-Si TFT-LCD, TN, normally white, transmissive — matte anti-glare surface with hard coating 3H, WLED edge-lit backlight with the LED driver on the panel board |
| Brightness | 300 cd/m² typical on all three codes — a brighter panel than the 220 cd/m² screens that share this same 13.3 inch size, so expect a brighter picture than the panel you may be removing |
| Contrast ratio | 400:1 on the N133BGE-EAA and the N133BGG-EA1, 650:1 on the N133BGE-EB1. This is a real difference between the codes rather than a measurement error, and it is the only specification that separates them |
| Touch | Non-touch, display-only panel. Touch builds of these machines take a separate bonded assembly instead of this bare panel |
| Signal interface | eDP 1.2, 1 lane, 30-pin FPC, 3.3 V |
| Connector position | Bottom right, viewed from the back of the panel |
| Outline dimensions | 306.3 x 189.15 x 2.85 mm on the N133BGE-EAA and the N133BGE-EB1; 306.3 x 189.7 x 2.85 mm on the N133BGG-EA1, taken from the maker's own specification for that code. The sub-millimetre difference is inside the frame tolerance |
| Mounting | Slim bracketless panel (PCBA flat type, 2.85 mm) with no mounting tabs on any of the three codes — the bezel and the hinge brackets already fitted in the machine stay in place |
| Cross-reference | N133BGA-EA2 · N133BGE-EA1 · LP133WH2-SPA2 — listed as equivalents, with the same footprint and the same 30-pin pinout |
| NOT N133BGE-EAB | One letter away from this panel and a different part: 306.3 x 195.2 mm, 220 cd/m², 500:1, and it carries eight mounting ears top and bottom against a bracketless frame here. Measure the frame height on the panel you are removing before ordering |
| NOT the NT133WHM family | Panel codes NT133WHM-N35, NT133WHM-N45 and NT133WHM-N47 give the same size and the same resolution but sit on a 300.26 mm wide frame, narrower than this panel — order by the code printed on your own label rather than by a size match |
| Condition | Brand-new, unassembled |
| Quality | iProGadgets OEM Quality |
Compatibility
| Device | Model numbers / part codes |
|---|---|
| Panel codes covered | N133BGE-EAA · N133BGE-EB1 · N133BGG-EA1 |
| Interchangeable panel codes | N133BGA-EA2 · N133BGE-EA1 · LP133WH2-SPA2 — same 13.3 inch WXGA footprint, same 30-pin single-lane eDP pinout |
| Production note | The N133BGG-EA1 went into mass production in 2015 and is now discontinued, and the N133BGE-EAA is the current code for machines that shipped with it, so a machine carrying either code takes this panel |
| NOT N133BGE-EAB | One letter away and a different part — 195.2 mm tall against 189.15 mm here, with eight mounting ears. We list that code separately; check the frame height on the panel you are removing |
| NOT the NT133WHM family | Panel codes NT133WHM-N35, NT133WHM-N45 and NT133WHM-N47 share the size and the resolution but sit on a 300.26 mm wide frame, so do not order this panel on a size match alone — send us the code from your label and we will tell you honestly which one you need |
Before We Ship — Please Send Us These 3 Details
Laptop, all-in-one and desktop PC screens can differ between revisions of the same model, so the listing alone cannot always tell us which panel is inside your machine. After you place the order we will contact you for the three items below — please send them so we can confirm the fitment and ship the correct, fully compatible screen straight away:
- A photo of your computer. A clear photo of the laptop itself, plus the model / service label on the bottom cover (or the model name shown in Settings → About).
- Touch or non-touch, resolution and refresh rate. Tell us whether your screen is a touch screen or a non-touch screen, its resolution, and its refresh rate in Hz. If you are not sure, just send the model number and we will check it for you.
- Photos of your old screen. Once the machine is opened, a full photo of the back of the old screen and a close-up of the label or barcode sticker on it. That label carries the exact panel part number, which removes any doubt about which screen you need.
We check your photos against our stock before dispatch. If something does not match, we will contact you first instead of sending a part that may not fit. Once your details are confirmed, we arrange shipment within 1 to 3 business days. Thank you for helping us get it right.
Installation Notes
- Clean the flex cable with alcohol before installation and confirm that it is well connected.
- Do not pull, tear or push on the flex cable, be careful during installation.
- Before installing the screen, please remove the battery in advance.
- Please tap the screen carefully, because the screen is too fragile to damage.
Quality Control
Strictly tested by the iProGadgets QC Team — every unit is double tested before shipping and ships in good working order. After receiving the part, please check the appearance and test it first: connect the part to the motherboard for a functional test before full installation, and only install once everything works. We are not responsible for any installation mistakes — if you are not experienced with screen replacement, have the part fitted by a professional repair shop.
Shipping
We ship worldwide. Orders are dispatched within 1 to 3 business days, and every package carries a tracking number you can follow on the order page. Delivery typically takes 7 to 10 days after dispatch.
Returns & Warranty
30-day returns on unused, uninstalled parts. The warranty is valid until installed — once a screen has been fitted, the return window no longer applies, which is why we ask you to test before installation.
FAQs
What is the difference between N133BGE-EAA, N133BGE-EB1 and N133BGG-EA1?
Very little, and that is the point of listing them together. All three are 13.3 inch, 1366 x 768, 60 Hz, 30-pin eDP, non-touch and 300 cd/m², and they share the same slim bracketless frame with no mounting tabs, so they interchange. The one specification that separates them is the contrast ratio: the maker quotes 400:1 for the N133BGE-EAA and the N133BGG-EA1 and 650:1 for the N133BGE-EB1, so expect slightly deeper blacks from the EB1. Order by whichever code is printed on the label of the screen you are removing and the panel will match it.
Is N133BGE-EAB the same panel as N133BGE-EAA?
No — the two codes differ by one letter and are different parts. The N133BGE-EAB measures 306.3 x 195.2 mm, the N133BGE-EAA measures 306.3 x 189.15 mm, and the EAB carries eight mounting ears top and bottom where this panel has a bracketless frame. That extra height and those ears are a physical fitment difference, not a cosmetic one, so the EAB will not sit correctly in a machine built for this panel. We list the N133BGE-EAB separately. The safest check is to lay the panel you are removing face down and measure the overall height of the frame before you order.
Is this the touch version or the non-touch version?
This is the non-touch display-only panel — the screen on its own, with no touch layer or digitizer bonded to it. Touch and non-touch screens for the same machine are different assemblies and do not interchange, so please check before ordering: if the screen you are removing responds to finger or stylus input, send us your machine model and the code from the label and we will confirm the right part for you.
Questions about fit, shipping to your country, or bulk pricing? Email sales@iProGadget.com and we will confirm the exact part you need.
Frequently Asked Questions
Is this part compatible with my device?
This listing is for Replacement LCD Screen Display For N133BGE-EAA N133BGE-EB1 N133BGG-EA1 13.3 inch HD Panel. It is built as a direct-fit replacement for the model named in the title. Match the model number in the title against your own device before ordering. If you are not sure which version you need, email sales@iProGadget.com and we will confirm the correct part for you.
What is the quality of these replacement parts?
We supply iProGadgets OEM Quality / Premium Compatible replacement parts. Every part is manufactured to OEM specifications, so the fit, finish and function match the original component it replaces, and each unit is individually tested before it leaves our warehouse.
Is the part tested before it is shipped?
Yes. Every part we sell is inspected before dispatch and tested wherever testing applies — screen assemblies are checked on the panel, the touch response and the connector. Orders are processed and shipped within 1-3 business days after payment is confirmed.
How long does shipping take?
Orders leave our warehouse within 1-3 business days. Express Shipping (DHL, UPS or FedEx) takes 5-8 working days and is normally used for parcels over 2 kg. Registered Air Post takes 10-20 working days and is normally used for parcels under 2 kg. Every order ships with a tracking number. Customs clearance can add extra time, especially during peak season.
Will I be charged import duties or customs fees?
Customs charges depend on your own country's import rules and its de minimis threshold, not on the seller. Some destinations apply no duty at all on lower-value parcels, and where duty or VAT does apply it is collected by your local post office or courier before delivery. We ship every order with complete and accurate commercial documents, which is what keeps a parcel moving through customs instead of sitting in it. If you would like to estimate the charges before you order, email us your country and we will point you to the right authority.
What is your return policy?
We offer a 30-day return policy, which means you can request a return within 30 days of receiving your item. To be eligible, the item must be unused, uninstalled and in the packaging it arrived in. Once a part has been fitted, bonded or used it cannot be returned, so please test the part before installation. To start a return, email sales@iProGadget.com.
What should I do if the part arrives damaged or faulty?
Inspect your order as soon as it arrives. If an item is defective, damaged or not what you ordered, contact us at sales@iProGadget.com straight away with photos or a short unboxing video, and we will arrange a replacement or a refund.
Do you provide repair guides or installation tutorials?
No. We are a supplier of replacement parts only. We are not a repair shop, and we do not provide repair guides, tutorials or step-by-step installation support. Every part we sell is intended to be installed by a professional technician at a qualified repair shop, which also gives the best result: a technician can transfer the small components, handle the adhesives and test the finished repair. Please do not attempt the installation yourself if you have no previous repair experience, as these assemblies are fragile and incorrect handling can damage them permanently. We sell parts only and do not accept responsibility for installation carried out by the customer. Our warranty covers the part itself and remains valid until the part is installed. If a problem appears after the repair, please take the device back to the repair shop that fitted the part so they can inspect the installation and test the device.
Still have a question about this part? Email us at sales@iProGadget.com and we will confirm compatibility, shipping time or return details for you.
