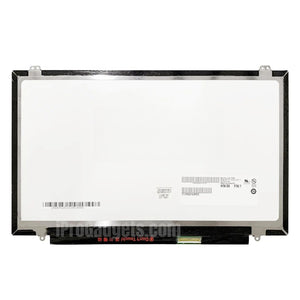

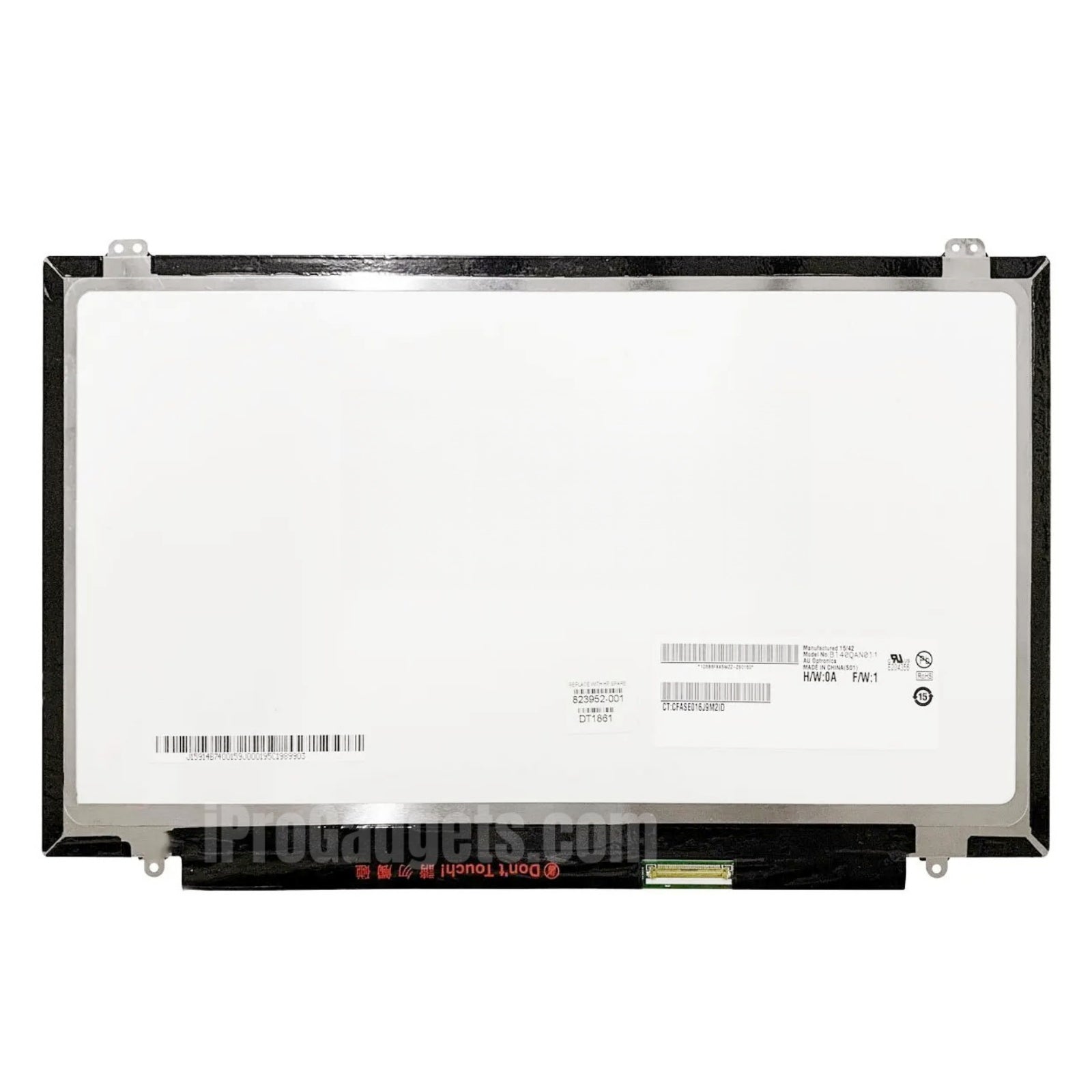

Replacement New Display B140QAN01.1 QHD 2K 14.0 Inch LCD Screen Panel 2560x1440
iProGadgets Repair Parts B140QAN01.1 14.0 inch QHD 2560x1440 IPS Matte Laptop LCD Screen Panel

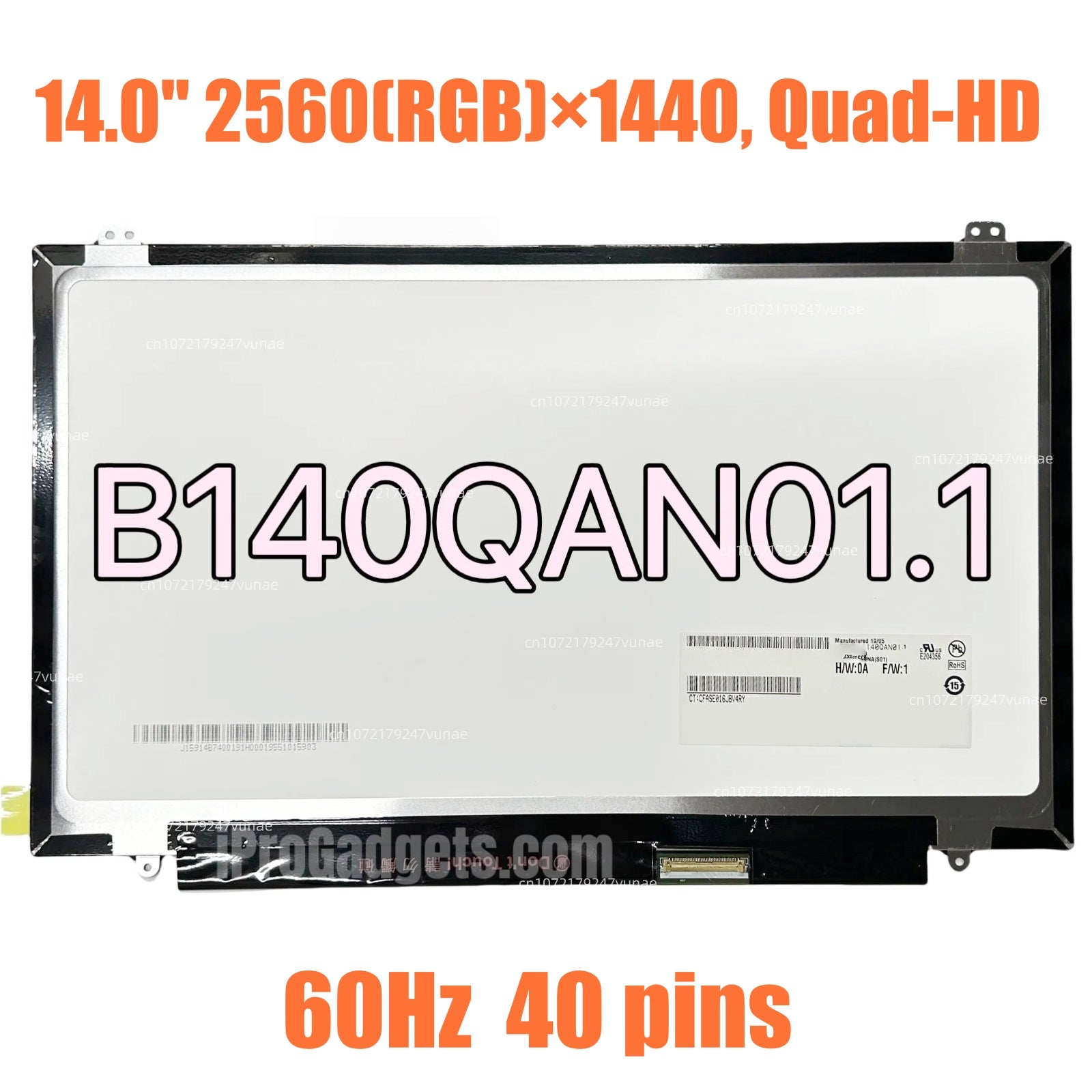

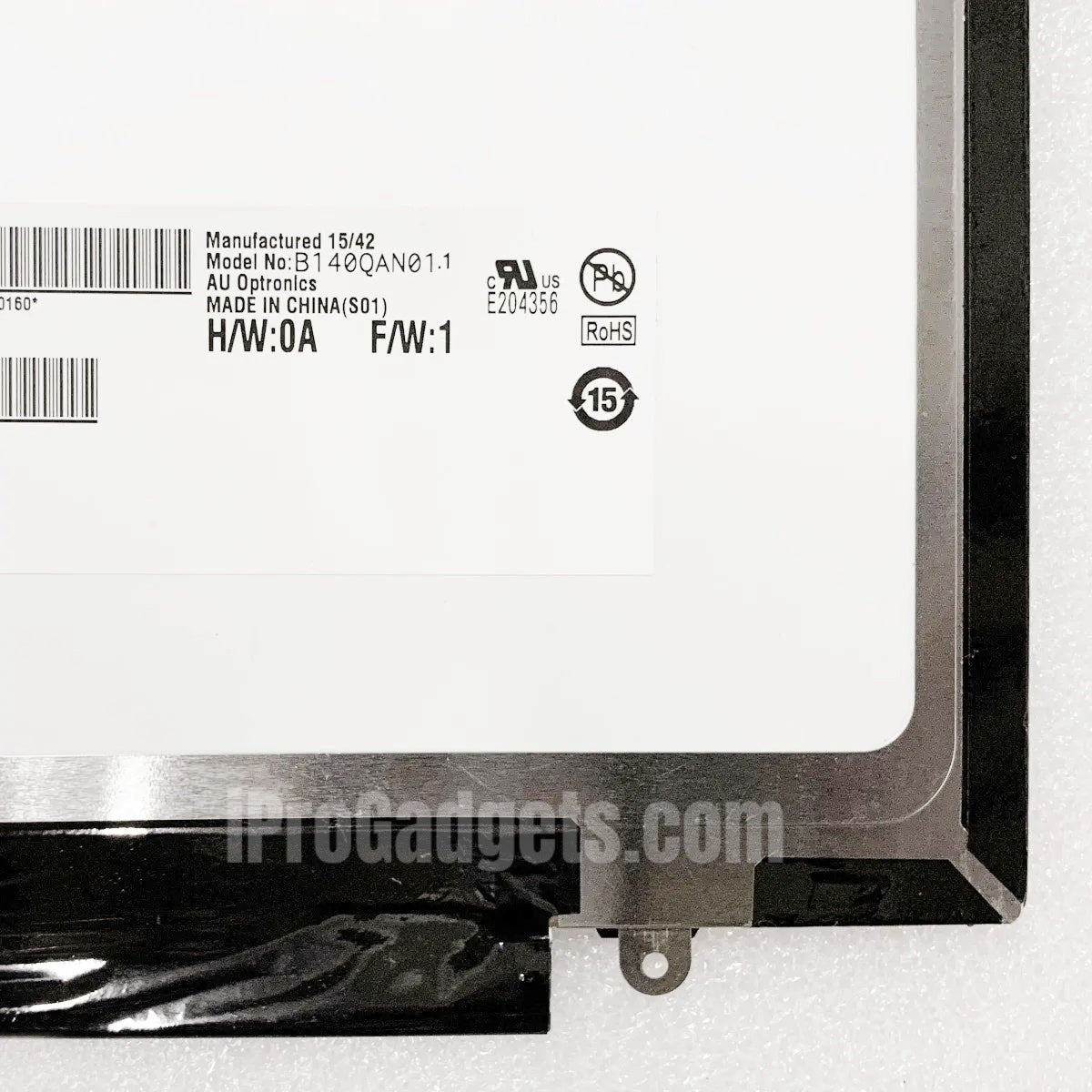

Panel Model: B140QAN01.1
Panel Type: a-Si TFT-LCD, AHVA (AUO's equivalent of IPS), Normally Black, Transmissive
Diagonal Size: 14.0 inches
Resolution: 2560 (RGB) × 1440 (QHD / 2K)
Pixel Density (PPI): 210 PPI
Aspect Ratio: 16:9
Brightness: 340 cd/m² (Typ.)
Contrast Ratio: 700:1 (Typ.)
Viewing Angle: 85/85/85/85 (Typ.) (CR≥10) - Symmetry, indicating wide viewing angles.
Response Time: 30 ms (Typ.) (Tr+Td)
Display Colors: 16.7M (8-bit)
Color Gamut: 72% NTSC (CIE1931), 97% sRGB coverage
Surface: Antiglare (Matte), Hard coating (3H)
Signal Interface: eDP (4 Lanes), 40 pins
Input Voltage (Logic): 3.3V (Typ.)
Backlight: WLED, Edge light type, With LED Driver
Mountings: Often features top and bottom screw brackets/ears.
Strictly Tested by iProGadgets QC Team
(iProGadgets Focus on All kind of Phone /Tablet/Computer/PC Repair Parts for More than 10 Years and we Only Supply the Prime Quality Parts and Accessories ! )
Notice :
Clean the flex cable with alcohol before installation and confirm that it is well connected.
Do not pull, tear or push on the flex cable, be careful during installation.
Before installing the screen, please remove the battery in advance.
Please tap the screen carefully, because the screen is too fragile to damage.
1.Each parts we already double tested before shipping and good working well.
2.After receiving the parts, please check the appearance and test it first. Do not install it directly. You need to connect the new parts to the motherboard for functional testing first ,if all tested ok then do a professional install.
3.All the repair parts is fragile and easily broken or work unproperly by installation mistakes. If you are not good at replacing the parts , please do it by a professional person or repair shop.
4.We are not responsible for any installation mistakes. Any unprofessional installation or mistake are likely to cause product damage and functional issues.
5.Warranty period: The warranty for the parts is valid until it is installed (pasted) in your device! We will no longer provide warranty for any issues arising after the product is installed.
International Shipping :
We ship worldwide, and our order packages can be delivered to every country around the global. Each order will reach the hands of our customers no matter where they are. When a customer places an order in our store and fills in the correct shipping address, the required shipping fee will be displayed on the order page. The customer can then proceed to pay the total amount, including the shipping fee. After we receive the order, we typically arrange for shipment within 1 to 3 business days. Once the order is shipped, each package will have a corresponding tracking number. Customers can check the logistics status of their package at any time on the order page. Generally, the package will be delivered to the customer within 7 to 10 days. Thank you!
