Replacement LCD Touch Screen Display For Dell Inspiron 15 3583 3593 K2V59 P75F013 15.6 inch HD Panel
iProGadgets OEM Repair Parts for Dell Inspiron 15 3583 3593 K2V59 P75F013 15.6 inch HD Laptop Screen Replacement — Quick Answers
Quick answer: this is a replacement 15.6 inch display for the Dell Inspiron 15 3583 — service tag K2V59 (also written 0K2V59), regulatory model P75F013. It is a 15.6 inch TN LCD at 1366 x 768 px (HD), 60 Hz, 200 cd/m², 500:1 contrast, glossy, with an on-cell touch layer bonded inside the panel and a 40-pin eDP connector at the bottom right. Every unit is double tested before shipping and is covered by a 30-day return window on unused, uninstalled parts. Three things to know before you order. First, this is the touch version on a 40-pin connector — the same Dell machines also shipped with 30-pin non-touch panels that look identical from the front. Second, specification sheet lists touch as an option for the Inspiron 15 3583, but Dell's own sheet for the Inspiron 3593 states touch is not supported on that model — many 3593 units do carry this panel, but if you are ordering for a 3593 please send us the label photo first. Third, this is the same physical panel we list for the Lenovo FRU 5D10K81094, so it also fits those Lenovo machines.
- Fit: Fits the Dell Inspiron 15 3583 (touch version ) and the Inspiron 3593 / P75F013, and published for the Inspiron 3582, 3584, 3580, 3585, the Inspiron 15 5551 / 5555 / 5558 / 3552 / 3555 / 3558 / 5559 / 3565 / 3567 and the Latitude 3570 / 3580 / 3590. Send us the machine model or a photo of the label and we will confirm the fitment before dispatch
- Panel: TN LCD, glossy, on-cell touch (touch layer factory bonded inside the panel, no separate digitizer), 40-pin eDP, top and bottom mounting brackets
- Testing: every unit is double tested before shipping — display, backlight and fitment
Technical Specifications
| Item | Detail |
|---|---|
| Part number | For the service tag K2V59 (also 0K2V59 / CN-0K2V59); the regulatory model is P75F013 |
| Panel model | Liquid Crystal Display, 15.6 HDF, Top Latch, Embedded Display Port, One Time Programmable, TSP |
| Screen size | 15.6 inches diagonal |
| Resolution | 1366 x 768 px (HD) |
| Refresh rate | 60Hz |
| Panel technology | a-Si TFT-LCD, LCM (Liquid Crystal Module), TN, normally white, transmissive, 6 o'clock optimum viewing direction, 262K (6-bit) at 45% NTSC — a standard-gamut panel, not a wide-gamut screen |
| Brightness | 200 cd/m² (typical, panel factory record). The machine specification sheet for the Inspiron 15 3583 and 3593 states 220 nits typical for the fitted screen — the two figures measure different things, the panel itself versus the assembled laptop, so treat 200 cd/m² as the panel value |
| Touch | **On-cell touch** — projected capacitive touch layer bonded inside the panel, so there is no separate digitizer, no separate touch flex and no calibration step |
| Signal interface | eDP, 1 lane, eDP 1.2, 40-pin, 3.3V, 250 mA max. The same 15.6-inch HD Dell panel family also exists on a **30-pin** connector — the pin count is what distinguishes them |

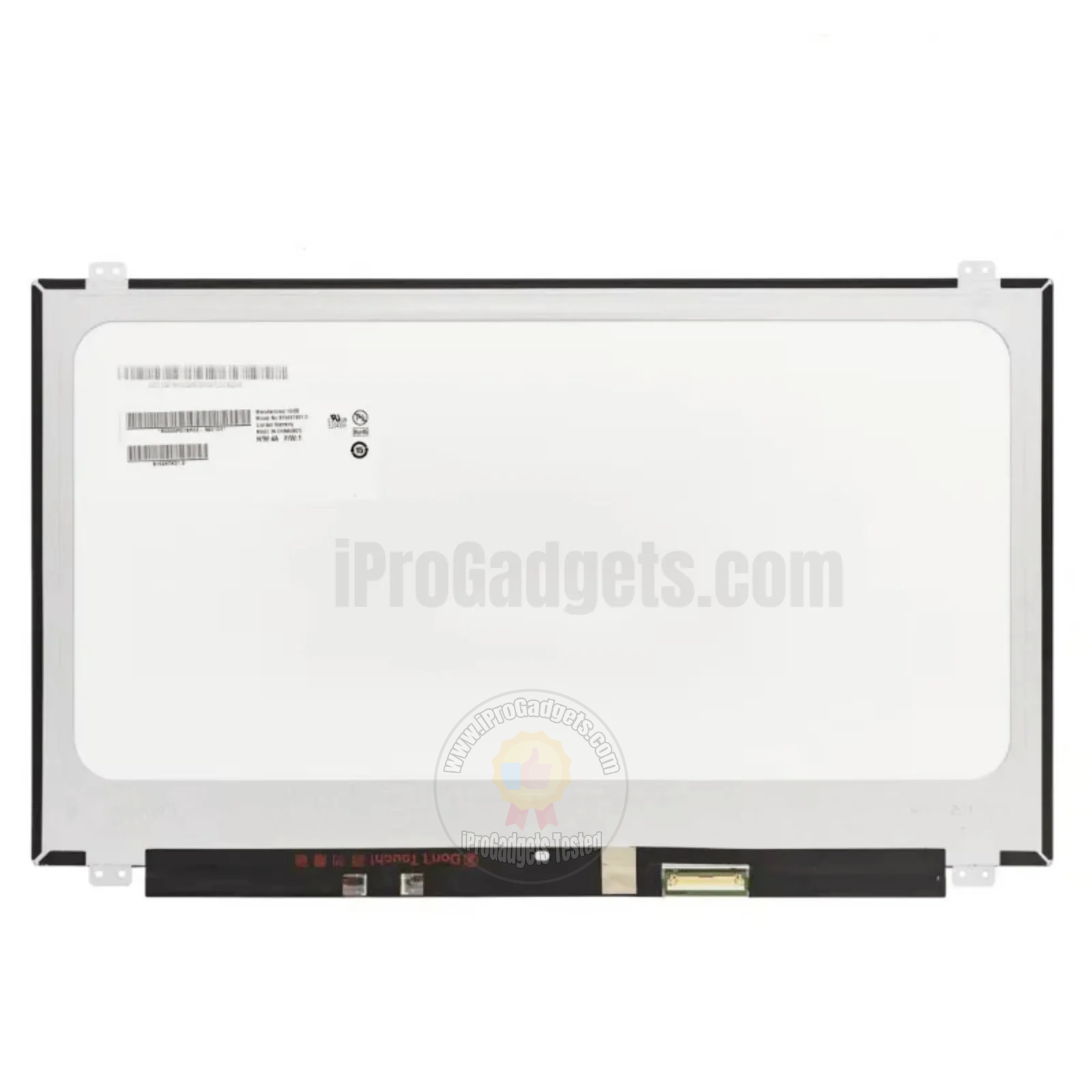

| Connector position | Bottom right, viewed from the back of the screen (panel datasheet records it as right of board) |
| Mounting | Face mounting holes, 8 pcs, on the top and bottom slugs — **top and bottom brackets**. One retailer describes this panel as having no brackets; if your machine looks different inside, send us a photo before ordering |
| Colour depth note | The Dell machine specification sheet for this family adds 400:1 contrast minimum, 25 ms response and 3.7 W maximum power consumption |
| NOT the 30-pin non-touch panel | The same Inspiron 15 and 3593 bodies shipped with 30-pin non-touch panels at the same 15.6" HD resolution. They are a different part and this one has touch |
| NOT the Full HD panel | The 1920 x 1080 panels in these machines are the part numbers FNDC6, F5KW1, 28H80 and M9P74. A different resolution is a different part and the two never interchange |
| NOT the JJ45K panel | For the Inspiron 15 5558 / Vostro 15 3558 there is a separate touch panel under the part number JJ45K, which is a different part — if your label reads JJ45K, order that one instead |
| What is not included | No bezel, no back cover, no hinges, no eDP cable, no webcam module, no adhesive and no screws |
| Condition | Brand-new, unassembled |
| Quality | iProGadgets OEM Quality |
Compatibility
| Device | Model numbers |
|---|---|
| For Dell Inspiron 15 (touch documented by Dell) | 3583 — specification sheet lists 15.6" HD touch as an option for this model |
| For Dell Inspiron 3593 (check first) | 3593 / P75F013 — published by retailers for this panel, but Dell's own specification sheet for the 3593 states touch is not supported on that model. Send us the label photo before ordering |
| For Dell Inspiron 15 (retail-published, confirm first) | 3582, 3584, 3580, 3585 |
| For Dell Inspiron 15 (retail-published, confirm first) | 5551, 5555, 5558, 3552, 3555, 3558, 5559, 3565, 3567 |
| For Dell Latitude (retail-published, confirm first) | Latitude 3570, 3580, 3590 |
| Same panel, other brand | For Lenovo IdeaPad 310 / 320 / 330 Touch machines — service part 5D10K81094, panel B156XTK01.0, which is this same panel |
| Where to confirm fitment | Send the machine model, the 7-character service tag on the bottom cover, or a photo of the label on the back of the screen you are removing — we will check it against our stock before dispatch |
Before We Ship — Please Send Us These 3 Details
Laptop screens can differ between revisions of the same model, and this Dell family in particular shipped with several different panels behind the same model number, so the listing alone cannot always tell us which one is inside your laptop. After you place the order we will contact you for the three items below — please send them so we can confirm the fitment and ship the correct, fully compatible screen straight away:
- A photo of your computer. A clear photo of the laptop itself, plus the model label on the bottom cover and the 7-character Dell service tag if you have it.
- Touch or non-touch, resolution and refresh rate. Tell us whether your screen is a touch screen or a non-touch screen, its resolution, and its refresh rate in Hz. If you are not sure, just send the model number and we will check it for you.
- Photos of your old screen. Once the machine is opened, a full photo of the back of the old screen and a close-up of the label or barcode sticker on it. That label carries the exact panel or part number, which removes any doubt about which screen you need — on this machine it is the single most important detail.
We check your photos against our stock before dispatch. If something does not match, we will contact you first instead of sending a part that may not fit. Once your details are confirmed, we arrange shipment within 1 to 3 business days. Thank you for helping us get it right.
Installation Notes
- Clean the flex cable with alcohol before installation and confirm that it is well connected.
- Do not pull, tear or push on the flex cable, be careful during installation.
- Before installing the screen, please remove the battery in advance.
- Please tap the screen carefully, because the screen is too fragile to damage.
- This is an on-cell touch panel, so there is no separate digitizer to align and no touch calibration step — the touch layer is bonded inside the panel and works as soon as it is powered on. The touch signal travels through the main display cable, so seat the connector fully and squarely before the first power-on.
- Ghost touch, running touch or inverted touch after fitting are almost never panel faults. Reseat the display cable and check the digitizer connection first, and contact us before opening a return.
Quality Control
Strictly tested by the iProGadgets QC Team — every unit is double tested before shipping: the display is checked for dead pixels and uniformity, the backlight is checked for brightness and flicker, the touch layer is checked for response across the whole surface, and the connector and flex are checked for fit. Only panels that pass both tests are packed. Quality wording: iProGadgets OEM Quality.
Shipping and Delivery
We ship within 1 to 3 business days after the order is confirmed. Each screen is wrapped in protective foam and packed in a strong corrugated carton to survive transit. We ship worldwide with tracked shipping so you can follow the parcel from dispatch to delivery.
Returns & Warranty
Every panel is covered by a 30-day return window on unused, uninstalled parts. Our warranty is valid until installed — once the screen is fitted we cannot take it back, so please confirm the fitment with us before installation. If the panel arrives damaged or does not match what you ordered, contact us within 30 days and we will make it right.
Questions before you order? Send us the machine model, your Dell service tag, or a photo of the label on the back of the screen you are replacing, and we will confirm the fitment before you buy. Email sales@iProGadget.com — we reply within one business day.
Before We Ship — Please Send Us These 3 Details
Laptop, all-in-one and desktop PC screens can differ between revisions of the same model, so the listing alone cannot always tell us which panel is inside your machine. After you place the order we will contact you for the three items below — please send them so we can confirm the fitment and ship the correct, fully compatible screen straight away:
- A photo of your computer. A clear photo of the laptop itself, plus the model / service label on the bottom cover (or the model name shown in Settings → About).
- Touch or non-touch, resolution and refresh rate. Tell us whether your screen is a touch screen or a non-touch screen, its resolution, and its refresh rate in Hz. If you are not sure, just send the model number and we will check it for you.
- Photos of your old screen. Once the machine is opened, a full photo of the back of the old screen and a close-up of the label or barcode sticker on it. That label carries the exact panel part number, which removes any doubt about which screen you need.
We check your photos against our stock before dispatch. If something does not match, we will contact you first instead of sending a part that may not fit. Once your details are confirmed, we arrange shipment within 1 to 3 business days. Thank you for helping us get it right.
Installation Notes
- Clean the flex cable with alcohol before installation and confirm that it is well connected.
- Do not pull, tear or push on the flex cable, be careful during installation.
- Before installing the screen, please remove the battery in advance.
- Please tap the screen carefully, because the screen is too fragile to damage.
Quality Control
Strictly tested by the iProGadgets QC Team — every unit is double tested before shipping and ships in good working order. After receiving the part, please check the appearance and test it first: connect the new part to the motherboard for a functional test before full installation, and only install once everything works. We are not responsible for any installation mistakes — if you are not experienced with screen replacement, have the part fitted by a professional repair shop.
Shipping
We ship worldwide. Orders are dispatched within 1 to 3 business days, and every package carries a tracking number you can follow on the order page. Delivery typically takes 7 to 10 days after dispatch.
Returns & Warranty
30-day returns on unused, uninstalled parts. The warranty is valid until installed — once a screen has been fitted, the return window no longer applies, which is why we ask you to test before installation.
FAQs
How do I know whether my machine has this 40-pin touch panel or the 30-pin non-touch panel?
They look identical from the front and this is the most common mistake on this machine. Read the label on the back of the screen you are removing: K2V59 means this on-cell touch panel, while a 30-pin part is a different panel. Two physical checks if the label is worn: count the pins on the connector — 40 pins means touch, 30 means non-touch; and look at the surface in a bright room — glossy means touch, matte means non-touch. Send us the photo and we will confirm before dispatch.
My machine is a Dell Inspiron 3593 — from Dell says it has no touch screen. Why does this listing say it fits?
Because Dell's two specification sheets disagree, and we would rather tell you that than hide it. Dell's setup guide for the Inspiron 15 3583 lists 15.6" HD touch as an option and states Touch options: Supported. Dell's setup guide for the Inspiron 3593 lists only HD and FHD and states Touch options: Not supported. Every retailer publishes this panel for the 3593, and a lot of 3593 units in the field do carry it — so if yours has a glossy screen with a 40-pin connector, this is the part. If your 3593 screen is matte, it is the 30-pin non-touch panel instead and you should not buy this one. Send us the label photo and we will tell you honestly which you need.
Is this screen glossy or matte, and does the touch layer come as a separate part?
It is glossy — Dell's machine specification sheet for this family reads Glossy with anti-glare as an option, so if you are used to a matte screen expect more reflection and more colour saturation after this replacement. The touch layer is bonded inside the panel, on-cell, so there is no separate digitizer, no touch flex cable and nothing to align or calibrate. One note on brackets: most sources for this panel say top and bottom brackets, which matches the AUO panel record of eight face mounting holes on the top and bottom slugs, but one retailer describes it as having no brackets. If your machine looks different once opened, send us a photo before fitting.
