Replacement LCD Screen Display For Lenovo ThinkPad X1 Carbon 6th Gen T490 T490s 00NY679 14.0 inch WQHD Panel
iProGadgets OEM Repair Parts for Lenovo ThinkPad X1 Carbon 6th Gen T490 T490s 00NY679 14.0 inch WQHD Laptop Screen Replacement — Quick Answers

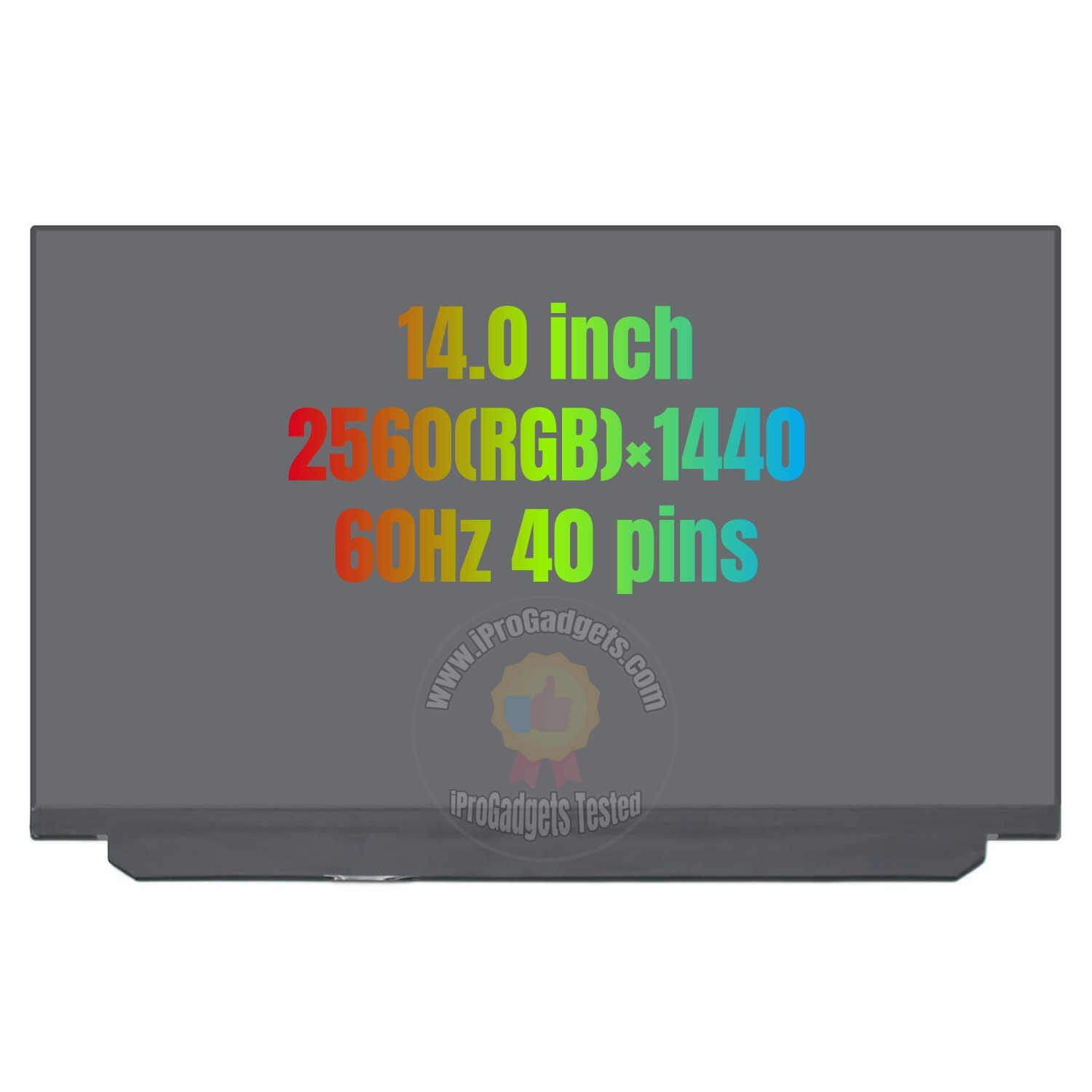

Quick answer: this is a brand-new 14.0 inch WQHD replacement LCD panel — the 00NY679 screen for the ThinkPad X1 Carbon 6th Gen, T490, T490s and P43s, 2560 x 1440 at 60 Hz on a 40-pin eDP connector, the glossy 500 cd/m² panel covering 100% Adobe RGB and handling Dolby Vision HDR, double tested before shipping and covered by a 30-day return window on unused, uninstalled parts. It measures 315.05 x 195.6 mm and carries no mounting brackets, and it is supplied as the bare panel — no touch layer, no digitizer, no bezel. Two things decide this order. First, the surface: these machines shipped with a 14.0 inch WQHD anti-glare panel as well, and that one is a different part number at a different brightness — this listing is the glossy screen, so if the front of your old panel is matte, tell us before ordering. Second, the resolution: the same laptops also shipped with a Full HD screen on a smaller connector, which is not interchangeable with this panel. Send us the code from the label on the back of the screen you are removing and we will confirm exactly which panel we are shipping before dispatch.
- Fit: The 14.0 inch WQHD panel coded 00NY679 — the glossy 500 cd/m² 40-pin eDP screen with 100% Adobe RGB that the ThinkPad X1 Carbon 6th Gen, T490, T490s and P43s were ordered with in their WQHD configuration
- Panel: LTPS TFT-LCD IPS-class panel (AHVA, normally black, transmissive) with a QLED edge-lit backlight and the LED driver on the panel board, a gloss front with a 3H hard coating, 100% Adobe RGB, 500 cd/m², and no mounting brackets
- Testing: every unit is double tested before shipping — display, and fitment against the machine it is sold for
Technical Specifications
| Item | Detail |
|---|---|
| Part number | 00NY679 — the service part number for this panel in the WQHD configuration of the ThinkPad X1 Carbon 6th Gen, T490, T490s and P43s. Read it off the label on the back of the screen you are removing and compare it with this one |
| Compatible part numbers | 00NY680, 01YU646, SD10M67988 and SD10M67990 are quoted by suppliers as the same 500 cd/m² glossy WQHD panel from a second factory, so any of them can stand in for 00NY679. They are supplier cross-references rather than our own stock code, and one distributor catalogues 00NY680 at a different brightness, so we do not promise a specific one — read your label code and send it to us |
| Screen size | 14.0 inches diagonal (35.6 cm), 16:9 |
| Resolution | 2560 x 1440 px (WQHD), 210 PPI |
| Refresh rate | 60 Hz |
| Panel technology | LTPS TFT-LCD, IPS-class wide-viewing-angle panel (AHVA), normally black, transmissive, 16.7M colours — this is the panel design behind the WQHD display option that Lenovo lists with Dolby Vision HDR on the X1 Carbon 6th Gen, T490, T490s and P43s |
| Brightness | 500 cd/m² typical — the high-brightness HDR bin of this panel. If your machine was ordered with the anti-glare WQHD screen instead, that panel is specified at 300 cd/m²: a replacement from the other bin looks dimmer or brighter than the screen it replaces, which is a production difference and not a fault |
| Colour gamut | 100% Adobe RGB, about 91% of DCI-P3 and 100% of sRGB |
| Surface finish | Glossy (Haze 0%) with a 3H hard coating. One factory record lists this panel as matte; Lenovo's own display specification and the other three factory records all say gloss, so order on the understanding that this is the glossy screen. If you need the anti-glare version, that is a different part number |
| Touch | No — this is the non-touch panel supplied on its own, with no touch layer and no digitizer glass. If the screen you are removing responds to your finger, you need the touch assembly instead and this panel is not it |
| Signal interface | eDP, 4 lanes, 40-pin connector, HBR1 (2.7 Gbit/s per lane), 3.3 V — the plug is about 25 mm across. Count the contacts on the flex of your old screen before ordering: a 30-pin Full HD panel is a different part |

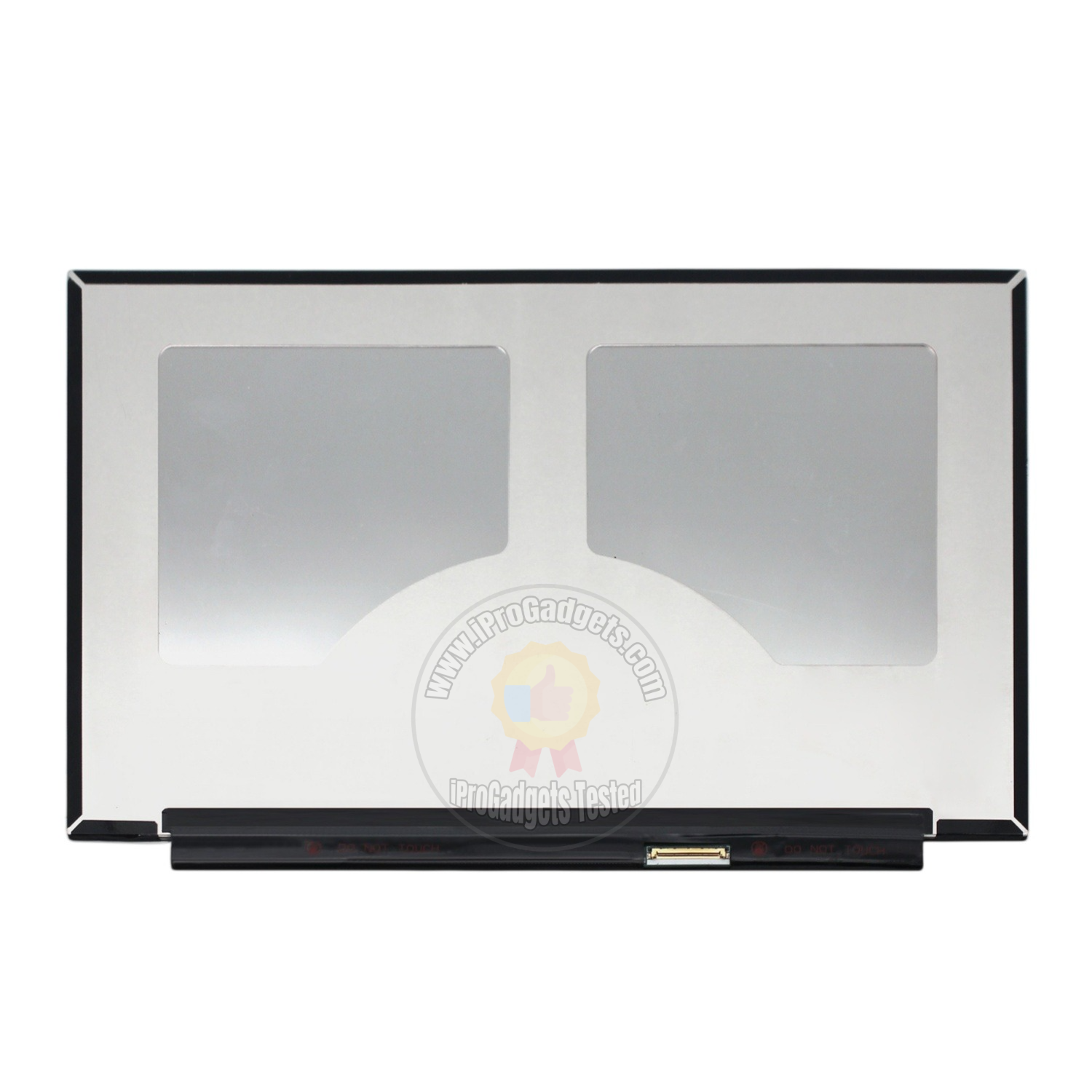

| Connector position | Bottom right, viewed from the back of the panel |
| Outline and mounting | 315.05 mm wide x 195.6 mm high x 2.4 mm deep, active area 309.35 x 174.01 mm, slim profile. No screw brackets: the panel is held by the bezel assembly, and we supply it on its own, so have fresh adhesive ready before you start |
| NOT the anti-glare WQHD panel | The X1 Carbon 6th Gen, T490, T490s and P43s were also orderable with a 14 inch WQHD anti-glare panel at 300 cd/m², coded 00NY681 (also 00NY664 and 01YN128). It is the same size, the same 2560 x 1440 resolution and the same 40-pin connector, and it differs only in surface and brightness — which is exactly why a photo of the picture cannot separate them. This listing is the glossy part. If the front of the screen you are removing is matte, we will point you at the other code |
| NOT the Full HD panel | The same families also shipped with a 14 inch Full HD 1920 x 1080 panel on a 30-pin connector. A 30-pin panel and a 40-pin panel are not interchangeable, and a Full HD machine does not drive this WQHD screen correctly. Check the pin count on your old flex before ordering |
| NOT a touch screen and not a whole display assembly | This is the bare non-touch panel — no touch layer, no digitizer, no display bezel, no rear cover, no hinges and no camera module. If you need the complete display assembly or a touch screen, tell us before ordering |
| Condition | Brand-new, unassembled |
| Quality | iProGadgets OEM Quality |
Compatibility
| Device | Model numbers / part codes |
|---|---|
| Machine coverage — confirmed | For ThinkPad X1 Carbon 6th Gen (20KG, 20KH), ThinkPad T490 (20N2, 20N3, 20Q9, 20QH, 20RY, 20RX), ThinkPad T490s (20NX, 20NY) and ThinkPad P43s (20RH, 20RJ) — each of those machines lists a 14 inch WQHD 2560x1440 500 cd/m² glossy Dolby Vision HDR display option in its own specification sheet, and that option is this panel. This is the confirmed fitment for the listing |
| Machine coverage — supplier-quoted | For ThinkPad X1 Carbon 7th Gen (20QD, 20QE, 20R1, 20R2) and X1 Carbon 8th Gen (20U9, 20UA) are sold by suppliers as taking this panel, and the equivalent code 01YU646 is quoted for the 7th Gen. That equivalence comes from supplier cross-lists rather than from the document for your own machine, so send us your label code and we will check it honestly before dispatch |
| Machine coverage — supplier data conflicts | For ThinkPad T480 (20L5, 20L6) and T480s (20L7, 20L8) are published by some suppliers as taking this screen, but the specification for the T480s records its WQHD option at 300 cd/m² anti-glare, which does not match this glossy 500 cd/m² panel. Treat those two as unconfirmed and send us the code from your old panel rather than ordering on the strength of a retailer list |
| NOT the Full HD panel | The X1 Carbon and T-series machines also shipped with 14 inch Full HD 1920x1080 panels on a 30-pin connector. Different resolution, different pin count, different part — a Full HD machine will not drive this WQHD panel |
| NOT the X1 Carbon 5th Gen or 1st Gen | Those two generations take a different panel code and a different display cable, so this screen is not the part for them. If your machine is an X1 Carbon 5th Gen (20HQ, 20HR, 20K3, 20K4) or a 1st Gen, check the label before ordering and we will match you to the right code |
| NOT a touch assembly or a full display | This listing is the non-touch screen panel on its own. Touch screens for these machines are separate assemblies with the digitizer built in, and they are not interchangeable with this bare panel |
Before We Ship — Please Send Us These 3 Details
Laptop, all-in-one and desktop PC screens can differ between revisions of the same model, so the listing alone cannot always tell us which panel is inside your machine. After you place the order we will contact you for the three items below — please send them so we can confirm the fitment and ship the correct, fully compatible screen straight away:
- A photo of your computer. A clear photo of the laptop itself, plus the model / service label on the bottom cover (or the model name shown in Settings → About).
- Resolution, surface and pin count. Tell us whether your screen is 2560 x 1440 or 1920 x 1080, whether the front is glossy or matte, and whether it is a touch screen. If you are not sure, send a photo of the front and of the back of the panel and we will read it for you.
- Photos of your old screen. Once the machine is opened, a full photo of the back of the old screen and a close-up of the label or barcode sticker on it. That label carries the exact panel part number, which removes any doubt about which screen you need.
We check your photos against our stock before dispatch. If something does not match, we will contact you first instead of sending a part that may not fit. Once your details are confirmed, we arrange shipment within 1 to 3 business days. Thank you for helping us get it right.
Installation Notes
- Clean the flex cable with alcohol before installation and confirm that it is well connected.
- Do not pull, tear or push on the flex cable, be careful during installation.
- Before installing the screen, please remove the battery in advance.
- Please tap the screen carefully, because the screen is too fragile to damage.
Quality Control
Strictly tested by the iProGadgets QC Team — every unit is double tested before shipping and ships in good working order. After receiving the part, please check the appearance and test it first: connect the part to the motherboard for a functional test before full installation, and only install once everything works. We are not responsible for any installation mistakes — if you are not experienced with screen replacement, have the part fitted by a professional repair shop.
Shipping
We ship worldwide. Orders are dispatched within 1 to 3 business days, and every package carries a tracking number you can follow on the order page. Delivery typically takes 7 to 10 days after dispatch.
Returns & Warranty
30-day returns on unused, uninstalled parts. The warranty is valid until installed — once a screen has been fitted, the return window no longer applies, which is why we ask you to test before installation.
FAQs
How do I check that 00NY679 is the screen I need?
Open the machine, lay the screen face down and read the barcode label on the back of the panel. This listing answers for the code 00NY679 and for the equivalent codes quoted alongside it, and the panel should be 2560 x 1440, 14.0 inches, a glossy front and a 40-pin connector at the bottom right, with no screw tabs anywhere on the frame. If the label carries a different number, or the panel you are removing has a matte front, send us a photo of that label and we will tell you honestly which part you need instead of shipping the wrong screen.
What is the difference between 00NY679 and 00NY681?
They are the same size, the same 2560 x 1440 resolution, the same 40-pin connector and the same no-bracket slim frame. The difference is the front surface and the brightness: 00NY679 is the glossy 500 cd/m² screen and 00NY681 is the anti-glare 300 cd/m² screen. Both were orderable in the X1 Carbon 6th Gen, the T490, the T490s and the P43s, so the safest test is to look at the screen you are removing — a matte front that scatters a light source means you need the anti-glare code, a mirror-like front means you need this one. Send us a photo and the label code and we will confirm before dispatch.
Will this panel fit my machine if it has the Full HD screen?
No. The 14 inch Full HD panels used in these families sit on a 30-pin connector, while this WQHD panel uses a 40-pin connector — the two plugs are physically different widths and the machine does not drive the wrong resolution correctly. Count the contacts on the flex of the screen you are removing: about 20 mm across is the 30-pin Full HD panel and about 25 mm is the 40-pin panel in this listing. If you have the Full HD machine, tell us and we will match you to the right screen.
My laptop is a T480s (or a T480) — is this the right screen?
Treat this with care. Some suppliers publish this panel for the T480 and T480s, but the machine specification for the T480s records its WQHD option at 300 cd/m² anti-glare, which is not this glossy 500 cd/m² screen — so the supplier lists disagree with the machine document. Place the order, send us a photo of the label on the back of your old panel, and we will confirm against your machine before we dispatch. If it turns out to be a different part we will tell you rather than ship one that does not fit.
